Product Description

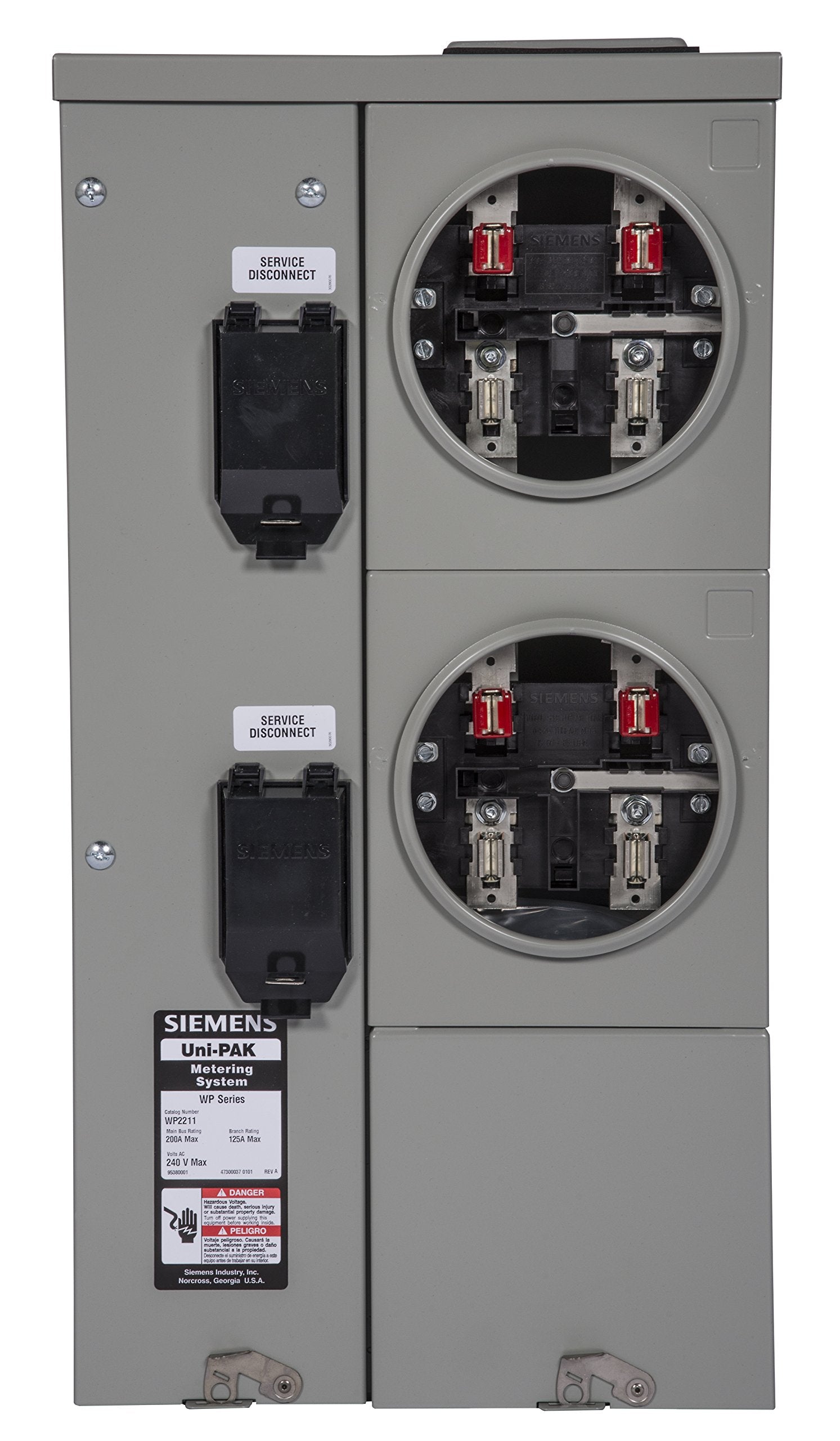

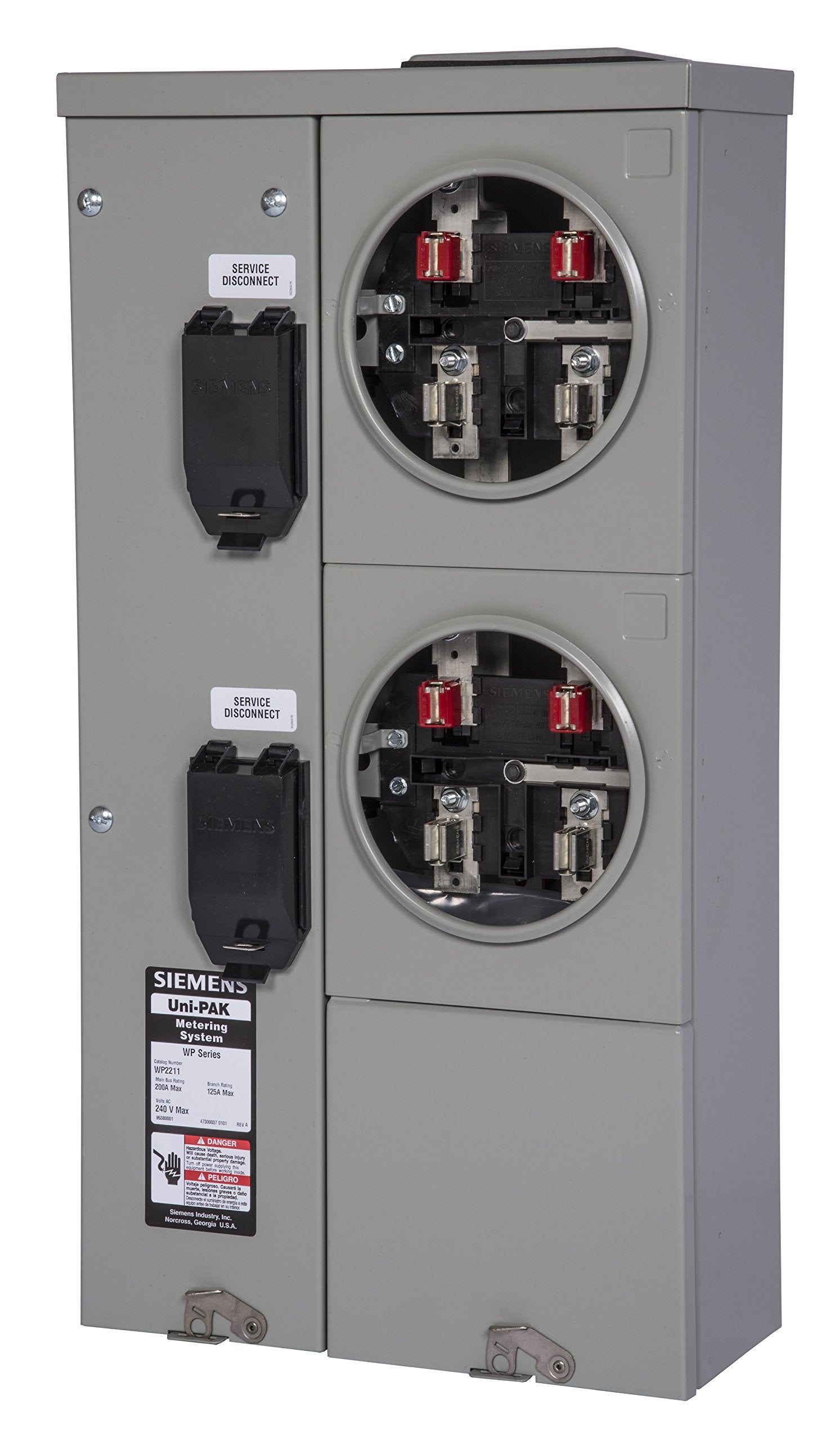

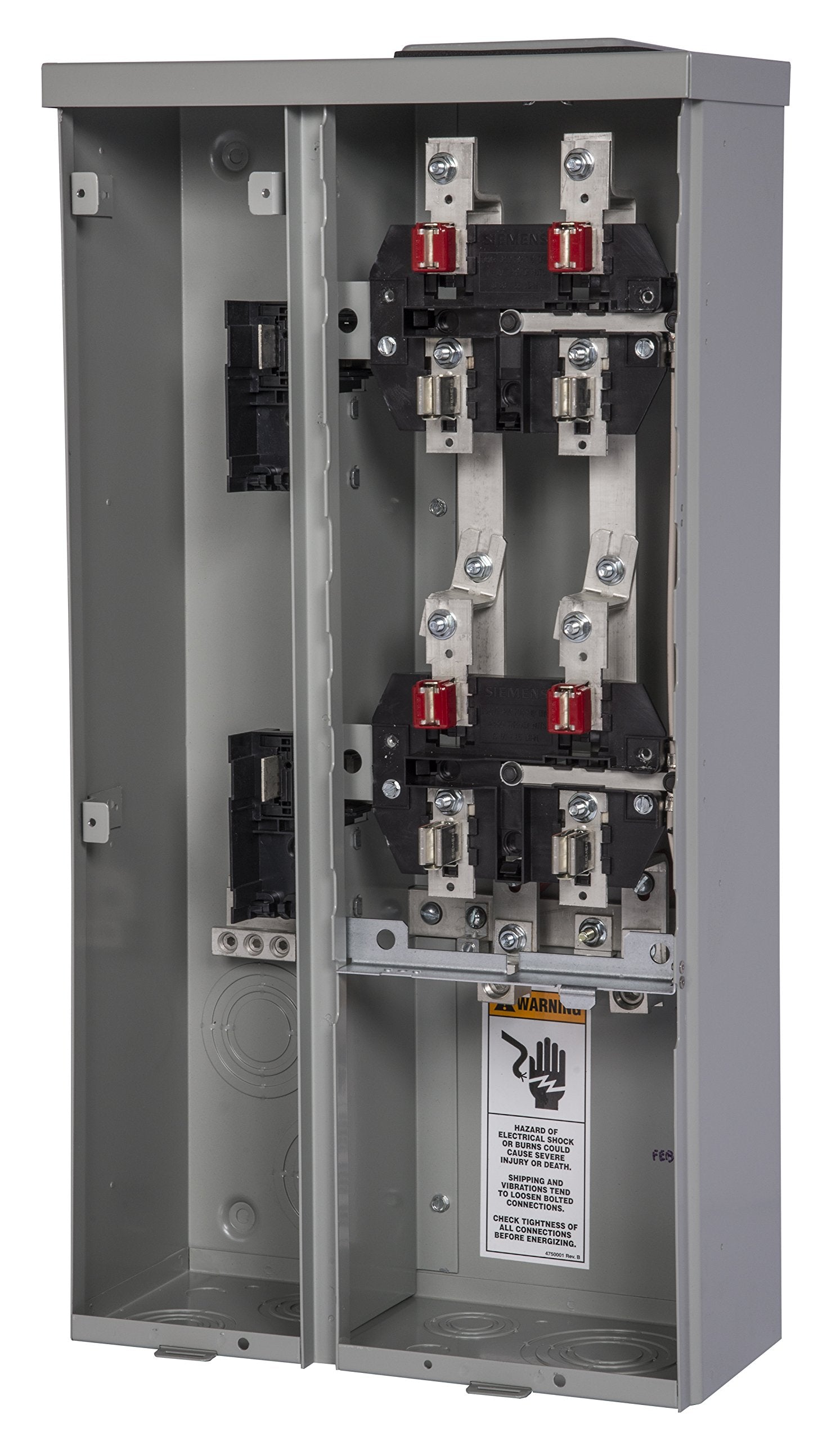

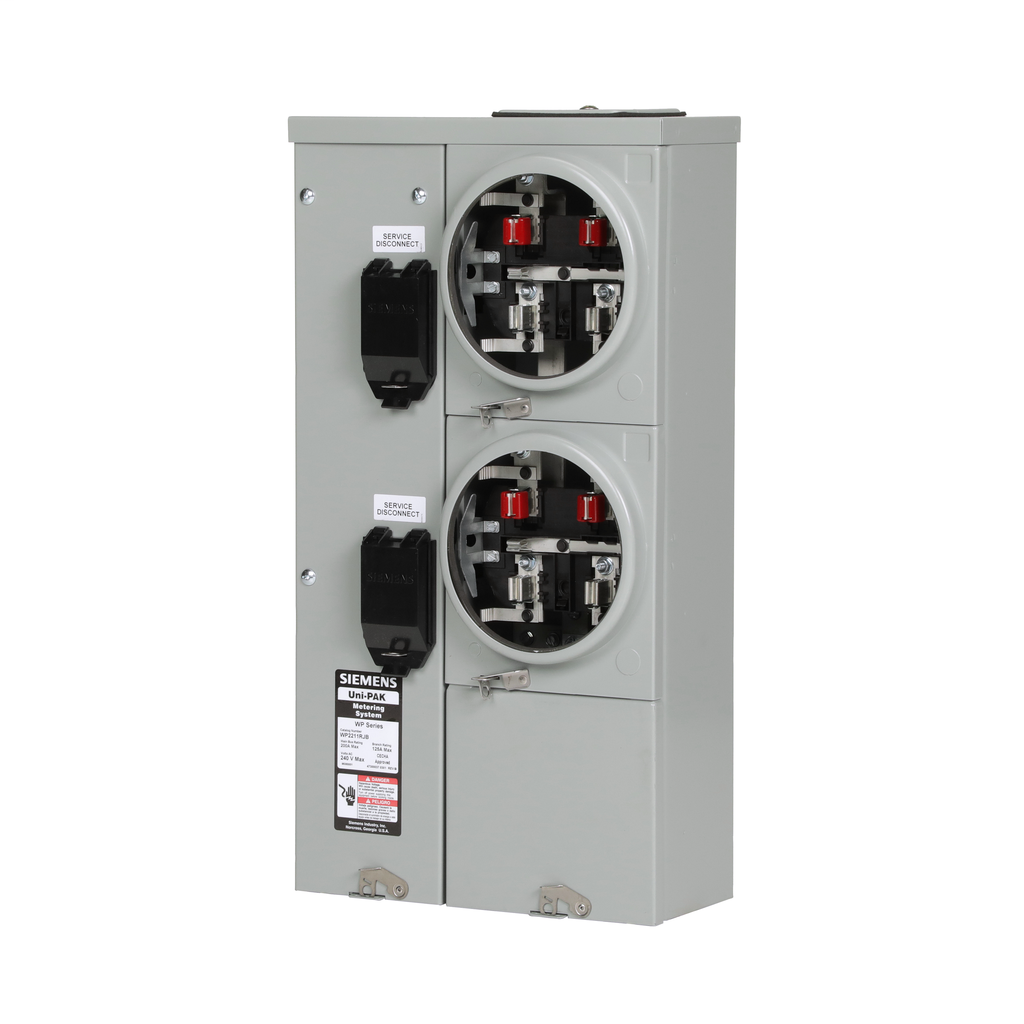

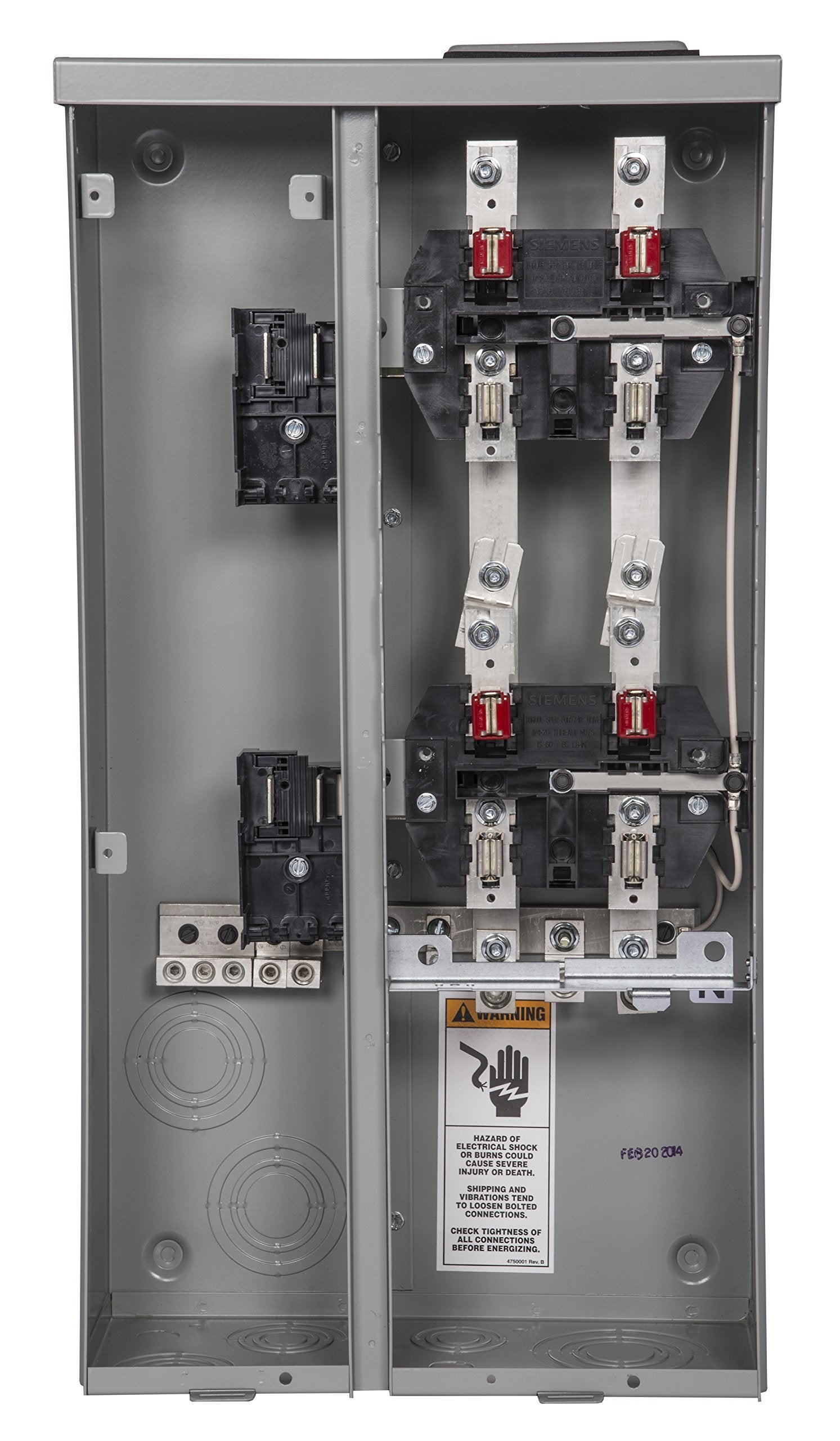

Siemens WP2211RJB is a Uni-PAK low-voltage PAK metering pack rated 120/240 V and 200 A for single-phase service. The ringless, surface-mount enclosure provides top and bottom cable entry, insulated 3x2 stud terminals, and seven cutouts to accept multiple meter and socket configurations. The unit includes a factory-installed horn bypass and is intended for multi-family service entrance and garden-style wall-mounted metering applications.
- Rated 120/240 V, 200 A, single-phase with ringless, wall-mounted Uni-PAK enclosure
- Insulated 3x2 stud terminals, top and bottom cable entry, seven cutouts for various meter/socket configurations
- Factory-installed horn bypass; UL listed standards and provisions for 4/5-jaw meter sockets and a 5th jaw kit
Product Highlights
Uni-PAK 2-gang, 200 A 120/240 V PAK metering pack with ringless enclosure, insulated stud terminals, top/bottom cable entry, seven cutouts, and horn bypass for multi-family service entrance use.
Product Information
Standard Information
-
Brand: SIEMENS
-
Manufacturer Part Number: WP2211RJB
-
Country of Origin: US
Technical Specifications
-
Brand: Siemens
-
Manufacturer Part Number: WP2211RJB
-
Sub Brand: Uni-PAK
-
Type: PAK metering / Meterstack (2-position)
-
Voltage Rating: 120/240 V
-
Amperage Rating: 200 A
-
Phase: 1 Phase (single phase)
-
Enclosure Type: Ringless
-
Mounting Type: Surface (wall) mounting
-
Cable Entry: Top and bottom
-
Terminals: Insulated 3 x 2 stud terminals
-
Number Of Cutouts: 7
-
Cutout Sizes: Multiple configurations (various cutout sizes as listed in product data)
-
Dimensions (HxWxD): 7.25 x 14.05 x 27.14 inches
-
Standards / Certifications: UL-50, UL-67, UL-414 (see notes)
-
Features: Horn bypass factory installed; barriered, sealable unmetered compartments; pre-bussed; removable knock-out plate for back exit
-
Meter Jaws: 4- or 5-jaw meter sockets (5th jaw kit available/included on some configurations)
-
Wire Size Range: Accepts 6 AWG to 300 kcmil (per meter socket configuration)
-
Interrupt Rating: 65 kA to 100 kA class ratings reported (see product data for configuration)
-
Finish / Material: Zinc coated steel with ANSI No. 61 light gray electro-deposited paint
-
Application: Service entrance equipment for multi-family, small apartment, and small commercial buildings
-
Service Termination: Accepts overhead or underground service terminations
-
Branch Wiring Exits: Bottom and rear branch wiring exits (neutral and ground at bottom only)
-
Additional Provisions: Provision for tenant main breakers and multiple breaker types (QP, QPH, HQP, MP series); fifth jaw field-installable
