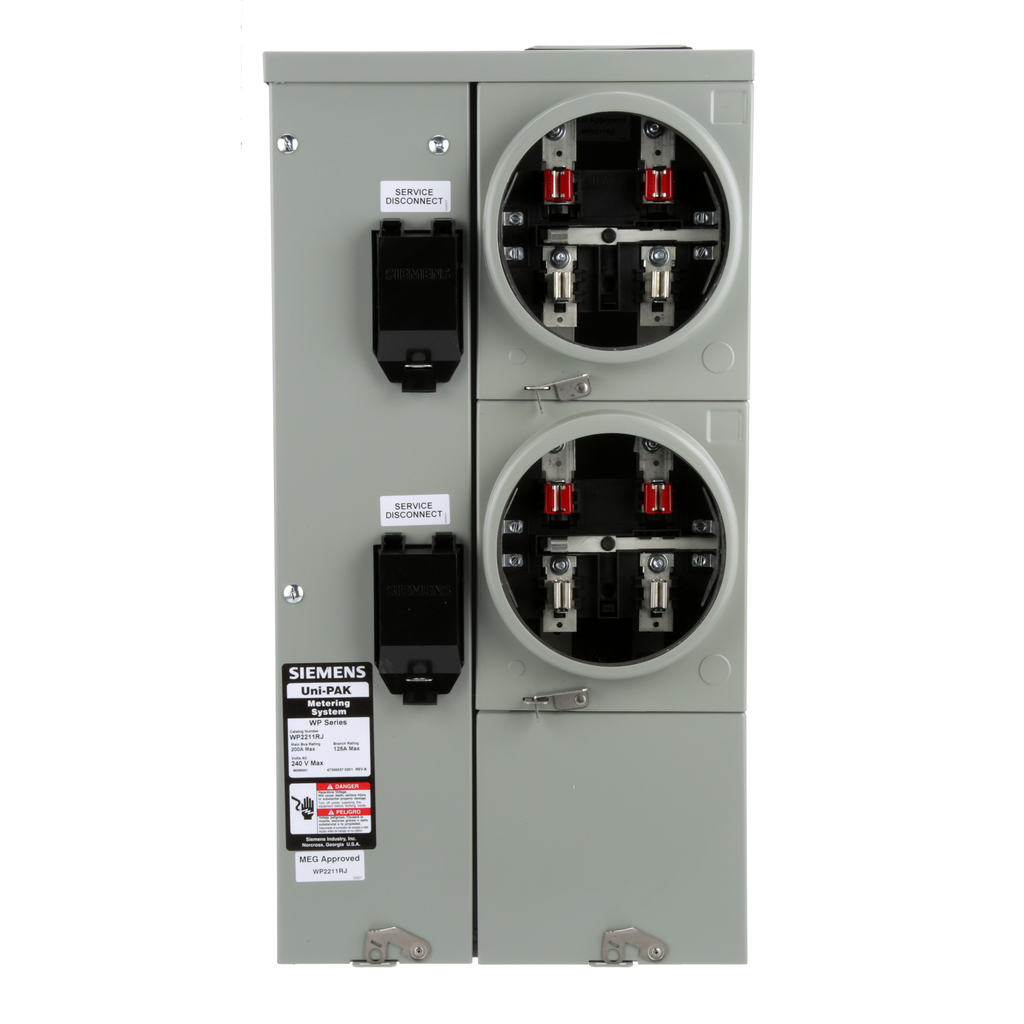

Siemens WP2211RJ 120/240 VAC 200 Amp 1-Phase 3-Wire Overhead/Underground Feed Direction Meter Center

Product Description

Siemens WP2211RJ is a 120/240 Volt, 200 Amp 1-Phase meter center suitable for overhead or underground feed. This unit is part of the UNI-PAK series and features a ringless design for enhanced utility. The product supports various cutout sizes and includes terminal studs for easy wiring. It is suitable for service entrance equipment applications and offers top or bottom cable entry.

• 200 Amp capacity
• Multiple cutout configurations
• Insulated and wall-mounted design

Product Highlights

This meter center combines functionality with ease of installation, making it ideal for multi-family settings.

Product Information

Standard Information

• Brand: Siemens
• MPN: WP2211RJ

Technical Specifications

• Type: 7-Cutout 3-Wire Insulated Low Voltage
• Voltage Rating: 120/240 VAC
• Amperage: 200 A
• Enclosure: Ringless
• Feed Type: Top/Bottom
• Dimensions: 27.14 in H x 14.05 in W x 7.25 in D
• Number of Phases: 1 Phase
• Socket Amps: 125 A
• Socket Jaws: 5
• Number of Meter Sockets: 2
• Country of Origin: US
