Product Description

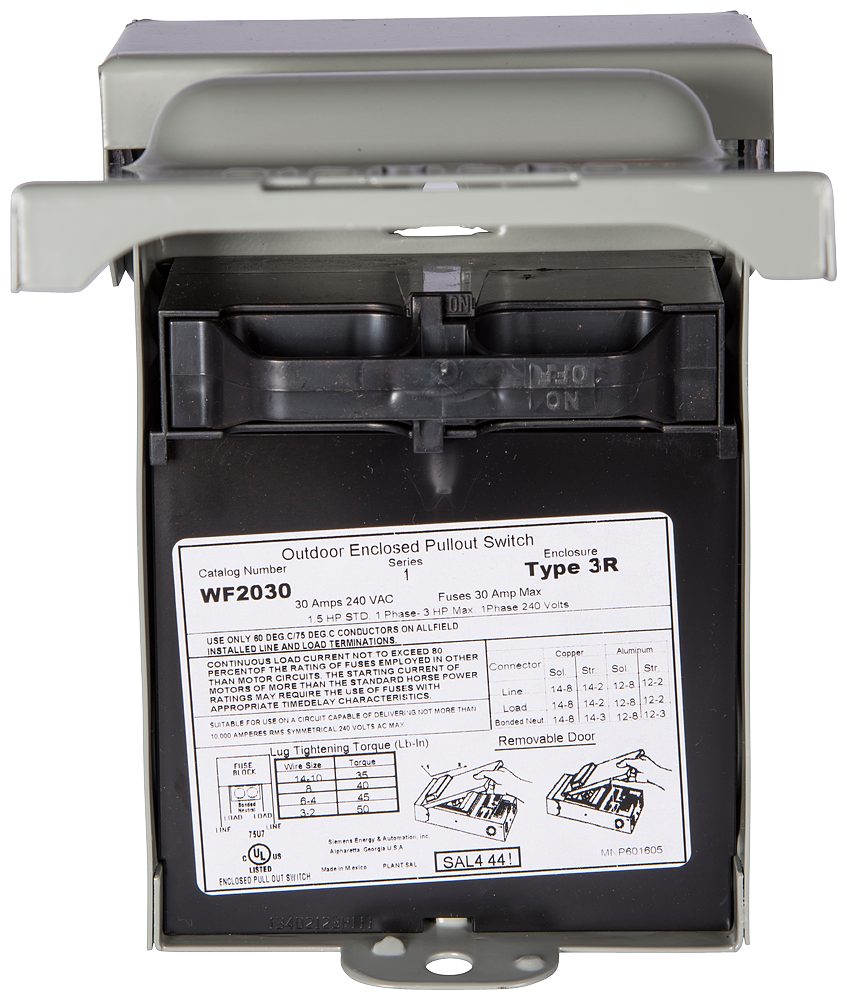

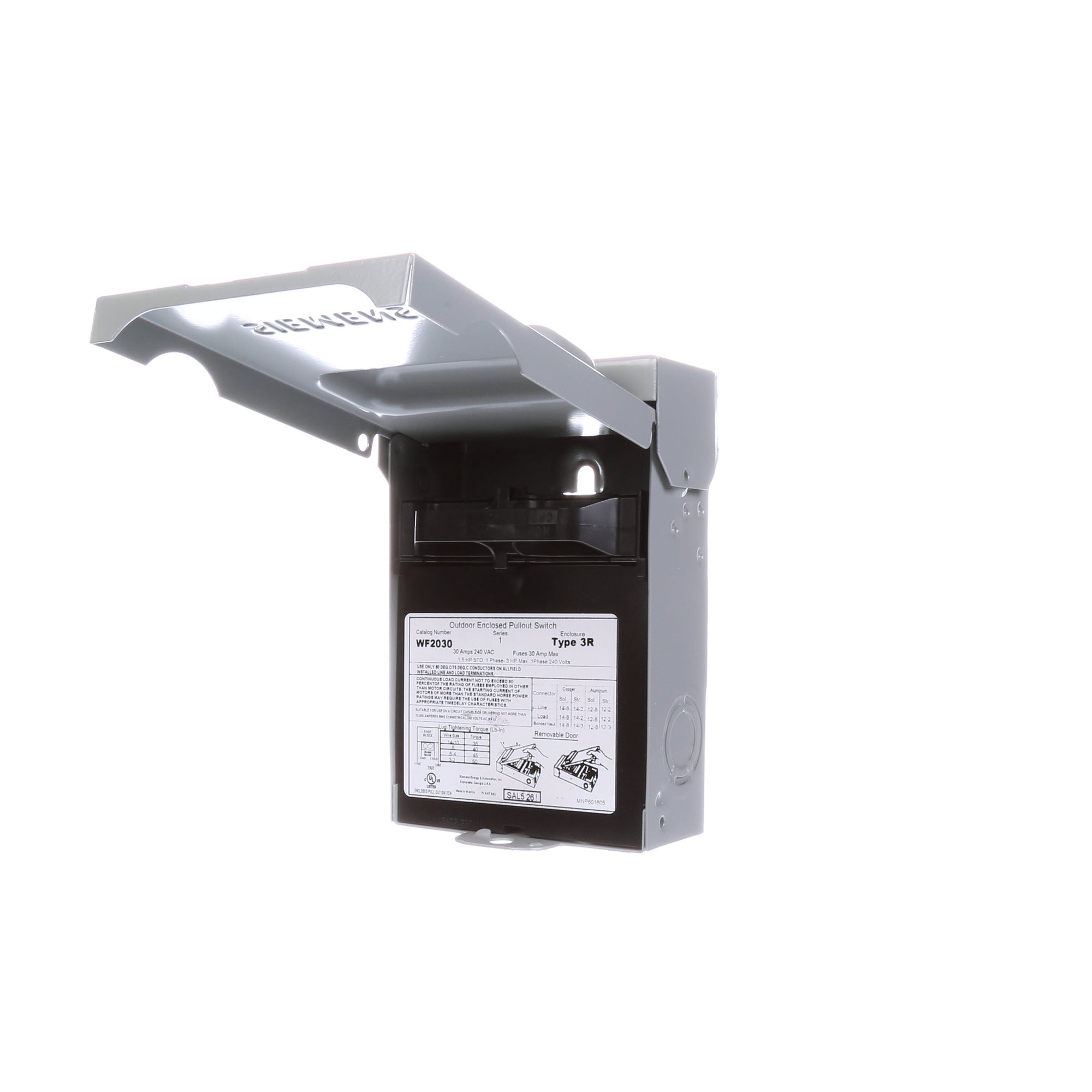

The Siemens WF2030 is a fusible pullout AC disconnect rated for thirty amps and designed for a voltage of two hundred forty volts. This product is intended for use with one-phase electrical systems and can handle up to three horsepower. Ideal for electrical distribution applications, this disconnect is equipped with a NEMA three R enclosure, suitable for both indoor and outdoor use.
- Rated for two hundred forty volts.
- Amperage rating of thirty amps.
- Features a plug-in connection for easy installation.
Product Highlights
The WF2030 model features a thermal magnetic trip and is UL forty-eight nine certified for safety and performance. It is engineered to provide reliable service in various electrical distribution settings.
Product Information
Standard Information
-
Catalog Number: WF2030
-
Brand: Siemens
Technical Specifications
-
Voltage Rating: 240 Volt
-
Amperage Rating: 30 Amp
-
Number of Poles: 2 Pole
-
Interrupt Rating: 10 AIC
-
Trip Type: Thermal Magnetic
-
Enclosure Type: NEMA 3R
-
Country of Origin: Mexico
-
Weight: 2.280 lb
-
Dimensions: 13.85 in Length x 7.500 in Width x 3 in Height
