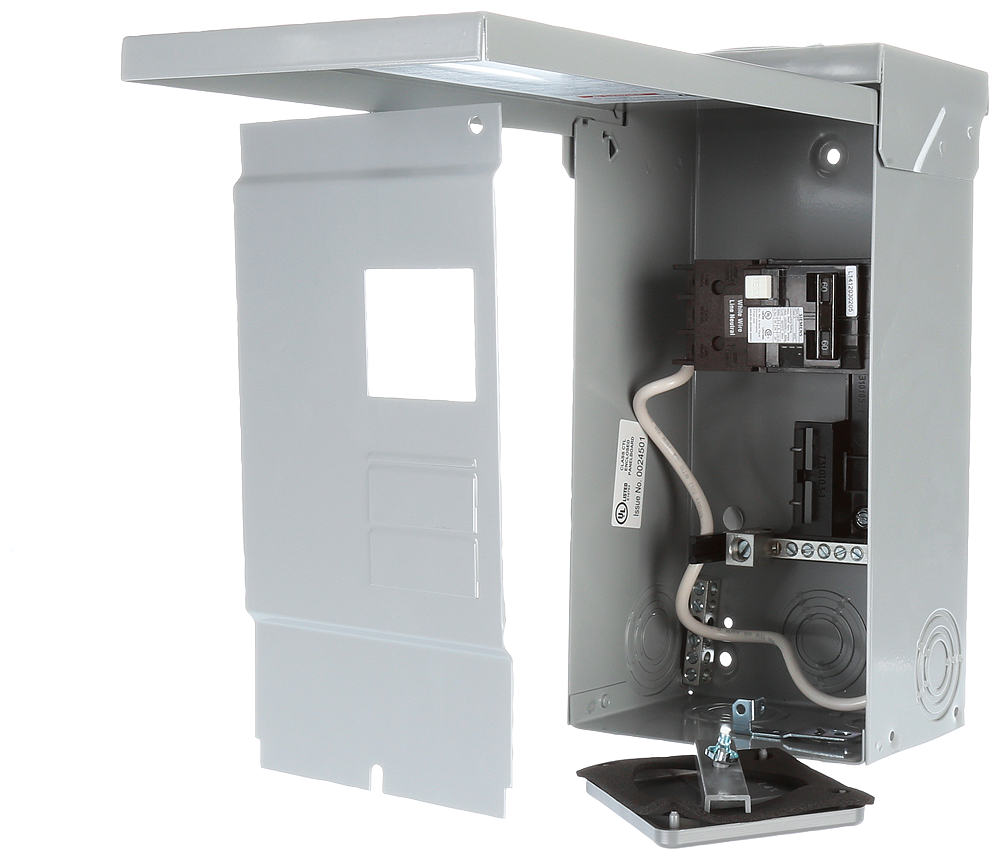

Siemens W0408L1125SPA60 Main Lug Load Center, 120/240 VAC, 125 Amps, Single-Phase, 4 Space, NEMA 3R

Product Description

The Siemens W0408L1125SPA60 is a main lug load center designed for single-phase residential applications. It supports 120/240 VAC and delivers up to 125 amps. This load center features four spaces and is rated for a 100,000 amp interrupt. The enclosure is built to NEMA 3R standards, providing protection against outdoor elements.

• Rated for 125 amps and supports 120/240 VAC
• Surface mount design with four spaces
• Integrates up to eight circuits with provisions for additional GFCI breakers

Product Highlights

This load center is ideal for various residential power management needs. It includes factory-installed ground bars and meets UL standards.

Product Information

Standard Information

• Brand: Siemens
• MPN: W0408L1125SPA60

Technical Specifications

• Amperage Rating: 125 A
• Voltage Rating: 120/240 VAC
• Number of Poles: 2
• Number of Spaces: 4
• Interrupt Rating: 100,000 A
• Dimensions: 12-1/4 in H x 6 in W x 4-1/4 in D
• Enclosure Type: NEMA 3R
• Mounting Type: Surface
• Number of Circuits: 8
