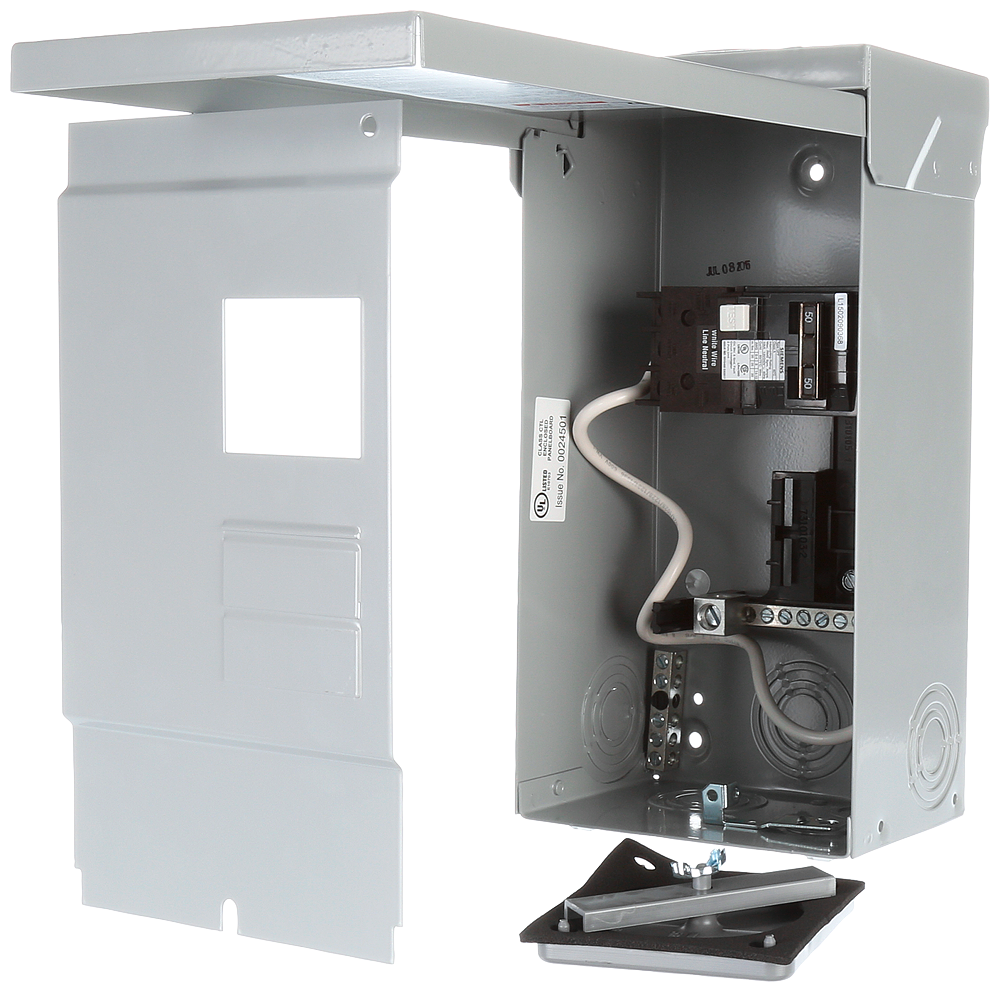

Siemens W0408L1125SPA50 Main Lug Load Center, 120/240 VAC, 125 Amps, Single-Phase, 4 Space, NEMA 3R

Product Description

Siemens W0408L1125SPA50 is a main lug load center designed for residential use. It operates at 120/240 VAC and has a capacity of 125 amps. This device supports single-phase power and features four spaces for circuit breakers.

• Built with a NEMA type 3R enclosure for outdoor use.
• Includes a factory-installed ground bar and is suitable for a variety of installations.
• Interruption rating peaks at 100,000 amps.

Product Highlights

This load center is ideal for subfeed applications and meets UL standards for safety and reliability.

Product Information

Standard Information

• Manufacturer: Siemens
• Country of Origin: Mexico

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 125 A
• Number of Poles: 2
• Number of Spaces: 4
• Bus Rating: 125 A
• Interrupt Rating: 100,000 A
• Dimensions: 12-1/4 in H x 6 in W x 4-1/4 in D
• Enclosure Type: NEMA 3R
• Wiring Configuration: 3-Wire
• Number of Circuits: 8
