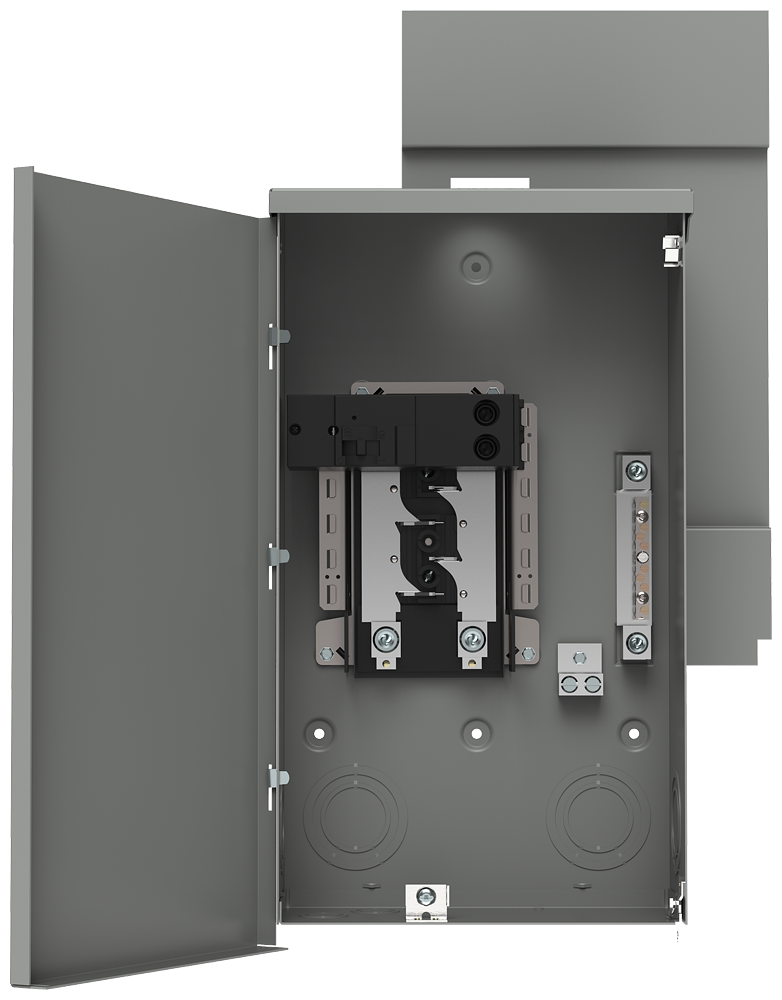

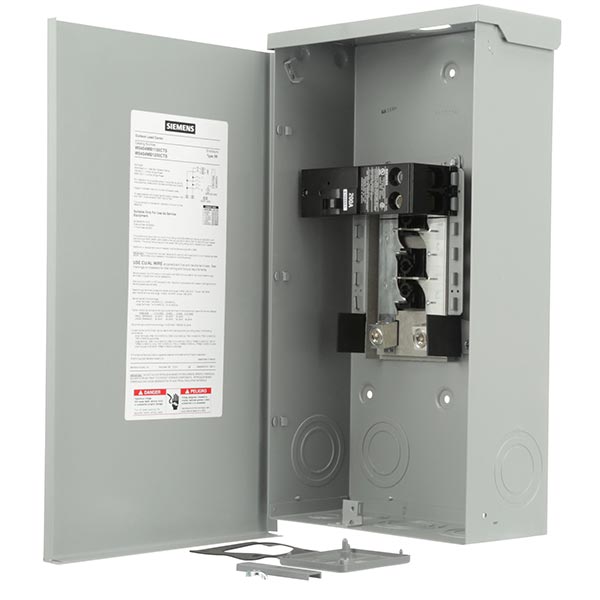

Siemens W0404MB1200CTS EQ Series 1-Phase Low Voltage Main Breaker Loadcenter, 120/240 VAC, 200 A, 100 kA Interrupt

Product Description

The Siemens W0404MB1200CTS serves as an essential component in low voltage power distribution. This main breaker load center operates at a voltage of 120/240 VAC and is rated for a maximum amperage of 200 amps, effectively handling both residential and light commercial applications.

• Type: Main Breaker
• UL Listed for safety compliance
• Designed for outdoor environments with NEMA Type 3R enclosure

Product Highlights

This load center is suitable for severe environmental conditions, making it ideal for coastal and remote areas. It includes a one-piece bus bar and quick interior removal features for efficient installation and maintenance.

Product Information

Standard Information

• Brand: Siemens
• MPN: W0404MB1200CTS

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 200 A
• Interrupt Rating: 100 kA
• Breaker Type: QN2200R
• Bus Rating: 200 A
• Enclosure Type: NEMA 3R
• Number of Spaces: 4
• Overall Dimensions: 20 in H x 11-1/8 in W x 4-3/4 in D
• Weight: 20.8 lb
• Country of Origin: Mexico
