Siemens V7B3222R 17 Inch 240 VAC 60 to 60 Amp 3-Pole Fusible Panel Unit

Product Description

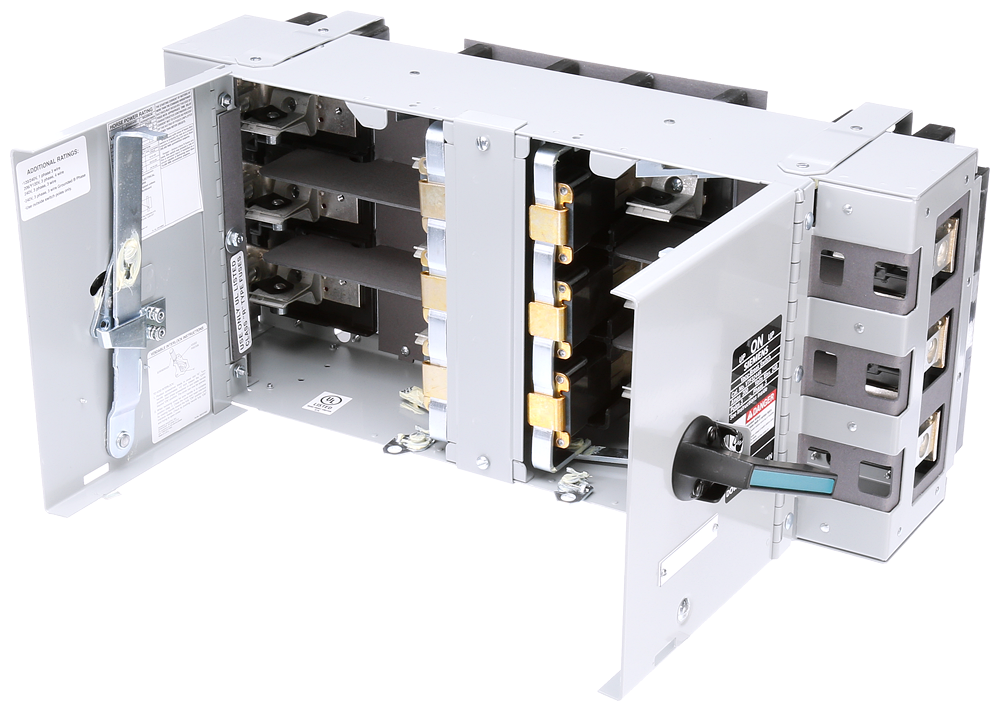

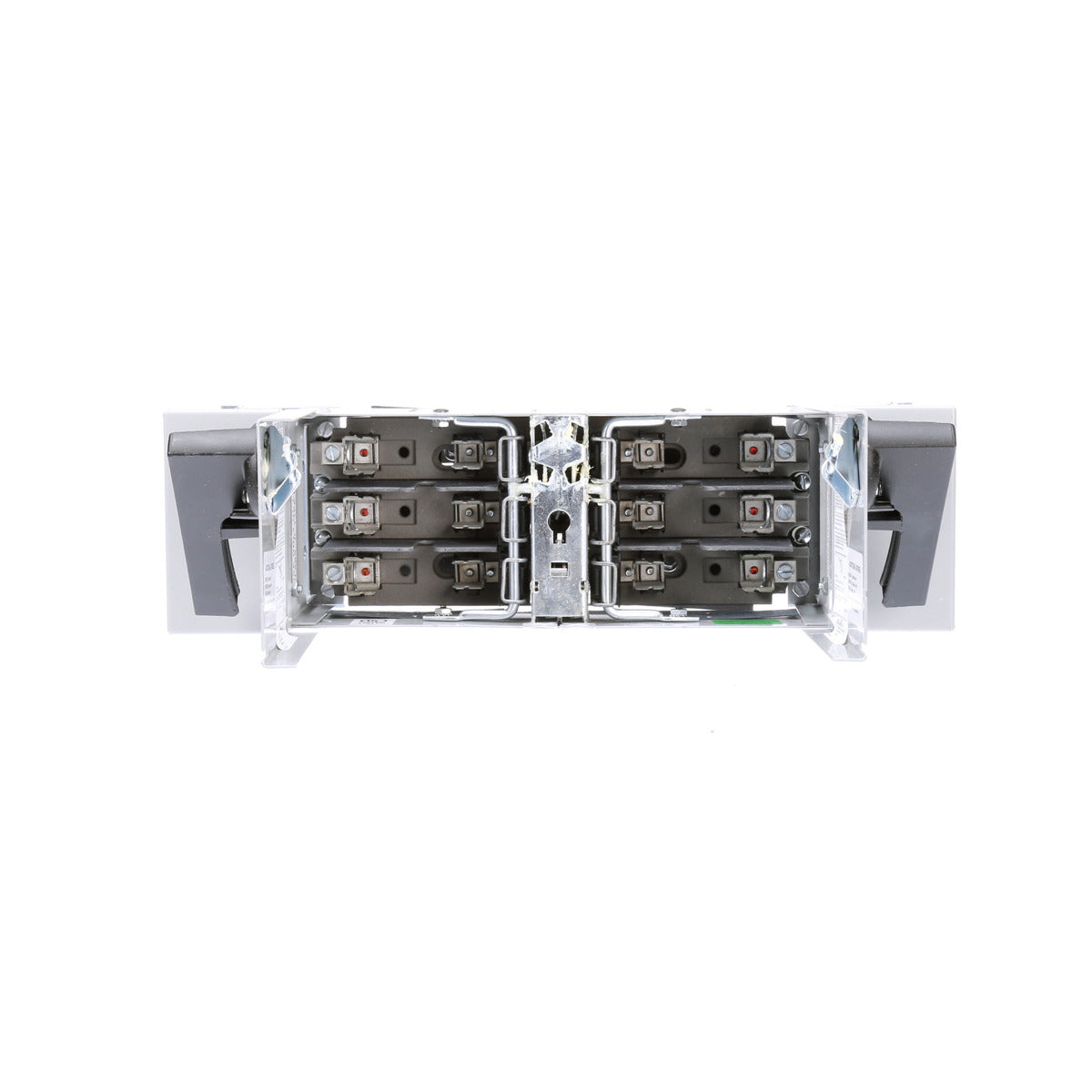

The Siemens V7B3222R is a low voltage circuit protection panelboard/switchboard unit. This Vacu-Break switch measures 17 inches and operates at 240 VAC with a 60 to 60 Amp current rating and a 3-pole configuration. Suitable for SB1, SB2 switchboards and F1, F2 panelboards, it ensures efficient power management and safety in various applications.

• Rated for 240 VAC and 60A
• Features a 3-pole configuration
• Suitable for use in SB1, SB2 switchboards and F1, F2 panelboards

Product Highlights

The Siemens V7B3222R panel unit provides reliable circuit protection with a robust design and is ideal for power management in panelboard and switchboard applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: V7B3222R
• Country of Origin: Mexico

Technical Specifications

• GTiN: 00783643232693
• Type: VBPANELBOARDUNITS
• Brand: Siemens
• Width: 7.900 in
• Action: SINGLE THROW
• Height: 10.9 Inch
• Length: 20.1 Inch
• Voltage: 240 Volt
• Amperage: 60/60 Amp
• Frequency: 60 Hz
• Insulated?: No
• Number of Poles: 3 Pole
• Operating Cycles: 10k
• Country of Origin: Mexico
• Operating Temperature: (-20F-120F) AMBIENT TEMPERATURE
• Catalog Number: V7B3222R
• Manufacturer: Siemens
• Made in USA: No
• MPN: V7B3222R
• Reference ID: SIEMENSV7B3222R
• Phase: 3
• UNSPSC: 39122205
• Application: For SB1, SB2 switchboards and F1, F2 panelboards
• Mounting Type: Inside Panelboard
• Terminal Type: Screw
• Enclosure Type: NEMA 1
• Voltage Rating: 250
• Insulation Type: Non-Insulated
• Frequency Rating: 60
• Temperature Rating: -20 to 120
• Horsepower: 7.5
• Actuator Type: Handle
• Amperage Rating: 60 A
• Numeric ID: 2510416
• Overview: VB SW 17W X 5H 3P 240V 60A/60A R-FUS
• Part #: V7B3222R
• Category: Safety Switch
• Standards: UL
