Siemens V7B3211R VB SW 17W X 5H 3P 240V 30A/30A R-FUS

Product Description

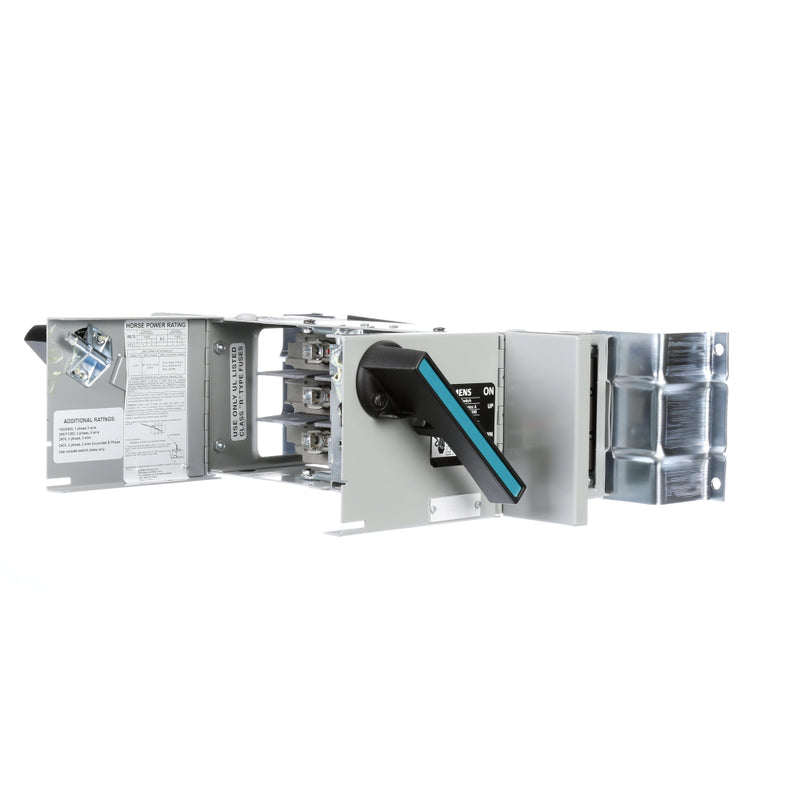

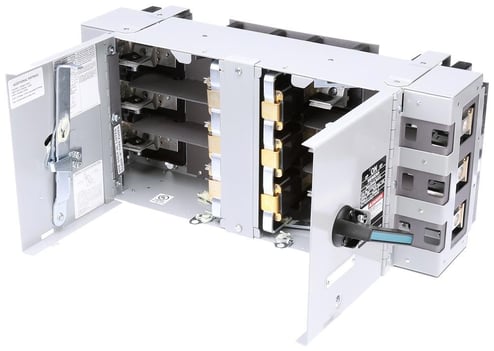

The Siemens V7B3211R VB SW 17W X 5H 3P 240V 30A/30A R-FUS is a Vacu-Break fusible panelboard disconnect switch rated for 240 Volts and 30 Amps. Designed for single-throw operation in a dual configuration, it combines vacuum arc interruption technology with fusible protection. Suitable for industrial and commercial power distribution applications.

• Fusible Vacu-Break
• Single Throw
• Dual/Twin Configuration

Product Highlights

This Siemens switch is optimized for standard panelboard mounting, ensuring reliable load switching and fault protection.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: V7B3211R
• Country of Origin: Mexico

Technical Specifications

• Brand: SIEMENS
• Manufacturer Part Number: V7B3211R
• UPC Code: 783643232679
• Overview: VB SW 17W X 5H 3P 240V 30A/30A R-FUS
• Category: Switch
• Item Subcategory: Parts & Accessories
• Family: Vacu-Break
• Type: V7B
• Voltage: 240
• Amperage: 30
• Phase: 3
• Poles: 3
• AIC rating: 200kA@240V
• Fuse Class: R
• Configuration: Dual/Twin
• Switch Style: Fusible
• Nema Rating: 1
• Compatible Frames: PJP
• Action: SINGLE THROW
• Amperage Rating: 30/30A
• Country of Origin: MX
• Environmental_Conditions: Indoor
• Frequency_Rating: 60
• Insulation: None
• Mounting: INSIDE PANEL BOARD
• Number_Of_Poles: 3
• Operating_Cycles: 10k
• Operating_Temperature: (-20F-120F) AMBIENT TEMPERATURE
• Standard: UL
• Sub_Brand: Siemens
• Voltage Rating: 250
