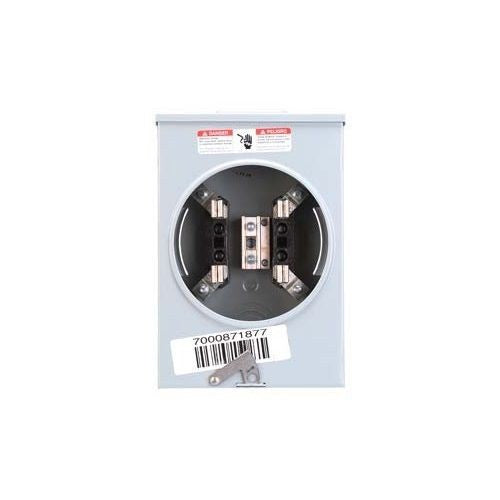

Siemens UAT111-XG Talon® 7-Cutout 1-Position Type UAT1 Meter Socket 600 VAC 135 A

Product Description

The Siemens UAT111-XG Talon® meter socket is a 7-Cutout 1-Position Type UAT1 meter socket. This socket is rated for 600 VAC and 135 A, and designed for residential applications. It features a NEMA 3R enclosure, suitable for overhead or underground feed, and utilizes lug terminals for secure connections.

• Includes H659-0121 5th jaw kit, cover plate, and ground lug
• Features glass filled polyester block construction
• Lay-in 2/0 AWG max lugs

Product Highlights

The Siemens Talon® meter socket provides a robust solution for meter mounting, ensuring reliable performance in residential settings. Built with quality materials and thoughtful design, it offers easy installation and long-term durability.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: UAT111-XG
• Country of Origin: Mexico

Technical Specifications

• Amperage Rating: 135 A
• Wire Size: 14 to 2/0 AWG
• Enclosure Type: NEMA 3R
• Hub Type: RX Closing Plate
• Voltage Rating: 600 VAC
• Feed Type: Overhead/Underground
• Phase: 1
• Mounting Type: Surface
• Number of Jaws: 4
• Cover Type: Ringless
• Terminal Type: Lug
• Type: 7-Cutout 1-Position Type UAT1
• Application: Residential Applications
• Standard & Approvals: UL Listed|ANSI-C12-7
• Manufacturer: Siemens
• Brand: Siemens
• GTIN: 00783643179769
• UPC: 783643179769
• UNSPSC: 39121102
• Vendor SKU: UAT111-XG
• Cable Entry: OH/UG
• Enclosure: STEEL
• Number of Holes: 7 Hole
• Number of Phases: 1 Phase
• Operating Temperature: AVERAGE AMBIENT
• Voltage: 600 Volt
• Amperage: 135 Amp
• Applications: RESIDENTIAL
• Country of Origin: Mexico
• MPN: UAT111-XG
• Model: UAT111-XG
