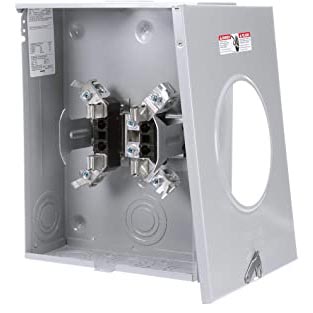

Siemens UAT111-0GF TALON 1-Position Type UAT1 Meter Socket 600 VAC 135 A

Product Description

The Siemens TALON UAT111-0GF is a 1-position meter socket designed for residential applications. It operates at a voltage rating of six hundred VAC and supports an amperage rating of one hundred thirty-five amps. This product features a ringless cover and is housed in a NEMA three R enclosure, making it suitable for both overhead and underground feed types.

• Amperage rating of one hundred thirty-five amps
• NEMA three R enclosure for weather protection
• Supports wire sizes from fourteen to two over zero AWG

Product Highlights

This Siemens meter socket is built with glass-filled polyester block construction and includes a stainless steel latch and hasp for security. It provides a reliable connection with its four jaw terminal type compatible with lay-in two over zero AWG maximum lugs.

Product Information

Standard Information

• Brand: Siemens
• Part Number: Q3733

Technical Specifications

• Type: 1-Position Type UAT1
• Phase: 1
• Voltage Rating: 600 VAC
• Amperage Rating: 135 A
• Enclosure Type: NEMA 3R
• Wire Size: 14 to 2/0 AWG
• Cover Type: Ringless
• Dimensions: 8 in H x 11.7 in W x 3.6 in D
• Hub Type: RX Opening
• Application: Residential Applications
• Mounting Type: Surface
• Number of Jaws: 4
