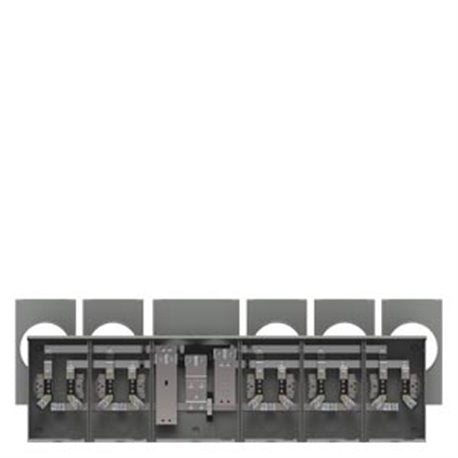

Siemens UA5719-KJCA Talon Type UAS8/9 5-Position Multi-Position Meter Socket 600 VAC 200 A

Product Description

The Siemens TALON® UA5719-KJCA 5-Position Multi-Position Meter Socket provides reliable power management. Rated at 600 VAC and 200 A, this meter socket is designed for overhead and underground feeds. It features a NEMA 3R enclosure and is suitable for residential applications. The socket supports wire sizes (2) 1/0 AWG to 600 kcmil and 6 AWG to 350 kcmil.

• Glass filled polyester block construction
• Steel construction
• Without bypass
• With hub, (2) ground lug, 5th terminal insulated and 7/16 in barrel lock knockout

Product Highlights

Multi-position meter socket with NEMA 3R enclosure, suitable for residential applications and both overhead or underground feeds.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: UA5719-KJCA

Technical Specifications

• Phase: 1
• UNSPSC: 39121102
• Hub Size: 4.281
• Wire Size: (2) 1/0 AWG to 600 kcmil, 6 AWG to 350 kcmil
• Application: Residential Applications
• Mounting Type: Surface
• Terminal Type: Line/Load Lug
• Enclosure Type: NEMA 3R
• Voltage Rating: 600
• Type: Type UAS8/9 5-Position
• Hub Type: (2) Large HD Opening
• Cover Type: Ringless
• Amperage Rating: 200
• Applications: Residential
• Cable Entry: OH/UG
• Enclosure: Steel
• Number of Phases: 1 Phase
• Operating Temperature: Average Ambient
• Brand: Talon
• Sub Brand: MeterSockets
• Catalog Number: UA5719-KJCA
• Manufacturer: Siemens
• Commodity Description: Ganged Meter Sockets
• Mounting: HORIZONTAL
• Current Rating: 200 AMPERE
