Product Description

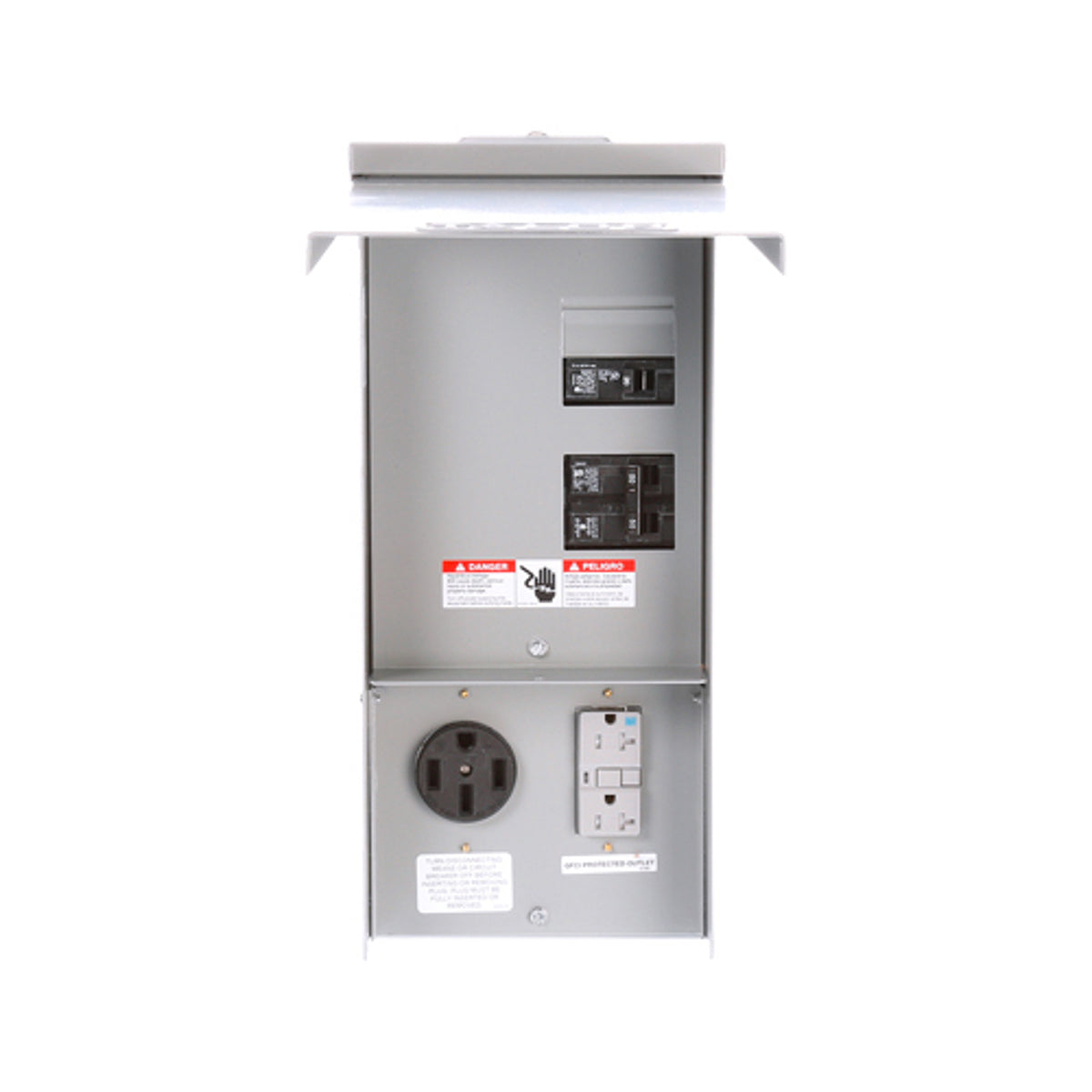

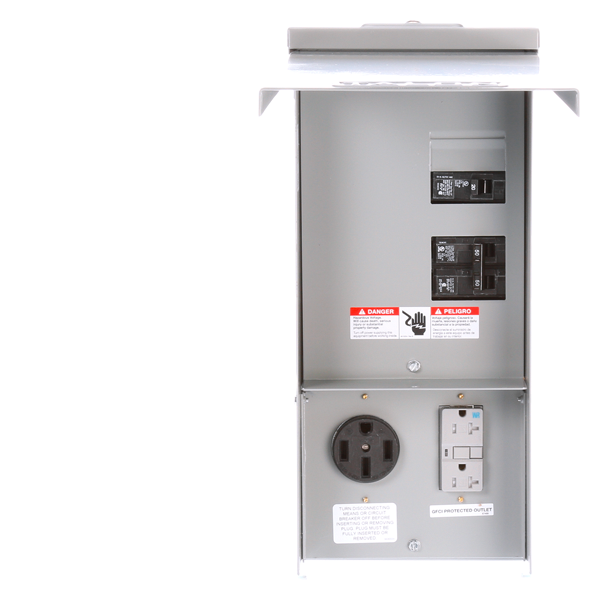

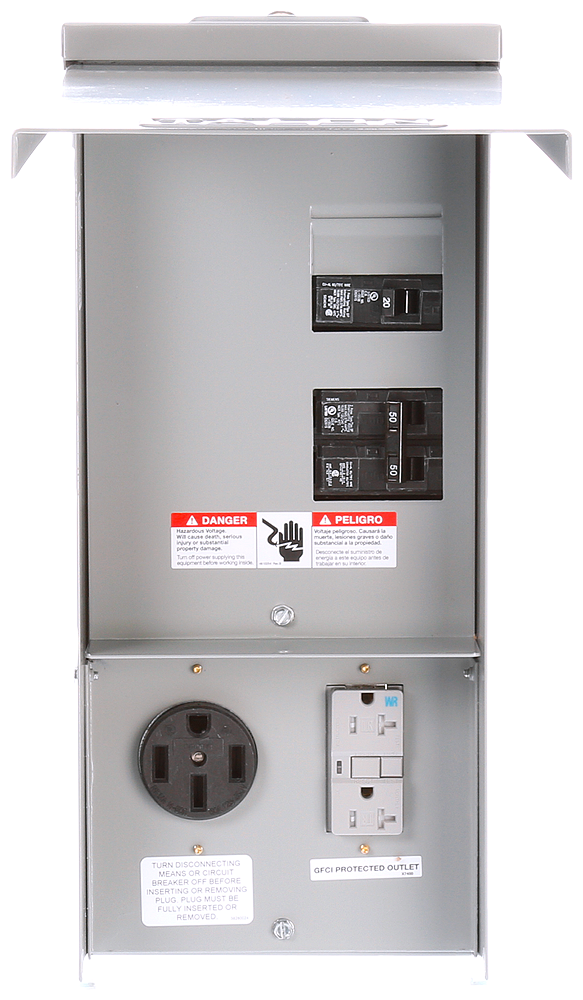

The Siemens TL17US Talon Temporary Power Outlet Panel is designed for temporary power at construction sites and recreational vehicle parks. This unmetered panel features a 20 and 50-Amp receptacle. It is constructed with rainproof NEMA type 3R and G90 galvanized steel with a powder-coated finish. Includes 14-50R rated 125/250 VAC (50 A), 5-20R2GFI rated 125 VAC (20 A) receptacles.
- Surface or pole mount
- UL Listed and Outdoor Rated

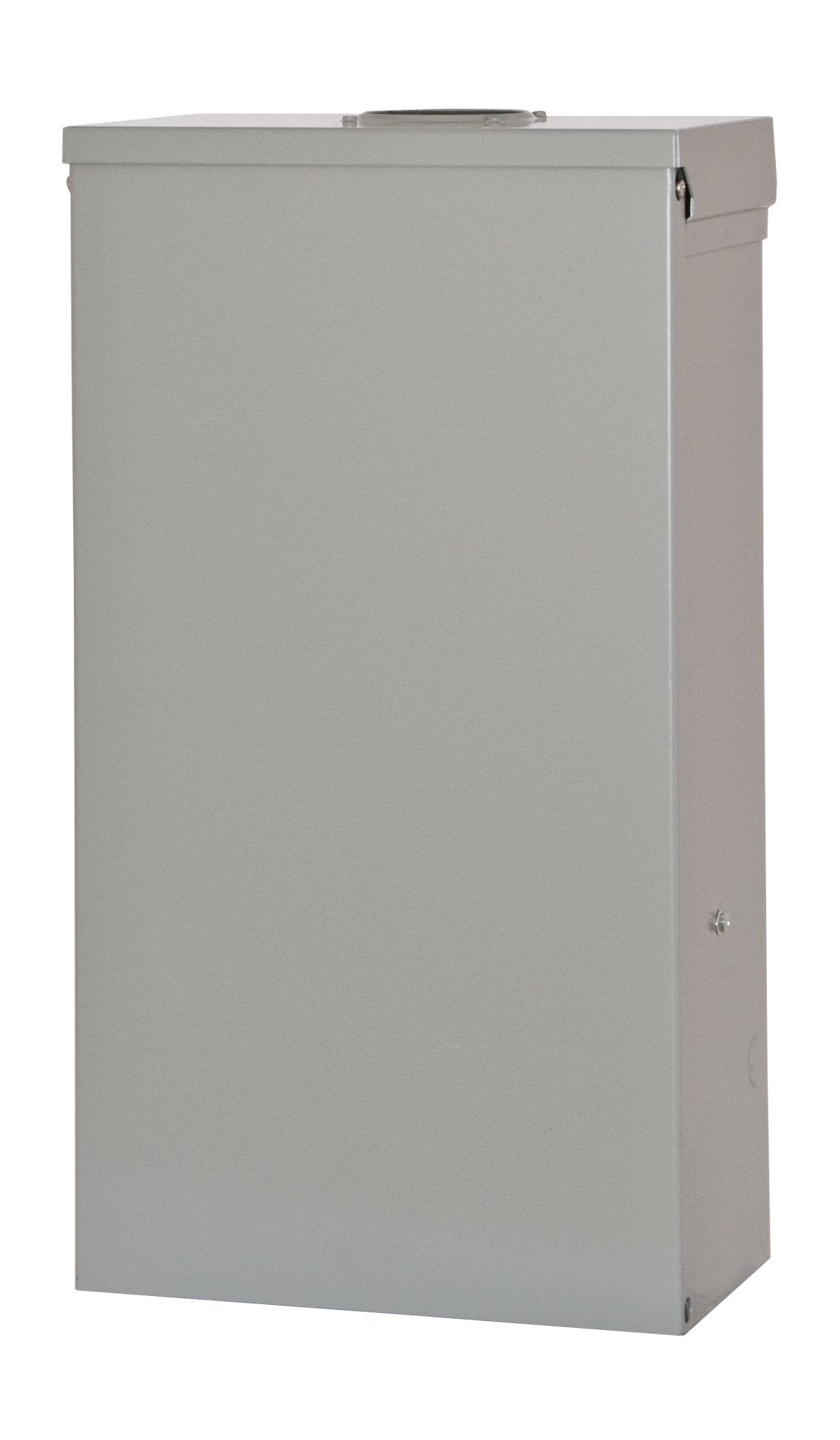

- Elevated cover with padlock prevents unauthorized use
Product Highlights
Designed for temporary power operation, the Siemens TL17US power outlet panel is suitable for construction sites and RV parks.
Product Information
Standard Information
-
Brand: SIEMENS
-
Manufacturer Part Number: TL17US
-
Country of Origin: United States
Technical Specifications
-
Voltage: 240 Volts
-
Amperage Capacity: 50 Amps
-
Brand: SIEMENS
-
Country of Origin: United States
-
Made in USA: Yes
-
Catalog Number: TL17US
-
UPC: 040892993738
-
GTIN: 00040892993738
-
Number of Items: 1.0
-
Product Type: ELECTRICAL_DISTRIBUTION_BOARD
-
Enclosure Type: NEMA 3R
-
Phase: 1 ph
-
Type: Low Voltage
-
Voltage Rating: 120/240 VAC
-
Mounting Type: Surface
-
Material: Steel
-
Feed Type: Bottom/Top
-
Amperage Rating: 125 A
-
Application: For construction site applications
-
Standard & Approvals: UL Listed
-
Includes: Receptacle
-
UNSPSC: 39121102
-
Number Of Circuits: 2
-
Phase Type: Single Phase
-
Maximum Current: 50 Amps
-
Amperage: 125 Amp
-
Applications: TEMPORARYPOWER
-
Cable Entry: UNMETERED
-
Enclosure: STEEL
-
Number of Phases: 1 Phase
-
Suitable For: Exterior, Interior
-
Port Type: Power
-
Current Type: AC
-
Model: TL17US
-
Number of Poles: 2
-
Resistance Properties: Weatherproof
-
Item Height: 8 in
