Siemens TC1FD350 Copper FD-Frame 1-Wire 350 MCM Circuit Breaker Lug

Product Description

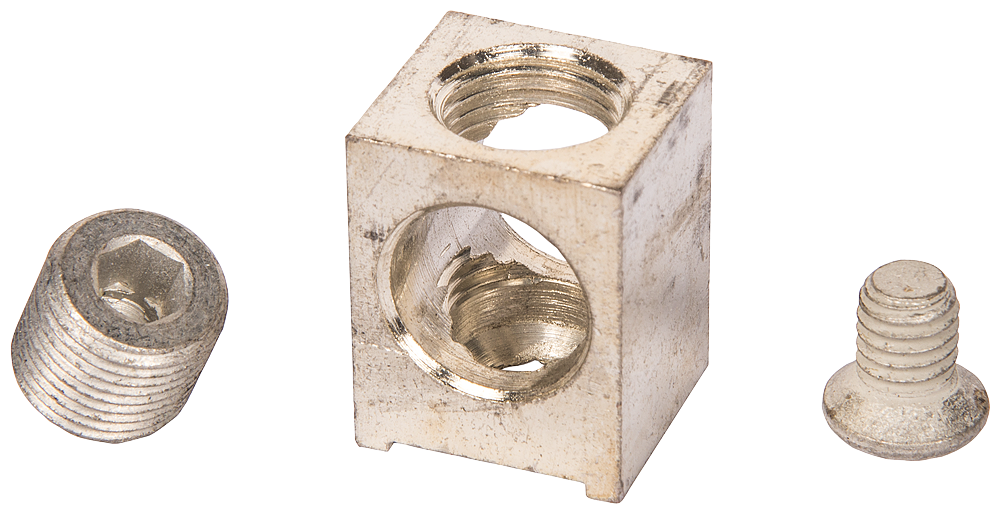

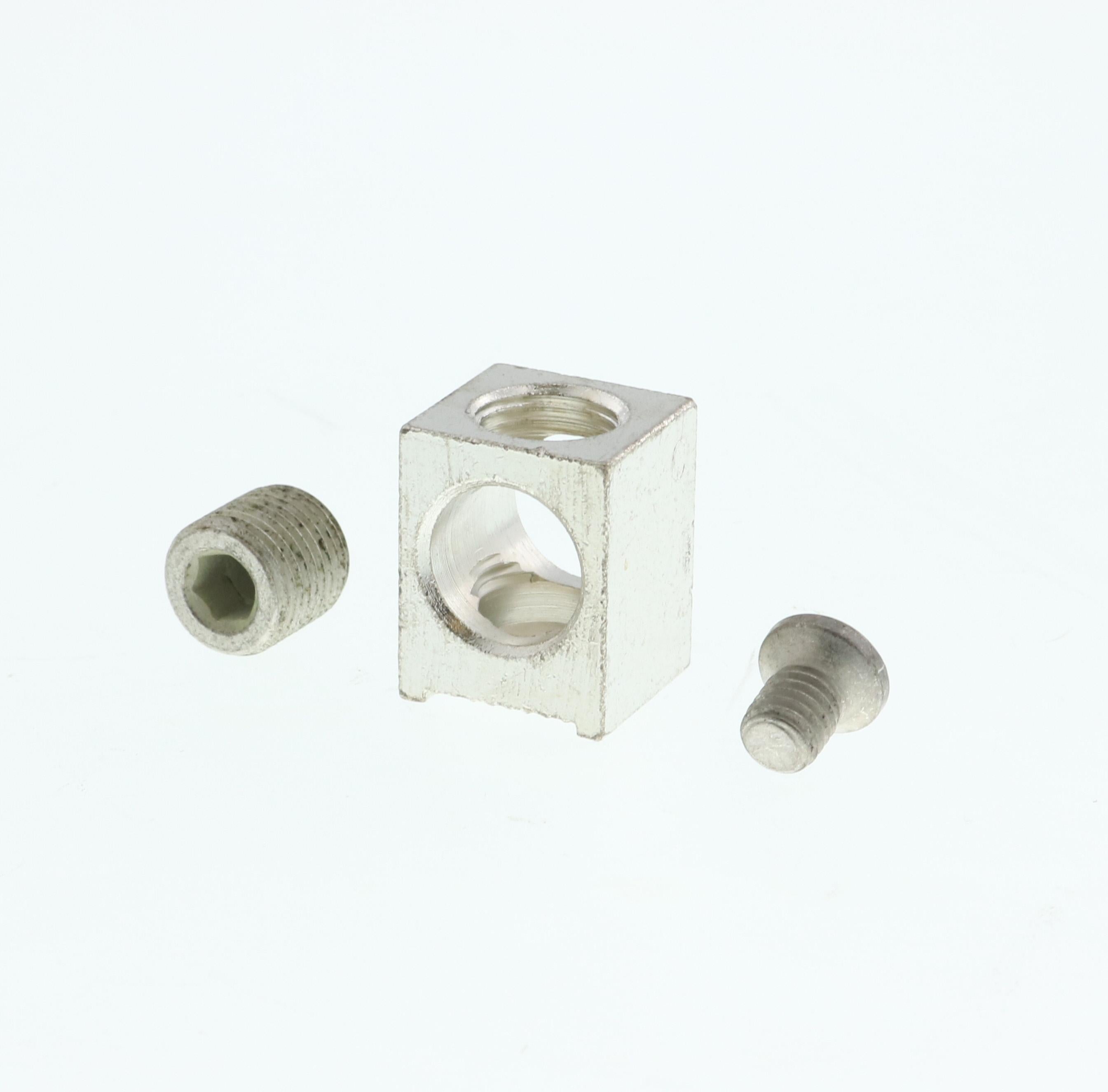

The SIEMENS TC1FD350 is a copper mechanical lug designed for circuit breakers. This lug accommodates one cable and supports a wire range of #6 AWG to 350 kcmil (Cu). It is suitable for line and load sides and is designed for use with FD frames.

• Copper Mechanical Lug
• 1 Cable per Lug
• Wire Range: #6 AWG.350 kcmil (Cu)

Product Highlights

The SIEMENS TC1FD350 copper lug ensures reliable electrical connections for FD frame circuit breakers, supporting a wide range of copper conductor sizes.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: TC1FD350
• Country of Origin: Mexico

Technical Specifications

• Type: EXTERNAL ACCESSORY
• Brand: Siemens
• Frame: FD
• Material: Copper
• Sub Brand: SENTRON
• Used With: 2/3 Pole 70 - 250 A HFD6, HHFD6, CFD6, F(X)D6-A Breakers
• Applications: For use with FD Frame
• Conductor Size: 6 AWG-350 kcmil
• Conductor Type: Copper
• Country of Origin: Mexico
• Suitable For Use With: HFD, HHFD, CFD, FD, FXD Frame Molded Case Circuit Breakers
• Ampere Rating: 70 to 250 A
• Standards: UL 489|HACR Rated
• Manufacturer Part Number: TC1FD350
• MPN: TC1FD350
• Condition: New
