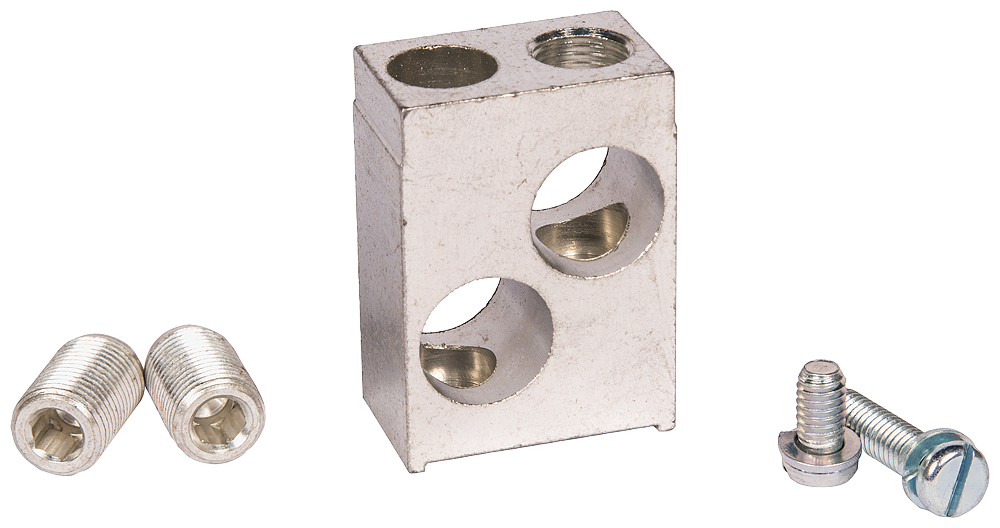

Siemens TA2J6500 Line/Load Side Circuit Breaker Lug, 250 to 600 Amp, 3/0 AWG to 500 MCM Copper/Aluminum

Product Description

The Siemens TA2J6500 is a circuit breaker lug designed for use with JXD2(A), JXD6(A), JD6(A), SJD6(A), HJD6(A), HJXD6(A), HHJXD6, HHJD6, and SHJD6(A) types of circuit breakers. It accommodates conductors from three hundred to five hundred kcmil copper and four hundred to five hundred kcmil aluminum. This lug can accept one to two cables per lug and is rated for circuit breakers from two hundred to six hundred amps.

• Compatible with multiple Siemens circuit breaker models.
• Supports a wide conductor size range.
• Ideal for various electrical applications.

Product Highlights

This product is suitable for use in high-performance electrical systems where reliable connectivity is essential.

Product Information

Standard Information

• Brand: Siemens
• Manufacturer: Siemens

Technical Specifications

• Catalog Number: TA2J6500
• Material: Aluminum
• Conductor Size: 3/0 AWG - 500 kcmil (Cu), 4/0 AWG - 500 kcmil (Al)
• Maximum Breaker Current Rating: 600 Amperes
• Width: 1 inch
• Height: 2 inches
• Length: 3 inches
• Number of Holes: 2
• Temperature Rating: 75 degrees C
• Country of Origin: Mexico
