Siemens TA1Q1 line replacement circuit breaker lug 6 to 1/0 AWG

Product Description

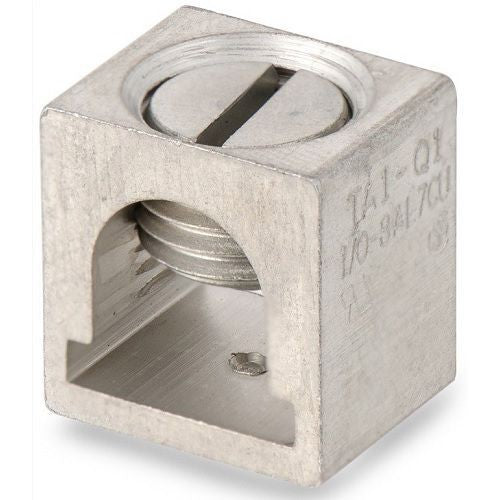

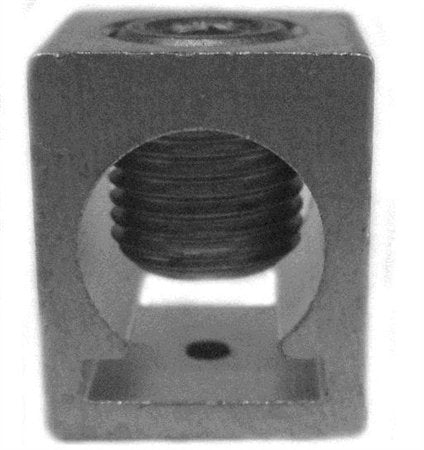

The Siemens TA1Q1 is a line replacement circuit breaker lug. This lug is designed for use with Siemens circuit breakers and has a conductor range of 8 to 1 AWG for copper and 6 to 1/0 AWG for aluminum. It is suitable for BQ, BQH, BQHF, BQE, BQF, BL, BLH, HBL, HBQ circuit breakers.

• Conductor size: 6-1/0 AWG (AL)/8-1 AWG (CU)
• Suitable for BQ, BQH, BQHF, BQE, BQF, BL, BLH, HBL, HBQ Circuit Breakers
• Made of aluminum with tin plating

Product Highlights

The Siemens TA1Q1 is a reliable choice for replacing circuit breaker lugs, ensuring secure and efficient connections.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: TA1Q1
• Country of Origin: Mexico

Technical Specifications

• Type: ReplacementLugs
• Brand: Siemens
• Frame: BQ;NGG100A
• Width: 1.000 in
• Finish: Tin Plated
• Height: 1 Inch
• Length: 3 Inch
• Material: Aluminum
• Sub Brand: Molded Case Circuit Breaker accessory
• Used With: BQ, BQH, BQHF, BQE, BQF, BL, BLH, HBL, HBQ Circuit Breaker
• Conductor Size: 6-1/0 AWG (AL)/8-1 AWG (CU)
• Conductor Type: Aluminum and Copper
• Number of Conductors: 1
• Catalog Number: TA1Q1
• Manufacturer: Siemens
• Country of Origin: Mexico
• Made in USA: No
• Conductor Range: 8 to 1 AWG
• Suitable For Use With: BQ, BQH, BQHF, BQE, BQF, BL, BLH, HBL, HBQ Molded Case Circuit Breaker
• Maximum Breaker Current Rating: 125 Ampere
• Minimum Conductor Size: 8 AWG (Copper), 6 AWG (Aluminum)
• Maximum Conductor Size: 1 AWG (Copper), 1/0 AWG (Aluminum)
• Used On: BQ/BQH/HBQ Frame Molded Case Circuit Breaker
