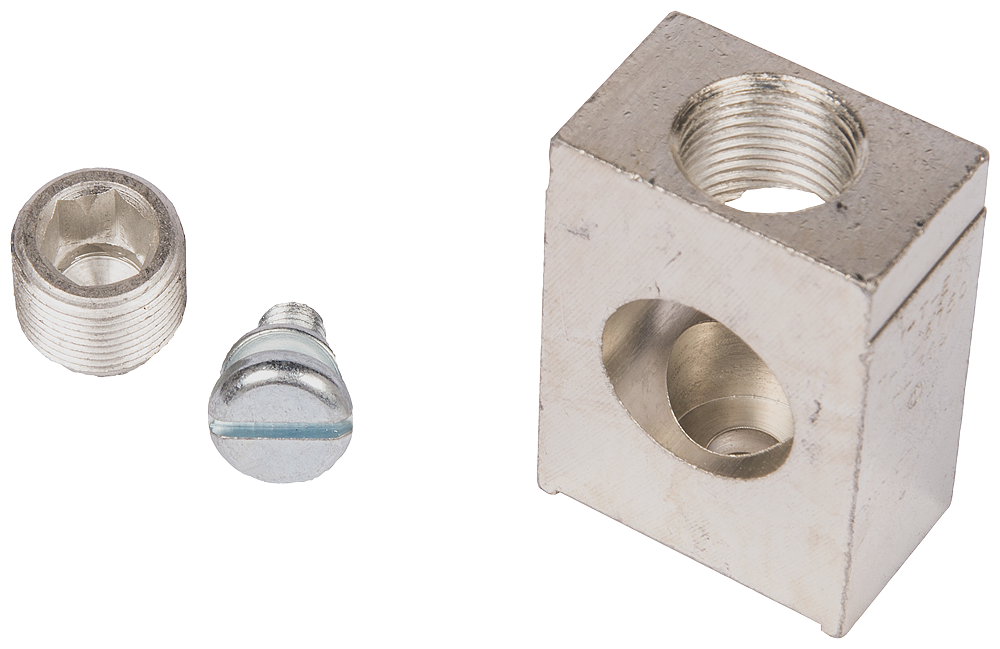

Siemens TA1L6750 250 to 600 Amp 500 to 750 MCM Aluminum 1-Conductor Mechanical Lug

Product Description

Siemens TA1L6750 is a mechanical lug suitable for applications requiring a connection for 250 to 600 Amp circuits. The lug accommodates one cable per lug, with a wire range of five hundred to seven hundred fifty kcmil for aluminum or five hundred to six hundred kcmil for copper. It is designed for compatibility with all LD and JD circuit breakers.

• Wire range: 500-750 kcmil (Al) or 500-600 kcmil (Cu)
• For use with all LD and JD Breakers
• Rated for 250A-600A applications

Product Highlights

This lug is efficient for connecting conductors in low-voltage electrical systems, ensuring secure and reliable connections in power distribution setups.

Product Information

Standard Information

• Catalog Number: TA1L6750
• Brand: Siemens

Technical Specifications

• Current Rating: 250-600 Amp
• Material: Aluminum
• Conductor Size: 500-750 kcmil (Al), 500-600 kcmil (Cu)
• Applications: Compatible with J(X)D2(A), J(X)D6(A), HJD6(A), and others
• Country of Origin: Mexico
• Weight: 0.365 lb
• Width: 5.500 in
• Height: 1.2 in
• Length: 5.5 in
