Product Description

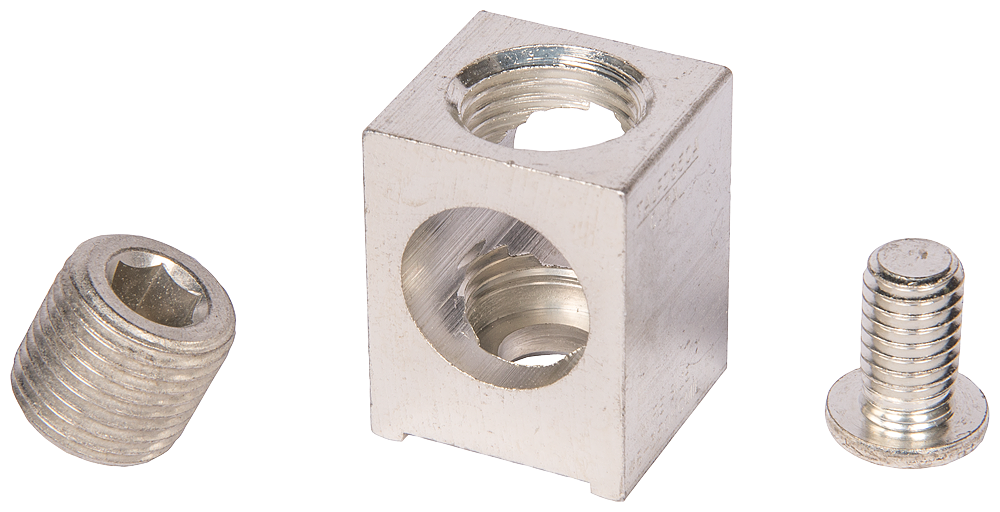

The Siemens TA1FD350A is a circuit breaker lug designed for use with FXD6-A, FD6-A, HFD6, CFD6, and HHFD6 circuit breakers. It accommodates a conductor range of 4 AWG to 350 MCM for both copper and aluminum. This lug is suitable for carrying currents from seventy to two hundred fifty amperes.
- Compatible with multiple Siemens circuit breaker models
- Supports copper and aluminum connections
- Rated for 70 to 250 A circuit breaker ratings
Product Highlights
This lug serves as a crucial component in electrical distribution, ensuring secure connectivity between circuit breakers and conductor lines.
Product Information
Standard Information
-
Brand: Siemens
-
Country of Origin: Mexico
Technical Specifications
-
MPN: TA1FD350A
-
Material: Aluminum
-
Conductor Range: 6 AWG to 350 kcmil (Copper) / 4 AWG to 350 kcmil (Aluminum)
-
Maximum Breaker Current Rating: 250 A
-
Frame Type: FD
-
Height: 1 inch
-
Length: 5 inches
-
Width: 4 inches
-
Weight: 0.115 lb
-
Used With: 2/3 Pole Line and Load Sides FD Frame Breakers
