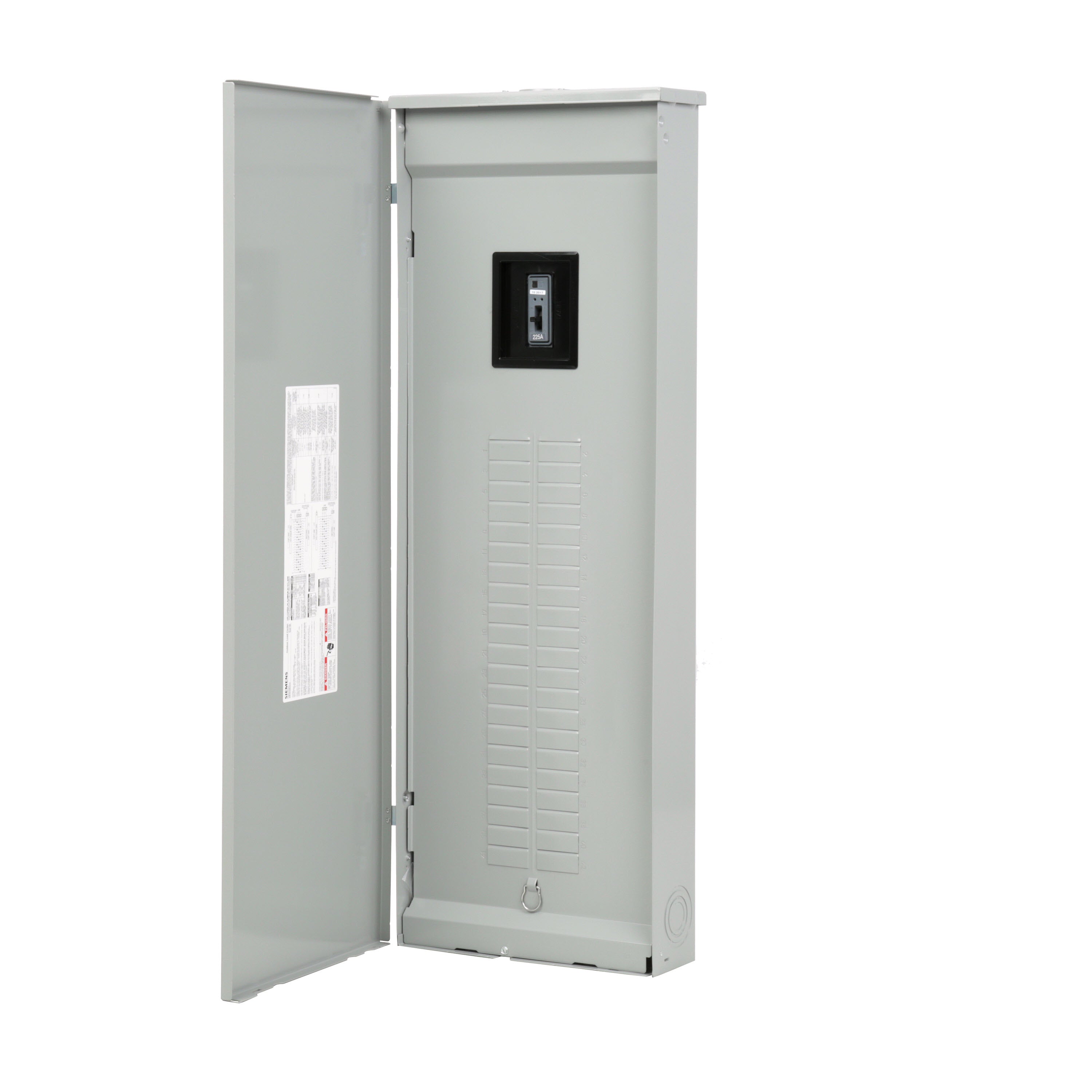

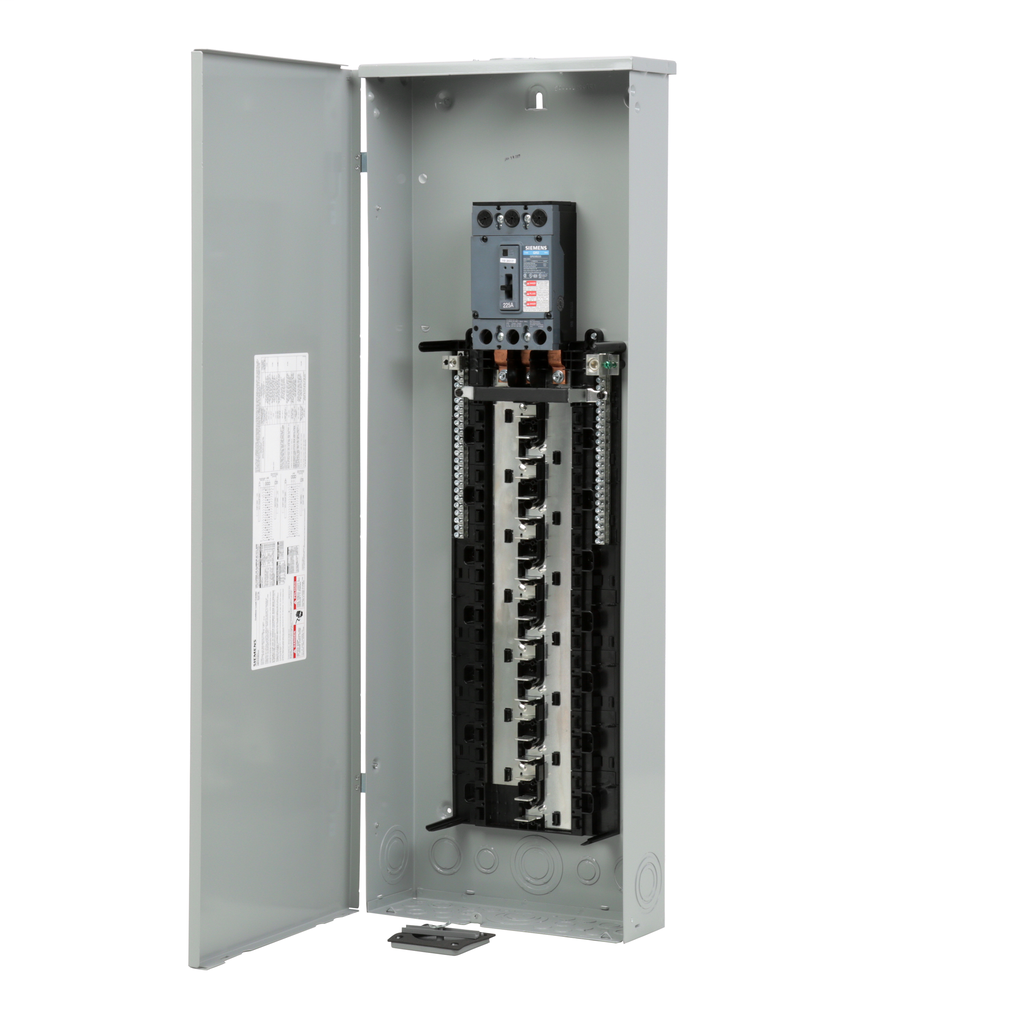

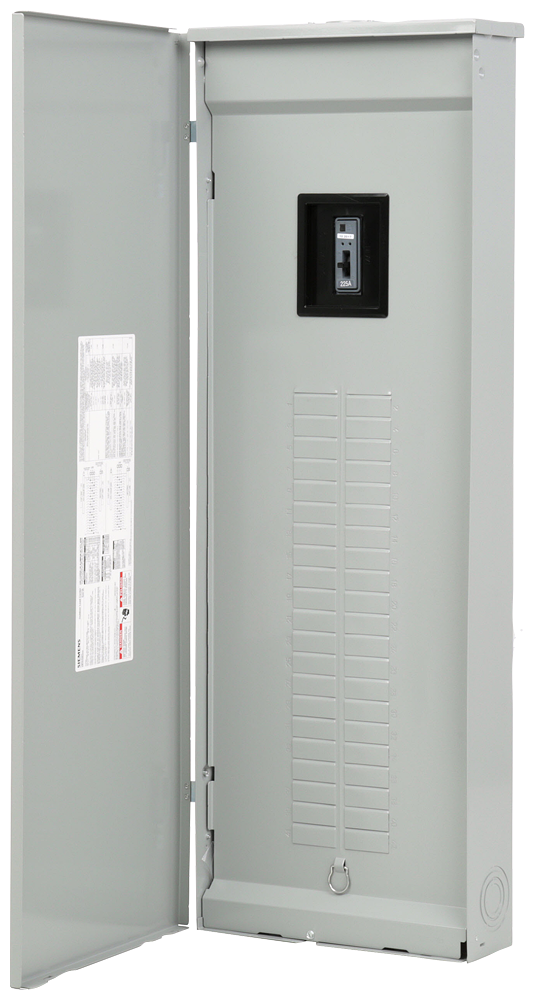

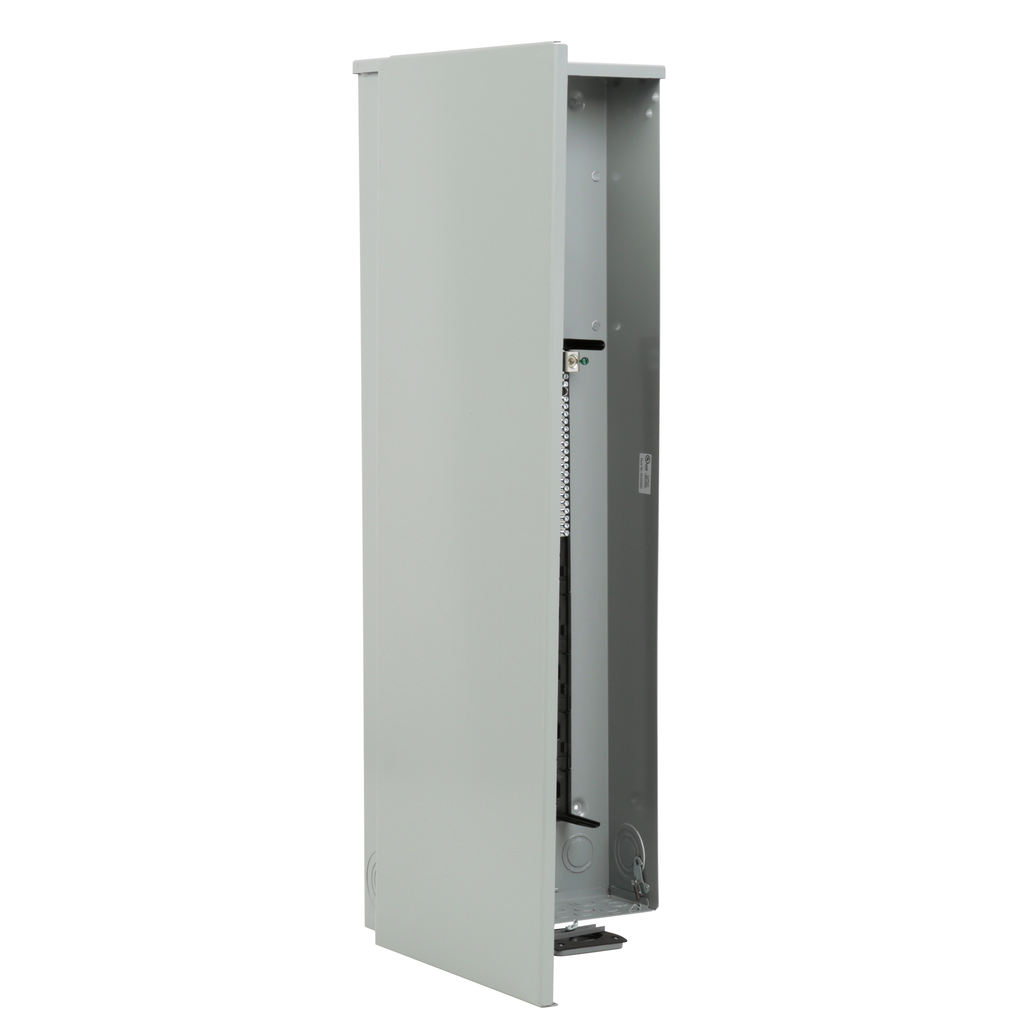

Siemens SW4242B3225 ES Series 3-Phase Low Voltage Main Breaker Load Center 120/208/240 VAC 225 A 10 kA Interrupt

Product Description

Siemens SW4242B3225 is a low voltage ES series load center designed for maximum efficiency. This unit supports a three-phase, four-wire system and operates at voltage ratings of one hundred twenty, two hundred eight, or two hundred forty volts with a current of two hundred twenty-five amps. Its ten-kiloamp interrupt rating ensures robust performance in various applications.

• Factory installed main breaker
• Forty-two one-inch spaces allowing a maximum of forty-two circuits
• NEMA type 3R enclosure suitable for outdoor use

Product Highlights

This load center is suitable for residential and light commercial electric distribution. Its aluminum bus enhances conductivity and durability.

Product Information

Standard Information

• Brand: Siemens
• MPN: SW4242B3225

Technical Specifications

• Voltage Rating: 120/208/240 VAC
• Amperage Rating: 225 A
• Dimensions: 43-5/8 inches H x 5 inches W x 15-1/2 inches D
• Enclosure Type: NEMA 3R
• Interrupt Rating: 10 kA
• Wiring Configuration: 4-Wire
• Bus Material: Aluminum
• Number of Spaces: 42
• Country of Origin: Mexico
