Siemens SW3054B3200 Low Voltage Main Breaker Load Center 120/240/208 VAC 200 Amp 3 Phase 30 Spaces 54 Circuits

Product Description

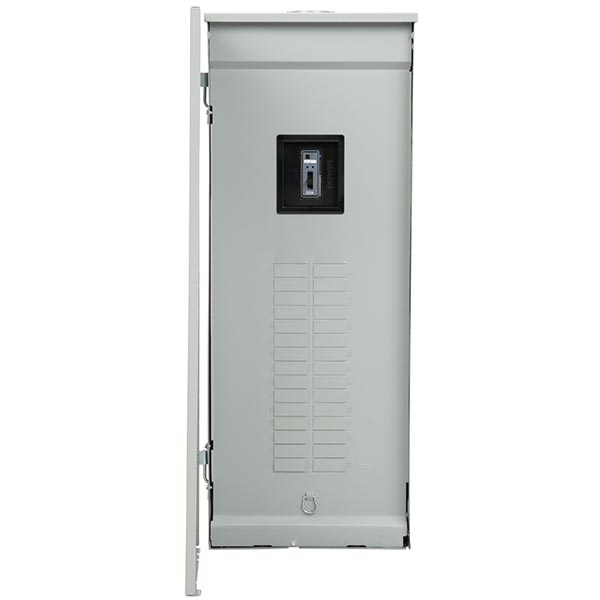

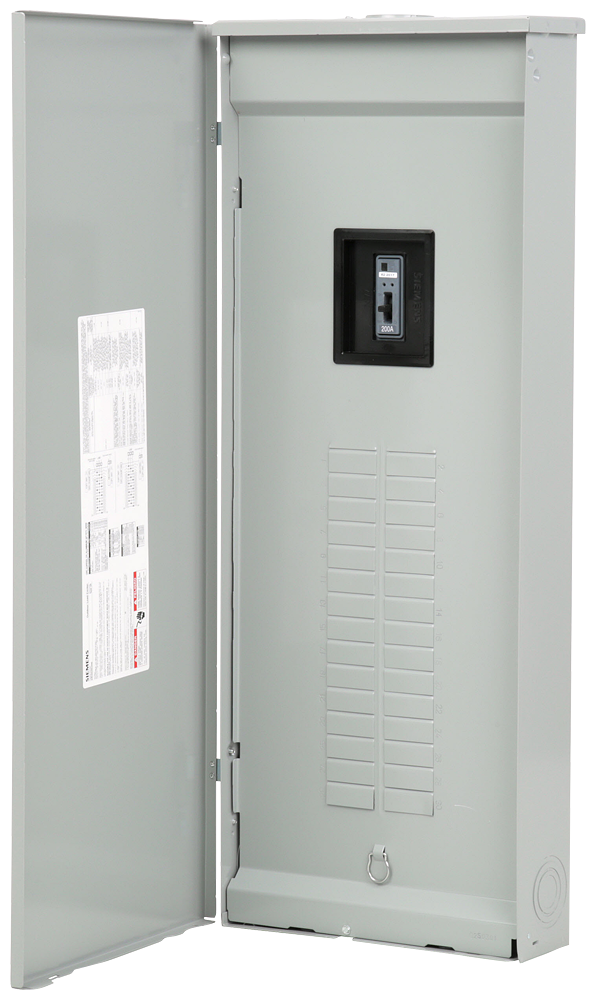

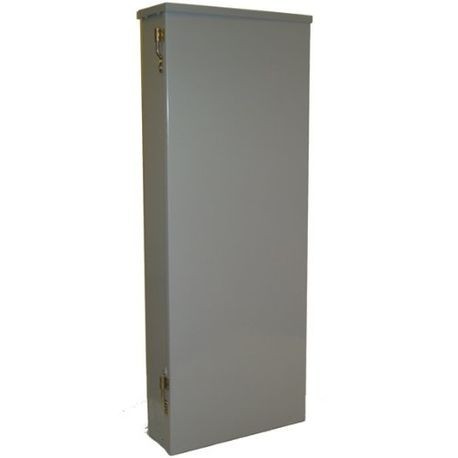

The Siemens SW3054B3200 is a low voltage main breaker load center designed for 3-phase power distribution. This unit has a voltage rating of 120/208/240 VAC and a maximum amperage rating of 200 Amps. It features a NEMA Type 3R enclosure suitable for outdoor applications. The load center includes a factory-installed main breaker and provides thirty one-inch spaces, allowing up to fifty-four circuits.

• Aluminum bus for efficient power distribution.
• NEMA Type 3R enclosure allows for outdoor installation.
• Compatible with residential and light commercial electric distribution.

Product Highlights

This load center is ideal for use in outdoor environments and is often used in residential and light commercial settings. Its features allow for safe and effective management of electrical circuits.

Product Information

Standard Information

• Brand: Siemens
• MPN: SW3054B3200

Technical Specifications

• Amperage Rating: 200 A
• Voltage Rating: 120/240/208 VAC
• Number of Spaces: 30
• Number of Circuits: 54
• Enclosure Type: NEMA 3R
• Mounting Type: Surface
• Interrupt Rating: 22 kA
• Special Features: Aluminum bus, gray trim
