Siemens SW1224B3100 ES Series 3-Phase Low Voltage Main Breaker Loadcenter With Gray Trim, 120/240/208 VAC, 100 A, 22 kA Interrupt

Product Description

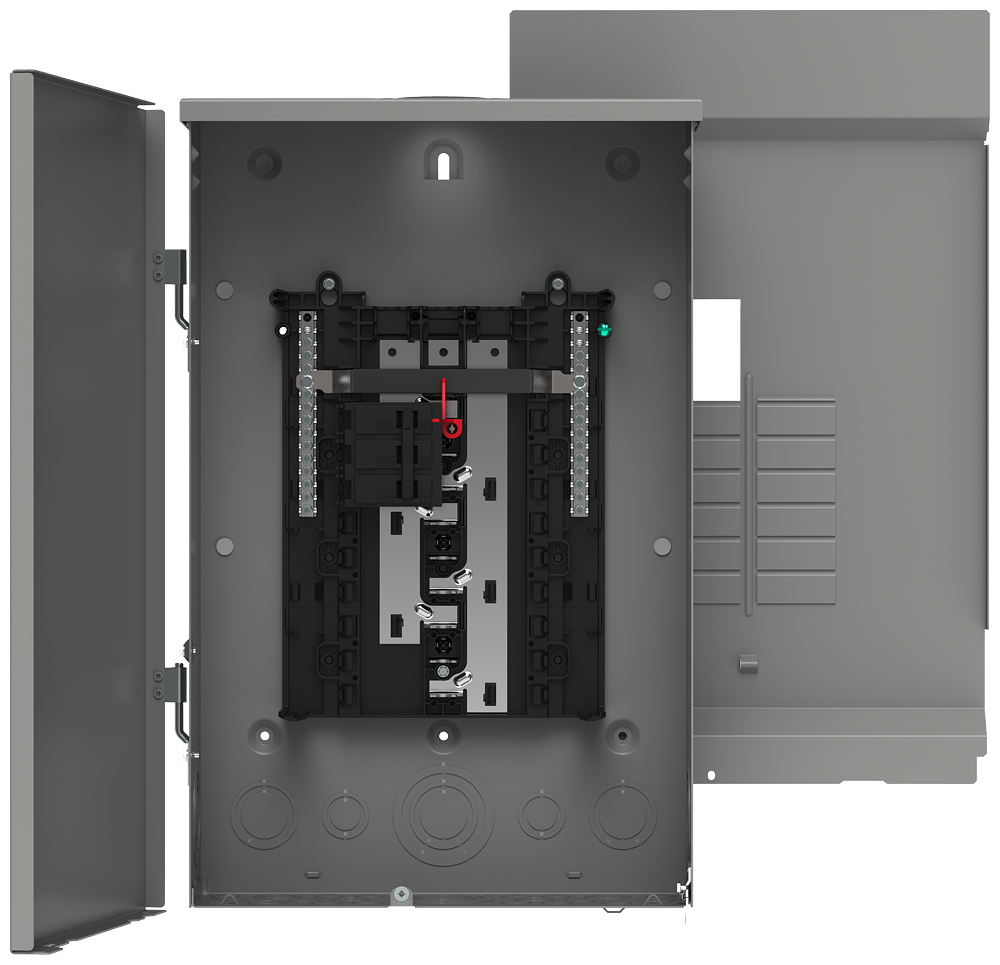

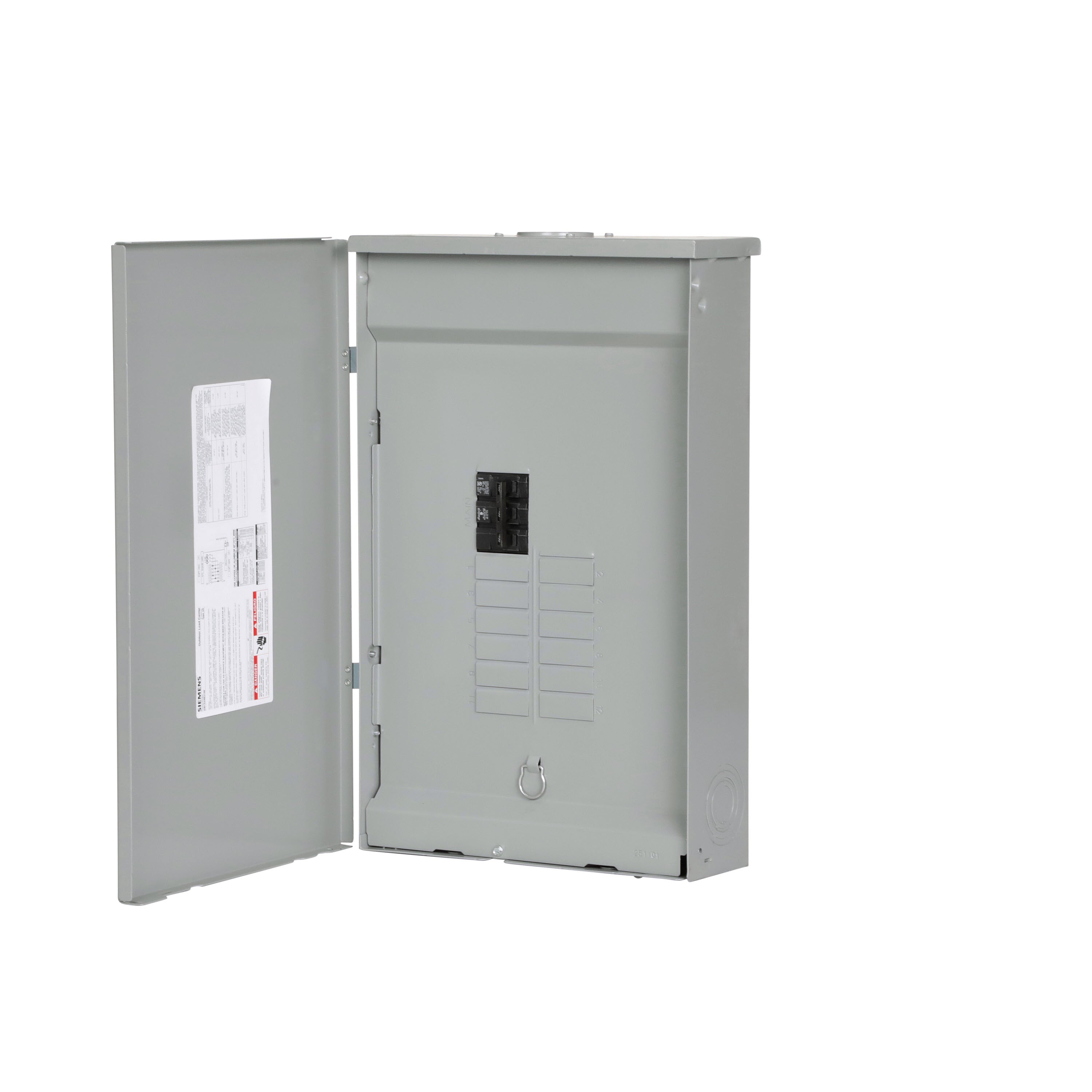

The Siemens SW1224B3100 is a main breaker load center designed for low voltage applications. It features a factory-installed main breaker and provides twelve one-inch spaces, accommodating a maximum of twenty-four circuits. This unit operates on a three-phase, four-wire system, rated for 120/240 volts or 120/208 volts with a hundred amp rating and a ten kiloamp interrupt capacity.

• Factory-installed main breaker.
• Accommodates up to 24 circuits.
• NEMA Type 3R enclosure suitable for outdoor use.

Product Highlights

This load center is ideal for residential and light commercial electric distribution.

Product Information

Standard Information

• Brand: Siemens
• Product Number: SW1224B3100

Technical Specifications

• Voltage Rating: 120/240 Volt
• Amperage Rating: 100 Amp
• Bus Rating: Aluminum bus
• Enclosure Type: NEMA Type 3R
• Interrupt Rating: 22 kA IC
• Number of Spaces: 12
• Number of Circuits: 24
• Wiring Configuration: 4-Wire
• Dimensions: 5 x 15.5 x 22.63 inches
• Weight: 35 pounds
• Country of Origin: Mexico
