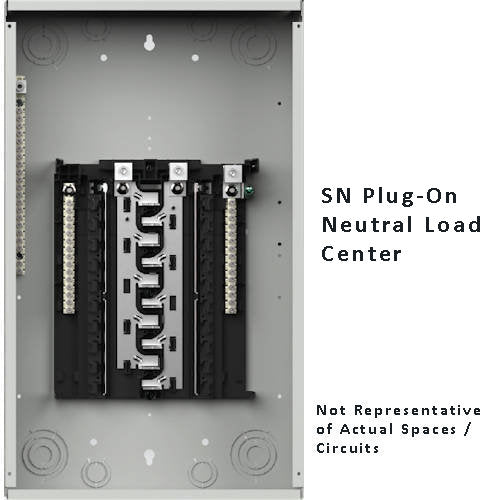

Siemens SNW2040B1200 Standard SN Series 1-Phase Assembled Load Center 200A 20 Spaces / 40 Circuits

Product Description

The Siemens SNW2040B1200 is a 200 Amp main breaker load center designed for 1-Phase, 3-Wire configurations operating at 120/240 Volts. This load center has twenty one-inch spaces, accommodating up to forty circuits. The product features an aluminum bus and is housed in a NEMA Type 3R enclosure for outdoor use.

• 200 Amp main breaker
• Supports plug-on neutral breakers
• Suitable for outdoor applications

Product Highlights

The Siemens load center combines a compact design with features that enable efficient installation. Its innovative design simplifies wiring tasks and enhances accessibility for maintenance.

Product Information

Standard Information

• Catalog Number: SNW2040B1200
• Brand: Siemens

Technical Specifications

• Amperage Rating: 200 A
• Application: Outdoor Applications
• Enclosure Type: NEMA 3R
• Interrupt Rating: 22 kAIC
• Number of Circuits: 40
• Number of Spaces: 20
• Voltage Rating: 120/240 VAC
• Wiring Configuration: 3-Wire
• Package Weight: 32 lb
• Warranty: 10 years
