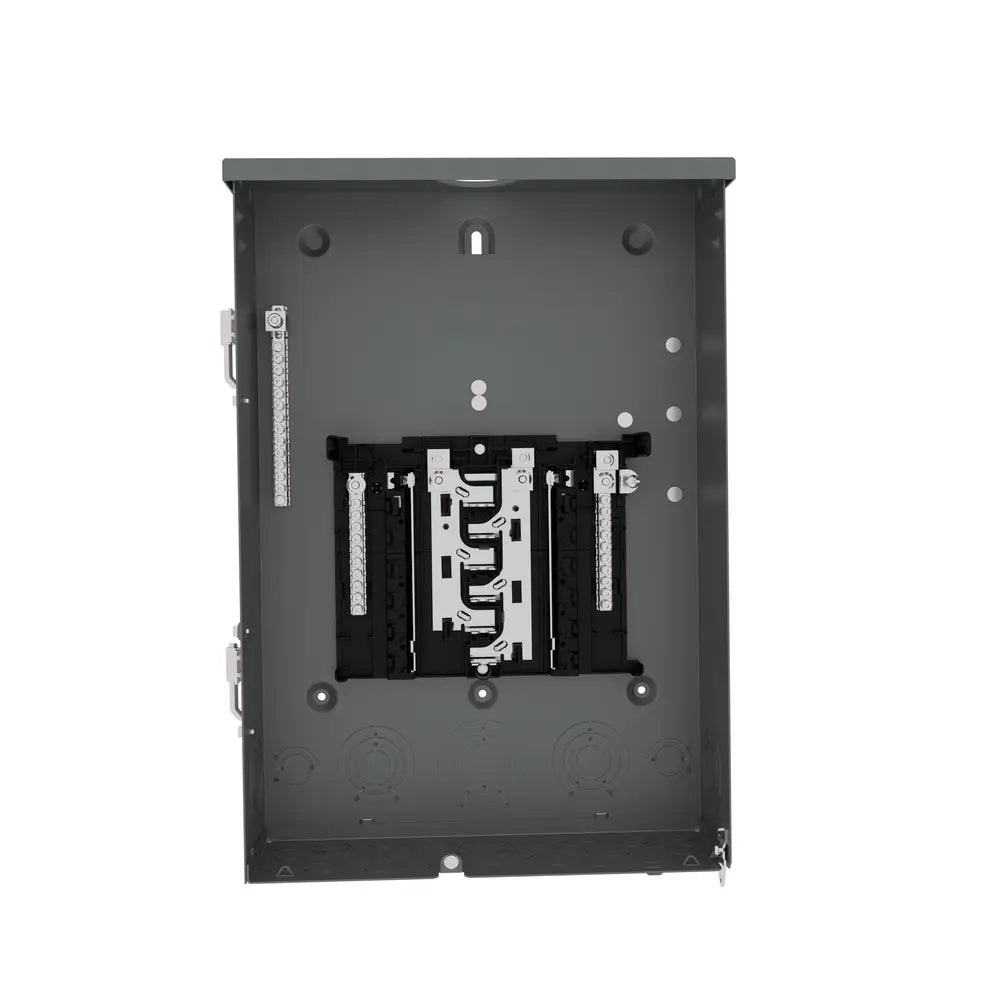

Siemens SNW1224L1125 Single-Phase Low Voltage Plug-On Load Center, Main Lug, 125A, 12 Spaces/24 Circuits, Aluminum Bus, NEMA 3R

Product Description

Siemens Industry offers the SNW1224L1125 Single-Phase Low Voltage Plug-On Load Center. This load center is designed for use in residential and light commercial applications. It features a main lug and accommodates up to twelve one-inch circuit breakers, allowing for a maximum of twenty-four circuits. The unit operates at 120/240 VAC and supports an amperage rating of one hundred twenty-five amperes.

• Single-phase and three-wire system configuration
• NEMA 3R rated enclosure suitable for indoor installations
• UL listed for safety and reliability

Product Highlights

This load center is ideal for powering multiple circuits while ensuring safety and compliance. The aluminum bus and gray trim enhance its durability and aesthetic appearance.

Product Information

Standard Information

• Brand: Siemens Industry
• Manufacturer: Siemens Industry

Technical Specifications

• MPN: SNW1224L1125
• Type: Load Centers
• Phase: Single-Phase
• Voltage Rating: 120/240 VAC
• Amperage Rating: 125 Amperes
• Number Of Spaces: 12
• Height: 4.72 Inches
• Width: 14.96 Inches
• Length: 22.04 Inches
• Weight: 24.22 Pounds
• NEMA Rating: NEMA 3R
• Interrupt Rating: 100 kAIC
• Wiring Configuration: 3-Wire
• Country of Origin: MX
• Mounting: Surface
