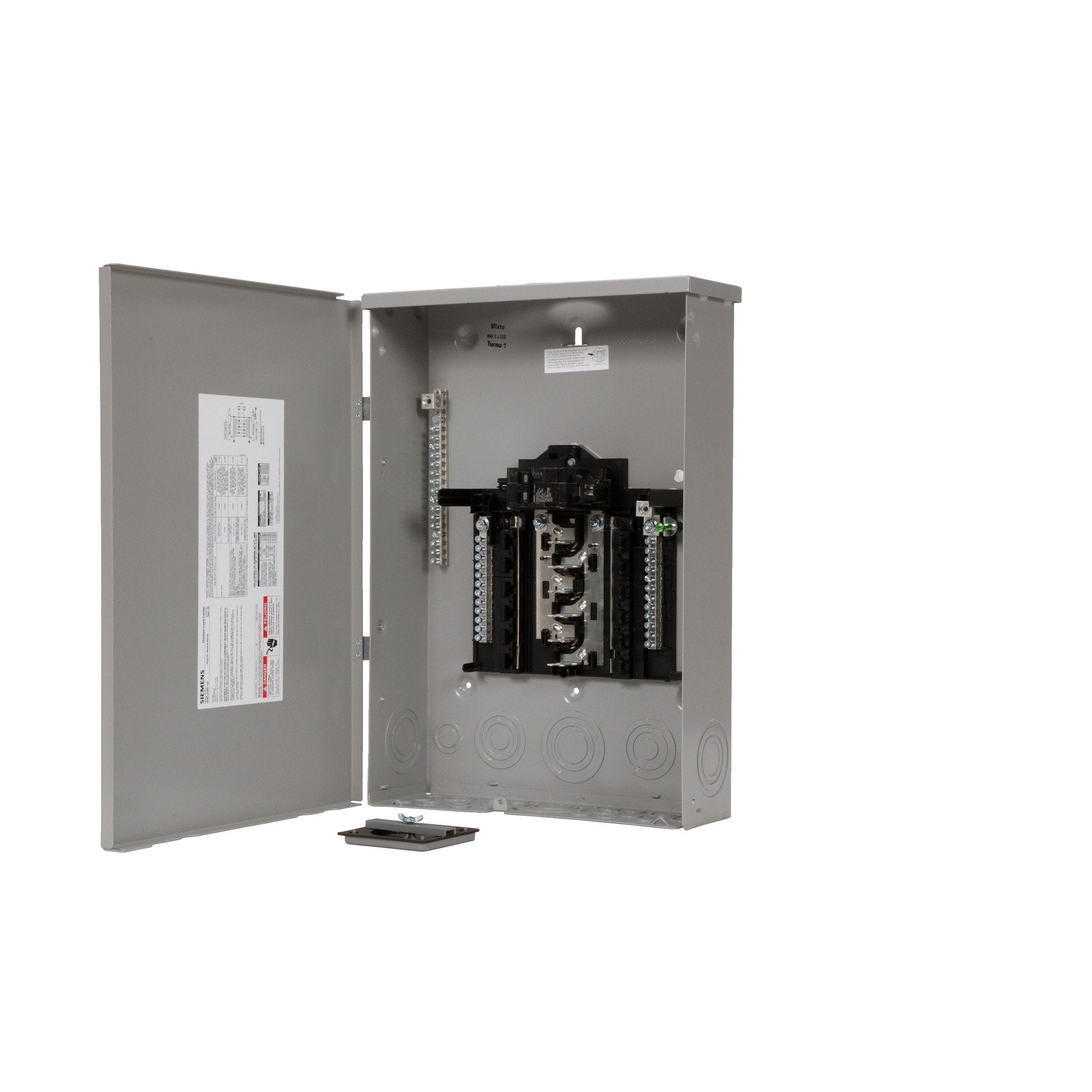

Siemens SNW1224B1100 Main Breaker Load Center 100A 12 Spaces 24 Circuits

Product Description

The Siemens SNW1224B1100 is a reliable load center designed for residential and light commercial use. It features a main breaker with twelve one-inch spaces that allow for a maximum of twenty-four circuits. This unit operates on a one-phase, three-wire system rated for one hundred amps at one hundred twenty to two hundred forty volts with a twenty-two kA interrupt rating.

• Aluminum bus for improved conductivity
• NEMA Type 3R enclosure suitable for outdoor use
• Plug-on neutral ready for quick installation

Product Highlights

This load center is designed to save time during installation, making it a smart choice for contractors.

Product Information

Standard Information

• Brand: Siemens
• MPN: SNW1224B1100

Technical Specifications

• Amperage Rating: 100 A
• Voltage Rating: 120/240 VAC
• Number of Circuits: 24
• Number of Spaces: 12
• Interrupt Rating: 22000 AIC
• Enclosure Type: NEMA 3R
• Country of Origin: Mexico
• Weight: 23.9100 lb
