Product Description

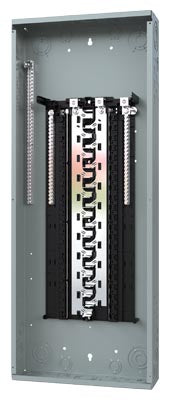

The Siemens SN4264L1225 is a 225-amp main lug load center designed for efficient power distribution. It features 42 spaces for circuit breakers and accommodates up to 64 circuits. This assembled load center operates on a one-phase, three-wire system, rated at 120/240 volts. The product utilizes an aluminum bus and is housed in a NEMA type 1 enclosure, making it suitable for indoor installations.
- 42 spaces for circuit breakers
- Up to 64 circuits supported
- Indoor rated NEMA type 1 enclosure
Product Highlights
This load center is designed for residential or commercial applications where reliability is paramount.
Product Information
Standard Information
-
Brand: Siemens
-
MPN: SN4264L1225
Technical Specifications
-
Voltage Rating: 120/240 VAC
-
Amperage Rating: 225 A
-
Interrupt Rating: 100 kAIC
-
Number of Circuits: 64
-
Wiring Configuration: 3-Wire
-
Number of Spaces: 42
-
Enclosure Type: NEMA 1
-
Dimensions: 15.5 in W x 37.13 in H
-
Enclosure Box Size: 14.25 in W x 3.88 in D x 36 in H
