Product Description

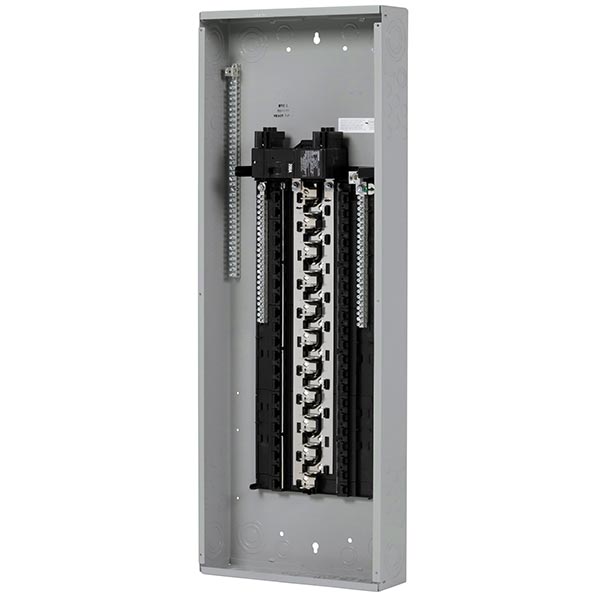

The Siemens SN4264B1200 is a 200 amp main breaker load center designed for efficient power distribution. This load center supports up to 42 spaces and allows for a maximum of 64 circuits. It operates on a one phase three wire system rated for 120/240 volts. The enclosure is made of aluminum and features a NEMA type 1 rating, suitable for indoor applications.
- 200 amp rating with 22 kAIC interrupt capacity
- 42 spaces with support for 64 circuits
- Plug-on neutral ready design for simplified installation
Product Highlights
Engineered for easy installation, this load center includes labor-saving features like plug-on neutral breakers. Its compact design offers adequate wire bending space and accessibility for neutral terminal connections.
Product Information
Standard Information
-
Brand: Siemens
-
Power Rating: 120/240 VAC
Technical Specifications
-
Amperage Rating: 200 A
-
Number of Spaces: 42
-
Number of Circuits: 64
-
Breaker Type: Main Breaker
-
Interrupt Rating: 22 kA
-
Wiring Configuration: 3-Wire
-
Enclosure Type: NEMA 1
-
Dimensions: 14-1/4 inches W x 3-7/8 inches D x 39 inches H
-
Package Weight: 43.538 lb
