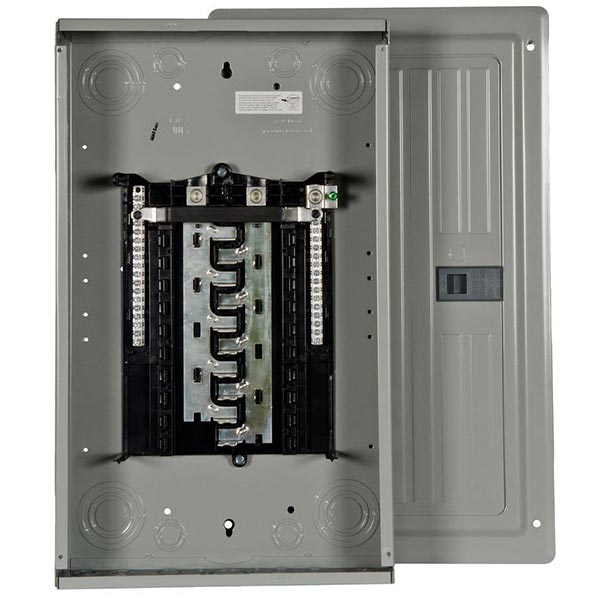

Siemens SN4060L1225 225A Main Lug Load Center 40 Spaces 60 Circuits

Product Description

Siemens SN4060L1225 is a main lug load center designed for indoor use. This load center has a capacity of two hundred twenty-five amps, offering forty one-inch spaces and allowing for a maximum of sixty circuits. It is rated for a one-phase, three-wire system with voltages of one hundred twenty to two hundred forty volts. The load center features an aluminum bus and comes in a gray finish suitable for a NEMA type 1 enclosure.

• Aluminum bus material
• UL listed for safety and reliability
• Designed for easy installation and maintenance

Product Highlights

The Siemens SN4060L1225 load center is user-friendly and allows for quick installation. Its design includes features like plug-on neutral capabilities, which simplifies wiring. This load center is ideal for residential applications and is built to handle various electrical needs.

Product Information

Standard Information

• Brand: Siemens
• Catalog Number: SN4060L1225

Technical Specifications

• Maximum Amperage: 225 A
• Voltage: 120/240 V
• Number of Circuits: 60
• Number of Spaces: 40
• Number of Phases: 1
• Bus Material: Aluminum
• Mounting Type: Surface
• Mfg Standards/Approvals: UL Listed
• Warranty: 1 yr
