Siemens SN3048L1125 Single-Phase Low Voltage Plug-On Load Center, Main Lug, 125A, 30 Spaces/48 Circuits, NEMA 1

Product Description

The Siemens SN3048L1125 is a single-phase low voltage plug-on load center designed for efficient electrical distribution. This load center features a main lug connection and can accommodate up to thirty one-inch spaces for a maximum of forty-eight circuits. It is rated for 120/240 VAC at 125 amperes, making it suitable for standard residential and commercial applications.

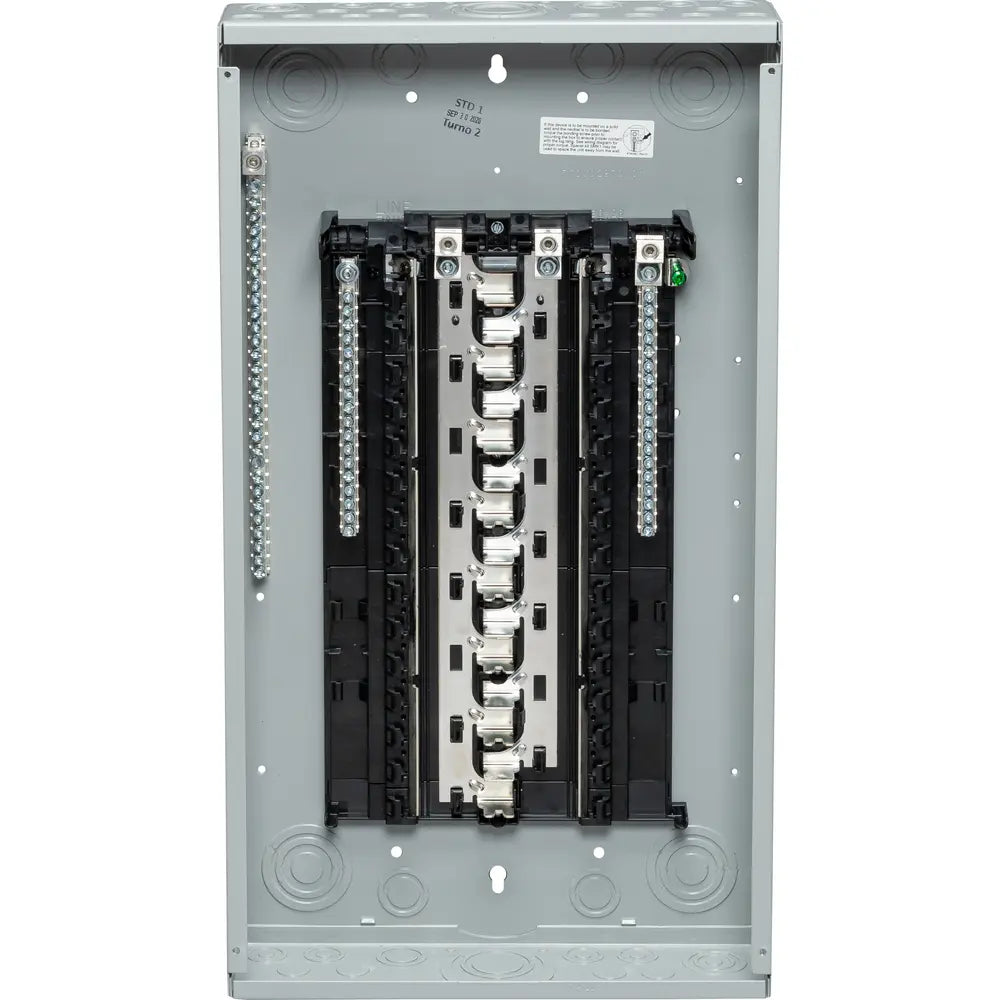

• Aluminum bus and gray trim design
• Complies with NEMA Type 1 standards for indoor use
• UL listed for safety and reliability

Product Highlights

This load center is ideal for residential and light commercial installations. It allows for easy circuit management and expansion while ensuring safety and performance. The durable aluminum bus provides excellent conductivity.

Product Information

Standard Information

• Type: Load Centers
• Mounting: Surface

Technical Specifications

• UPC: 804766703454
• Voltage Rating: 120/240 VAC
• Amperage Rating: 125 Amperes
• Interrupt Rating: 100 kAIC
• Number Of Spaces: 30
• Height: 27.95 Inches
• Width: 15.74 Inches
• Depth: 4.33 Inches
