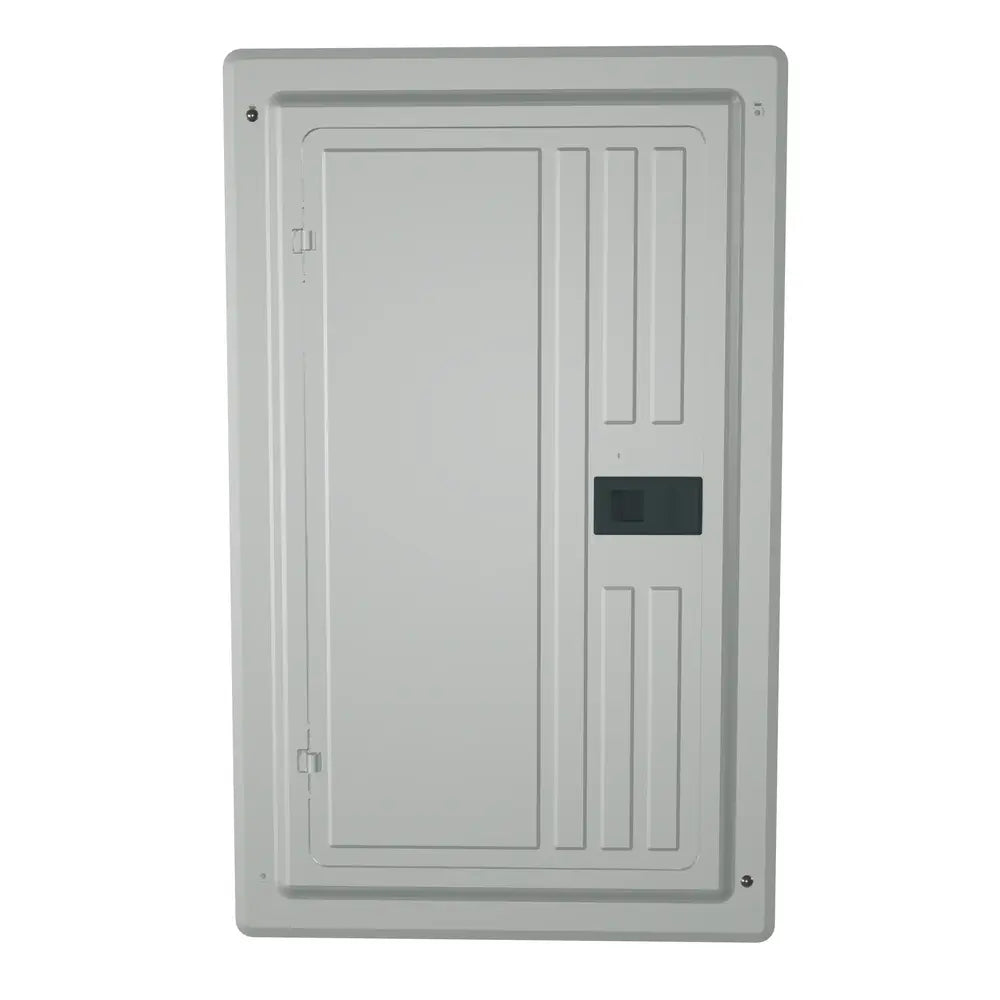

Siemens SN2448L1125 Single-Phase Low Voltage Load Center 125A 24 Spaces NEMA 1

Product Description

Siemens SN2448L1125 is a single-phase low voltage load center designed for versatile power distribution. This model features a main lug connection and accommodates up to twenty-four one-inch spaces, allowing for a maximum of forty-eight circuits. The load center operates on a one-phase three-wire system with a voltage rating of one hundred twenty to two hundred forty VAC and is rated for one hundred twenty-five amperes with a one hundred kAIC interrupt rating.

• Impact-resistant aluminum bus for enhanced performance
• NEMA Type 1 enclosure suitable for indoor installations
• UL certified for reliability and safety

Product Highlights

This load center is built with user flexibility in mind, making it ideal for residential and light commercial applications.

Product Information

Standard Information

• Phase: Single-Phase
• Mounting: Surface

Technical Specifications

• Width: 15.74 inches
• Height: 4.33 inches
• Length: 26.98 inches
• Weight: 26.89 pounds
• NEMA Rating: NEMA 1
• Voltage Rating: 120/240 VAC
• Amperage Rating: 125 amperes
• Interrupt Rating: 100 kAIC
• Number Of Spaces: 24
• Country of Origin: MX
• Wiring Configuration: 3-Wire
