Siemens SN2040L1200 200A Main Lug Load Center 20 Spaces / 40 Circuits

Product Description

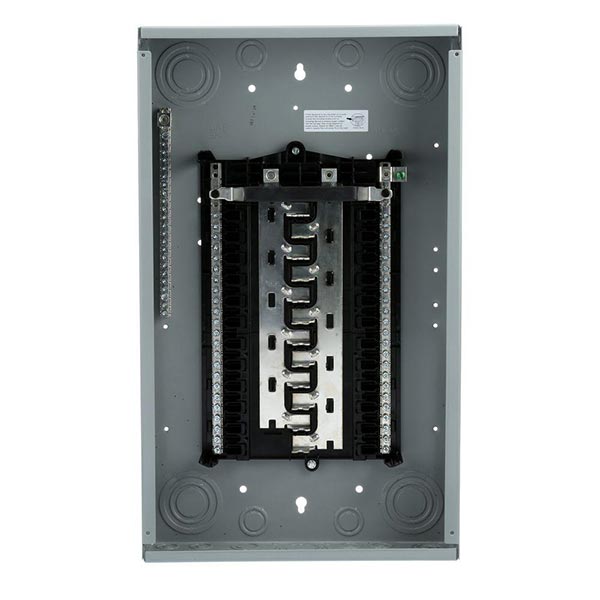

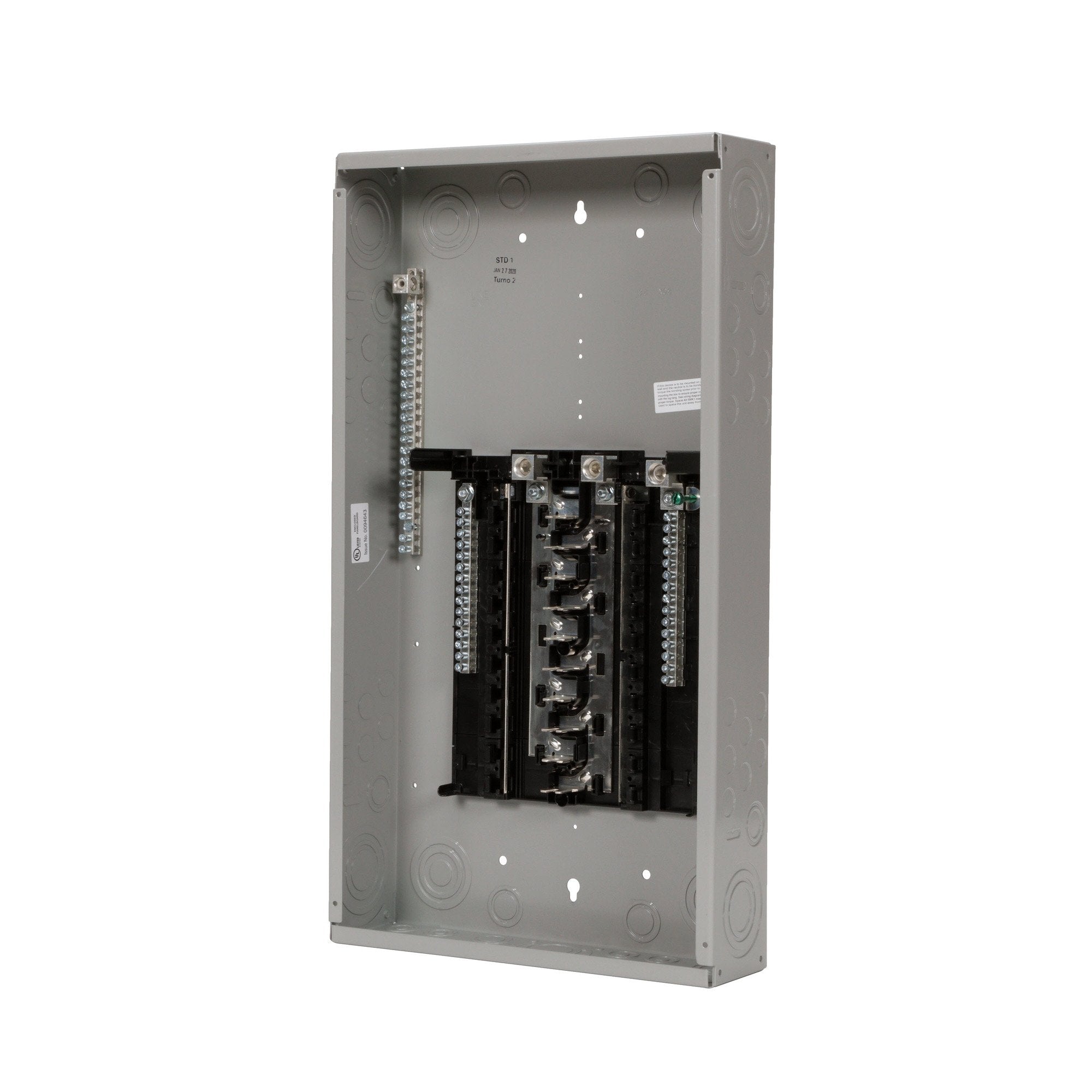

The Siemens SN2040L1200 is a load center that features a 200 amp main lug with 20 spaces, allowing for a maximum of 40 circuits. This product operates on a one-phase, three-wire system rated at 120/240 volts. The load center includes an aluminum bus and is housed in a NEMA Type 1 enclosure designed for indoor use.

• 200 amp capacity
• 20 spaces for breakers, accommodating up to 40 circuits
• Aluminum bus and NEMA Type 1 enclosure

Product Highlights

This load center is suited for residential and light commercial electrical distribution applications. It features a plug-on neutral design for quick installation and optimal wire bending space.

Product Information

Standard Information

• Catalog Number: SN2040L1200
• Manufacturer: Siemens

Technical Specifications

• Amperage Rating: 200 A
• Voltage Rating: 120/240 V
• Phase: 1
• Interrupt Rating: 100,000 A
• Enclosure Type: NEMA 1
• Application: Residential and light commercial electrical distribution
• Country of Origin: Mexico
• Item Weight: 28.88 lb
