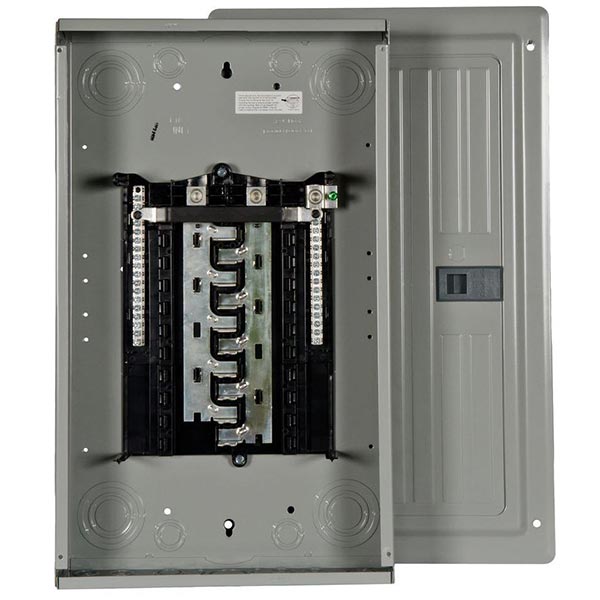

Siemens SN2040L1150 150A Main Lug Load Center 20 Spaces 40 Circuits

Product Description

Siemens SN2040L1150 is a main lug load center rated for one hundred fifty amperes. This unit has twenty spaces and supports up to forty circuits. It is designed for a single-phase, three-wire system and operates at a voltage of one hundred twenty to two hundred forty volts. The product features an aluminum bus and is enclosed in a NEMA type one enclosure which is suitable for indoor environments.

• Designed for indoor use with aluminum bus.
• Supports a maximum of forty circuits with twenty spaces.
• Rated for a maximum of one hundred fifty amps at 120/240 volts.

Product Highlights

This load center allows for easier circuit installation and features a concealed front overflow for safety. It includes great wire bending space, secure connections, and is UL listed for quality assurance.

Product Information

Standard Information

• Brand: Siemens
• Type: Main Lug Load Center

Technical Specifications

• Voltage: 120/240 V
• Maximum Amperage: 150 A
• Number of Spaces: 20
• Number of Circuits: 40
• Number of Phases: 1
• Application: Indoor
• Bus Material: Aluminum
• Mounting Type: Surface
• Warranty: 1 yr
• Manufacturing Standards: UL Listed
