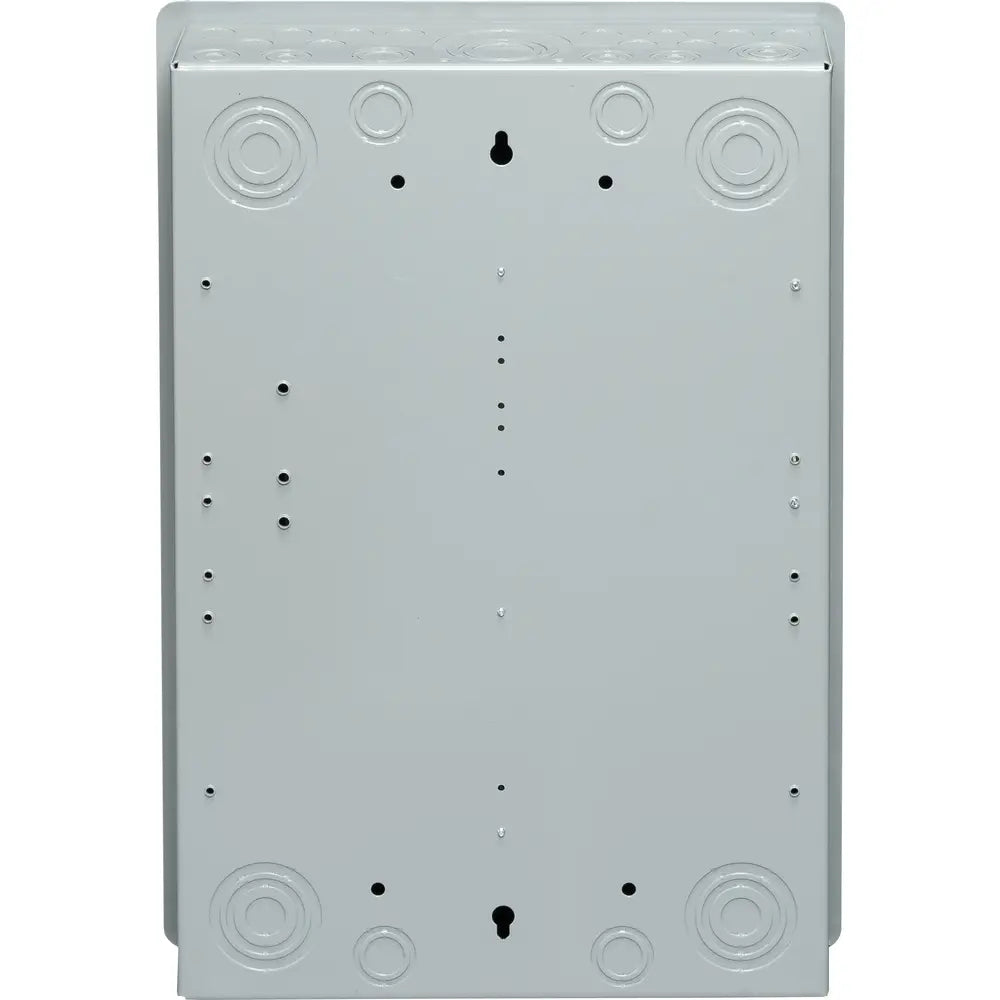

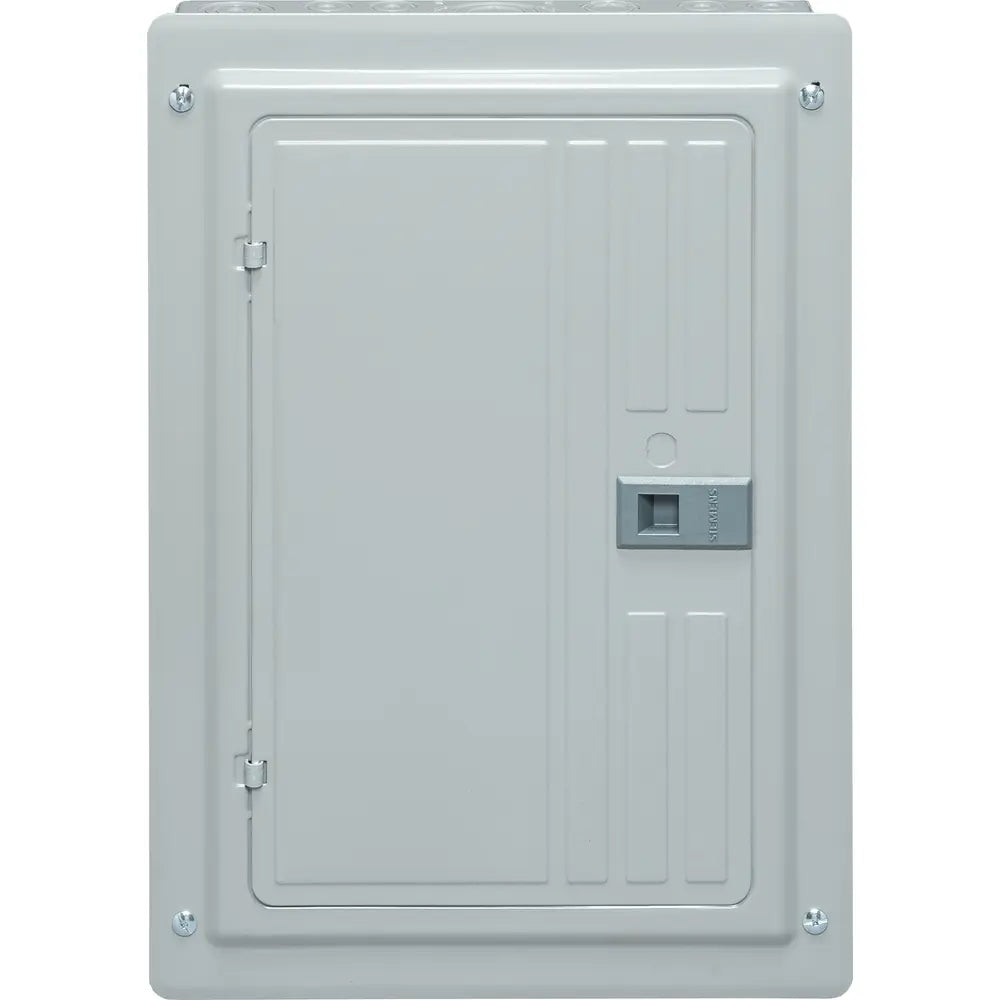

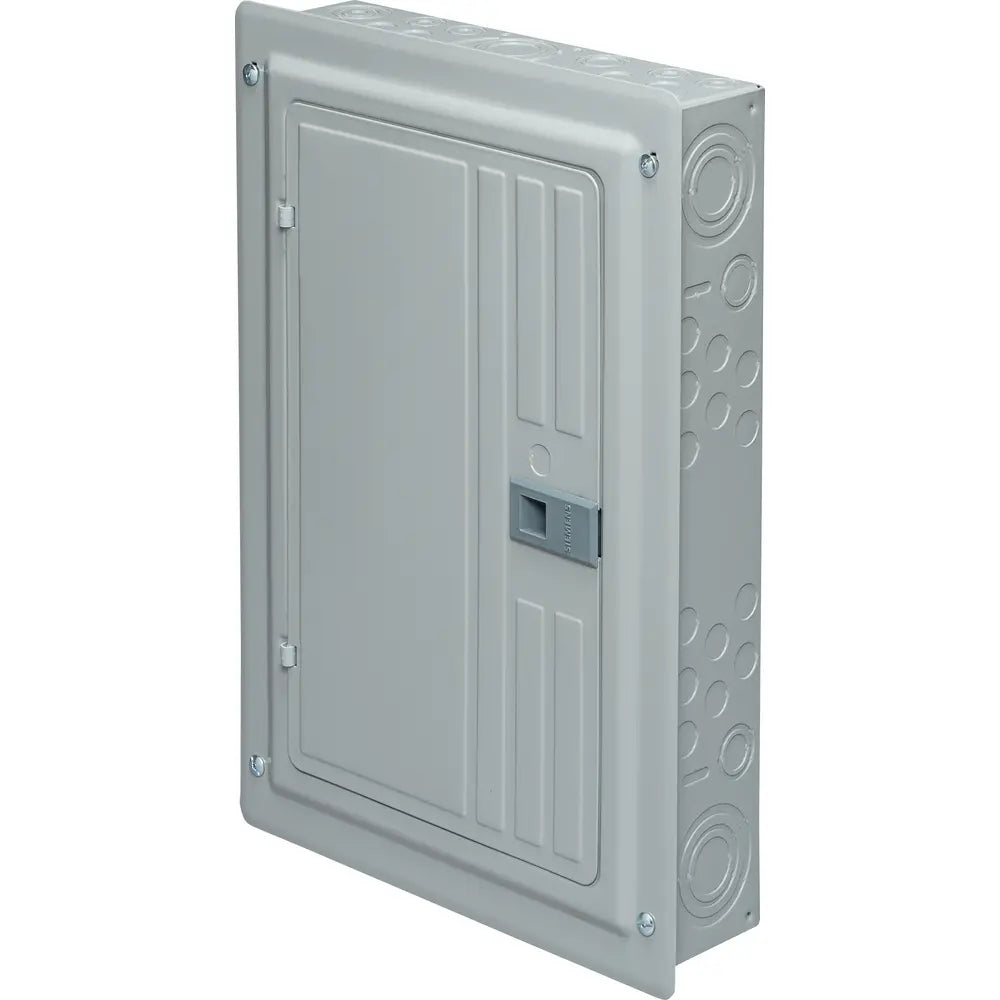

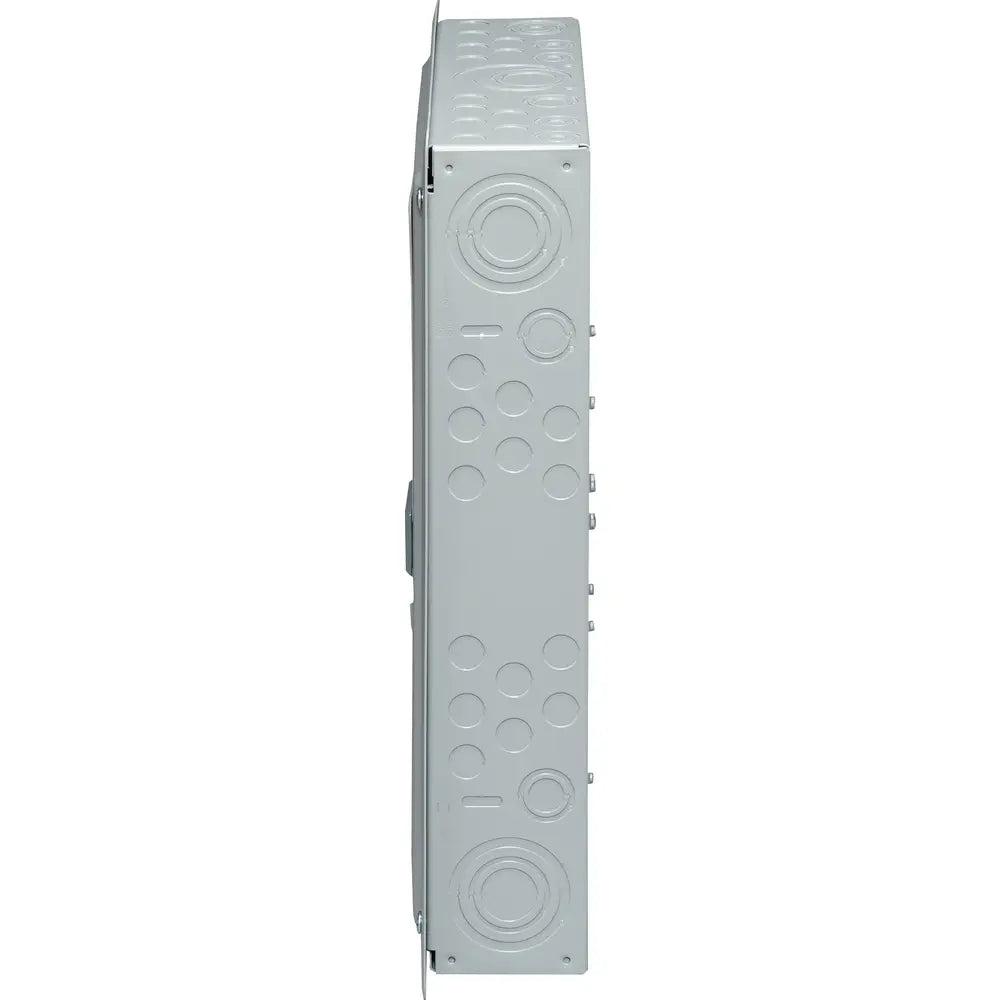

Siemens SN2040L1125 Single-Phase Low Voltage Plug-On Load Center, Main Lug, 125A, 20 Spaces/40 Circuits, NEMA 1

Product Description

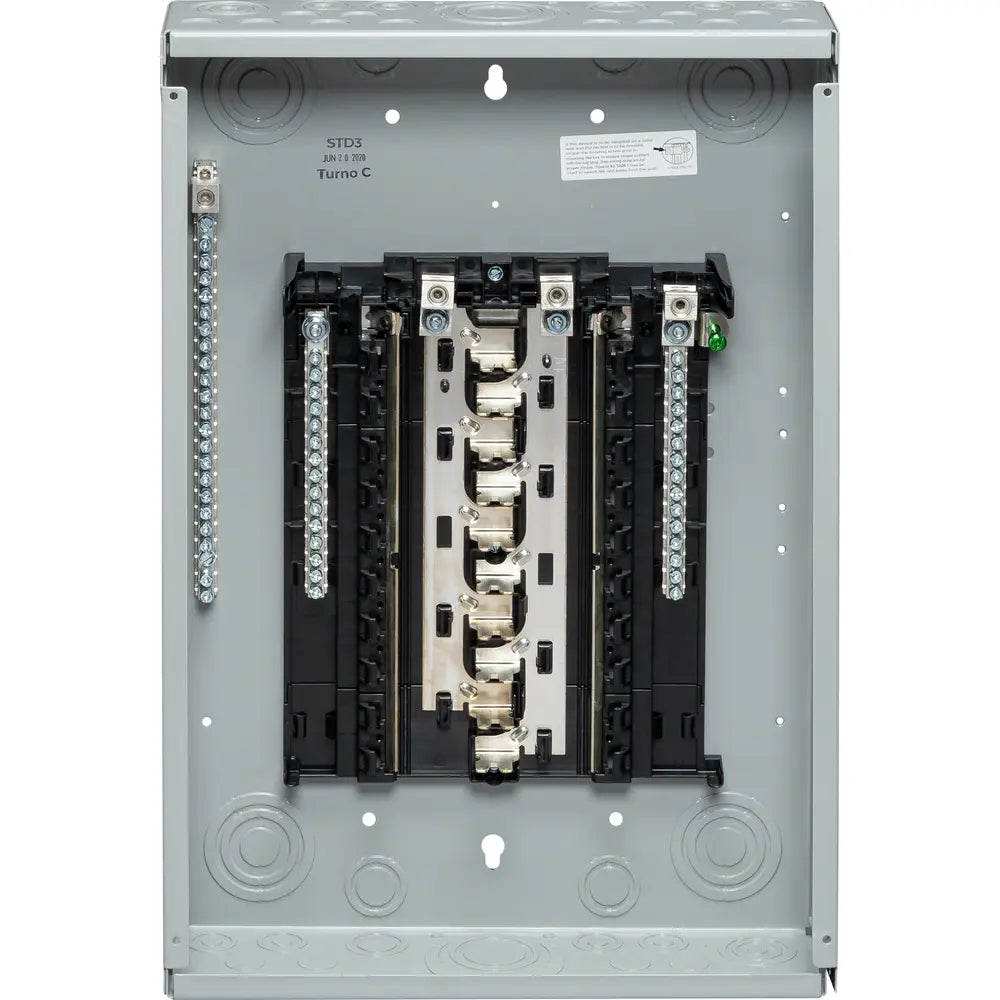

The Siemens SN2040L1125 is a single-phase low voltage plug-on load center. It features a main lug design with capacity for twenty one-inch spaces allowing a maximum of forty circuits. This load center operates on a three-wire system rated at one hundred twenty/ two hundred forty VAC and supports an amperage of one hundred twenty-five. It is designed with aluminum bus and conforms to NEMA Type 1 standards for indoor use.

• Designed for 125A with 20 spaces and capacity for 40 circuits
• Aluminum bus for optimal conductivity
• NEMA Type 1 enclosure suitable for indoor applications

Product Highlights

This load center is perfect for residential and light commercial applications where safety and efficiency are priorities.

Product Information

Standard Information

• Brand: Siemens Industry
• Manufacturer: Siemens Industry

Technical Specifications

• MPN: SN2040L1125
• Type: Load Centers
• Voltage Rating: 120/240 VAC
• Amperage Rating: 125 Amperes
• Interrupt Rating: 100 kAIC
• Number Of Spaces: 20
• Depth: 4.33 Inches
• Width: 15.74 Inches
• Height: 22.83 Inches
• Weight: 24.78 Pounds
• Mounting: Surface
• Wiring Configuration: 3-Wire
• NEMA Rating: NEMA 1
• Country of Origin: MX
