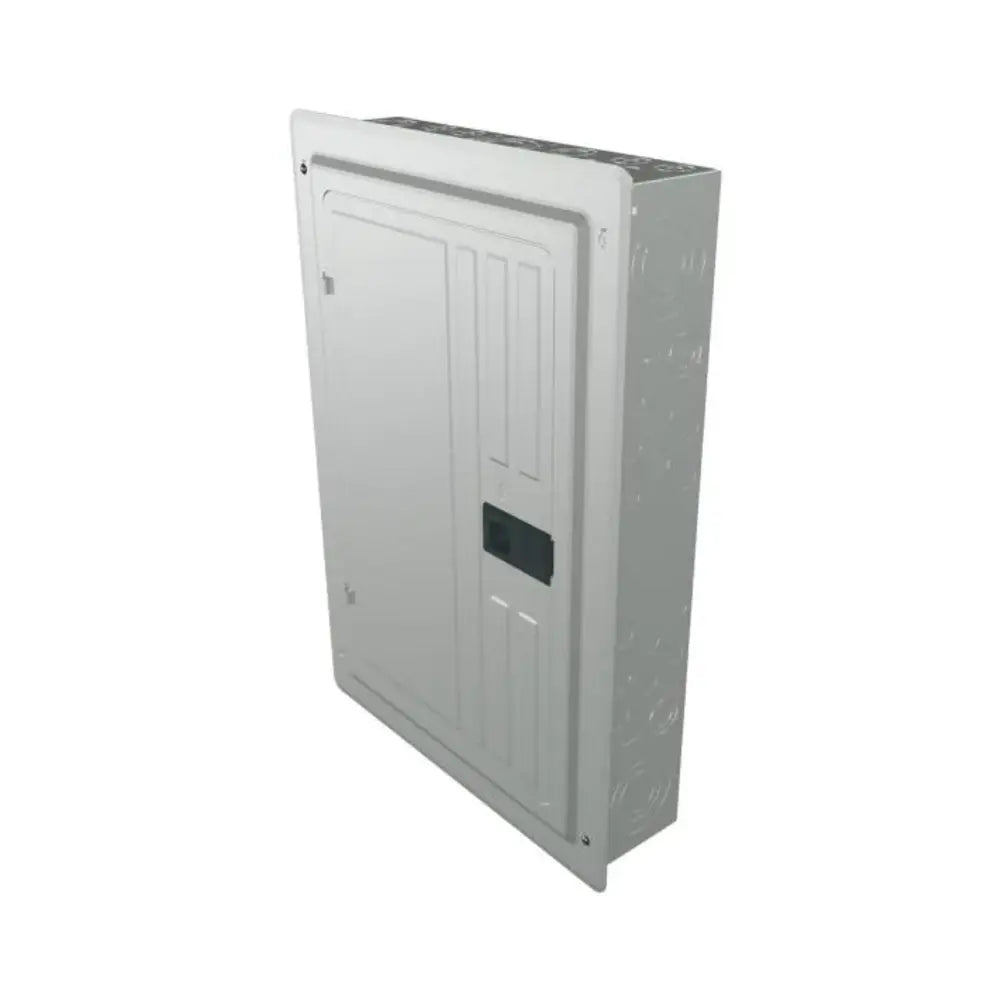

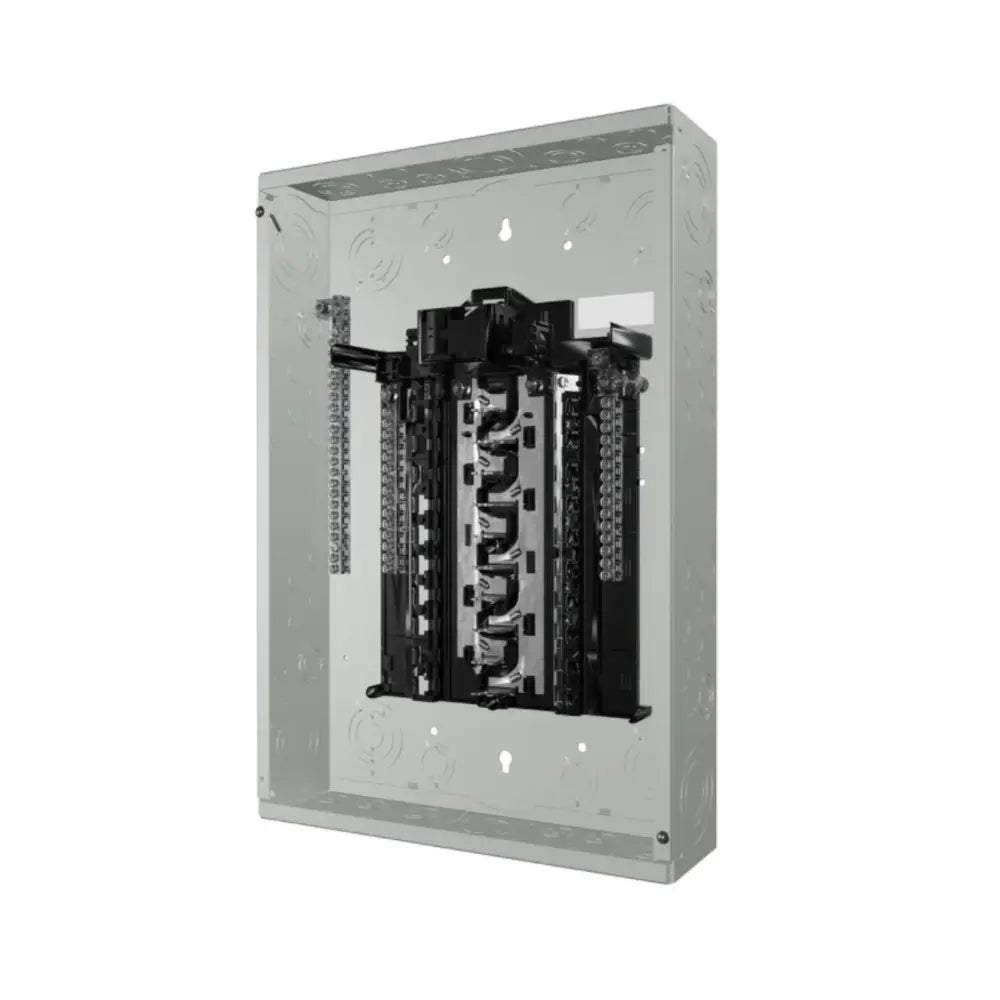

Siemens SN2040B1100 Single-Phase Low Voltage PON Assembled Main Breaker Load Center 100A 20 Spaces 40 Circuits

Product Description

Siemens SN2040B1100 is a single-phase low voltage assembled main breaker load center with a capacity of one hundred amperes. It offers twenty spaces for circuit connections, allowing a maximum of forty circuits. This product has an aluminum bus and is designed to fit within NEMA type one enclosure, suitable for indoor applications. The system is rated for one-phase three-wire configurations at one hundred twenty to two hundred forty volts.

• Twenty one-inch spaces with a maximum of forty circuits.
• Includes aluminum bus and rated for 100 amperes.
• NEMA type one enclosure for indoor use.

Product Highlights

The Siemens SN2040B1100 is designed for safe and reliable power distribution in residential and commercial settings, suitable for various electrical applications.

Product Information

Standard Information

• Brand: Siemens Industry
• Manufacturer: Siemens Industry

Technical Specifications

• UPC: 804766703287
• Type: Load Centers
• Phase: Single-Phase
• Voltage Rating: 120/240 VAC
• Amperage Rating: 100 Amperes
• Interrupt Rating: 22 kAIC
• NEMA Rating: NEMA 1
• Height: 22.83 Inches
• Width: 15.74 Inches
• Depth: 4.33 Inches
• Weight: 25.66 Pounds
• Number Of Spaces: 20
• Mounting: Surface
• Wiring Configuration: 3-Wire
• Country of Origin: MX
