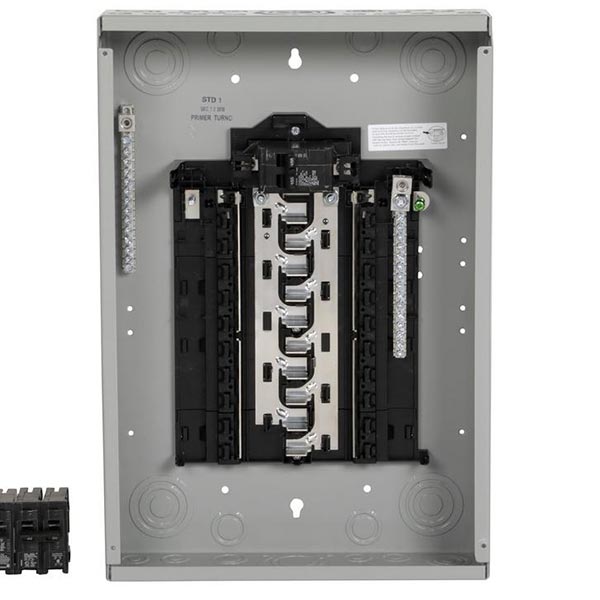

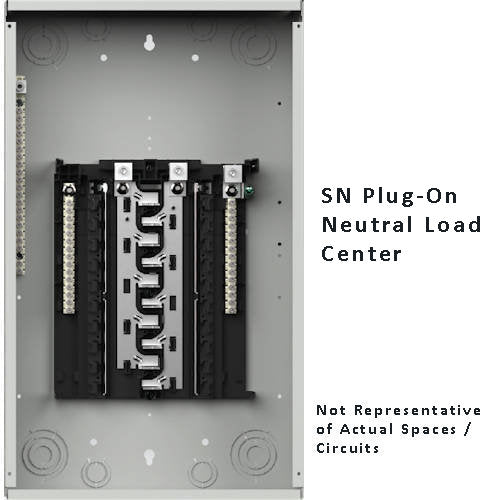

Siemens SN1632B1150 Main Breaker Load Center 150A 16 Spaces 32 Circuits NEMA 1

Product Description

The Siemens SN1632B1150 is a main breaker load center designed for efficient power distribution. This load center supports a 150 amp capacity and is equipped with sixteen spaces, accommodating up to thirty-two circuits. Its construction features an aluminum bus and provides a reliable NEMA 1 enclosure suitable for indoor installations. The system operates on a one-phase, three-wire configuration, functioning efficiently at 120/240 volts.

• Amperage Rating: 150 A
• Number of Spaces: 16
• Interrupt Rating: 22 kA

Product Highlights

This load center is specifically crafted for residential and light commercial applications, allowing easy connectivity for various circuits while maintaining safety standards.

Product Information

Standard Information

• Brand: Siemens
• Manufacturer: Siemens

Technical Specifications

• Package Height: 4.69 in
• Package Length: 26.06 in
• Package Width: 15.75 in
• Package Weight: 28.341 lb
• Country of Origin: MX
• Voltage Rating: 120/240 VAC
• Wiring Configuration: 3-Wire
• Breaker Type: Main Breaker
• Breaker Mounting: PON
• Enclosure Type: NEMA 1
• Series: Standard
• Power Rating: 120/240 VAC
• Number of Circuits: 32
• Breakers Configured: Plug-On Neutral
