Siemens SN1632B1125 Low Voltage Plug-on Neutral Ready Main Breaker Load Center, 1 Phase, 3 Wire, 16 Spaces, 32 Circuits, 125A, NEMA 1

Product Description

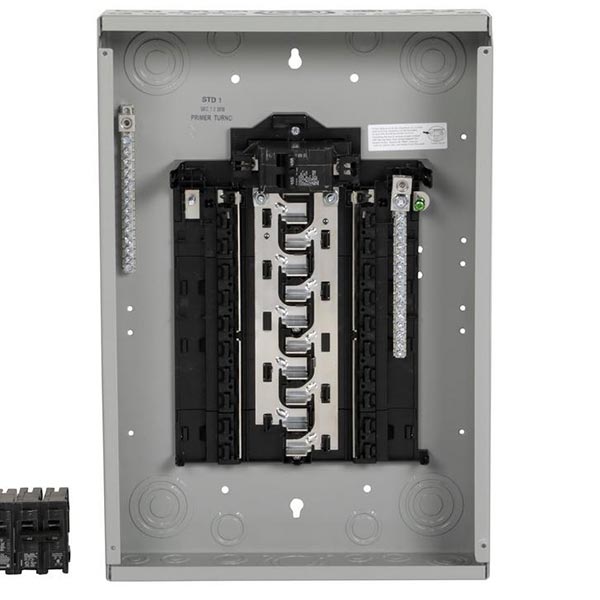

Siemens SN1632B1125 is a low voltage plug-on neutral ready main breaker load center. This load center offers 16 spaces which can support a maximum of 32 circuits. It is designed for a one-phase, three-wire system rated at 120/240 volts and has a capacity of 125 amperes. The unit features an aluminum bus and is housed in a NEMA 1 enclosure suitable for indoor use.

• Amperage rating: 125 A
• Interrupt rating: 22 kA
• Enclosure type: NEMA 1

Product Highlights

The Siemens SN1632B1125 is ideal for residential and commercial applications where reliable power distribution is required. It supports various electrical configurations and is suitable for multiple circuit applications.

Product Information

Standard Information

• Brand: Siemens
• MPN: SN1632B1125

Technical Specifications

• Amperage Rating: 125 A
• Breaker Type: Main Breaker
• Number of Spaces: 16
• Number of Circuits: 32
• Power Rating: 120/240 VAC
• Package Height: 4.69 inches
• Package Length: 23.06 inches
• Package Width: 15.75 inches
• Package Weight: 25.3 lb
