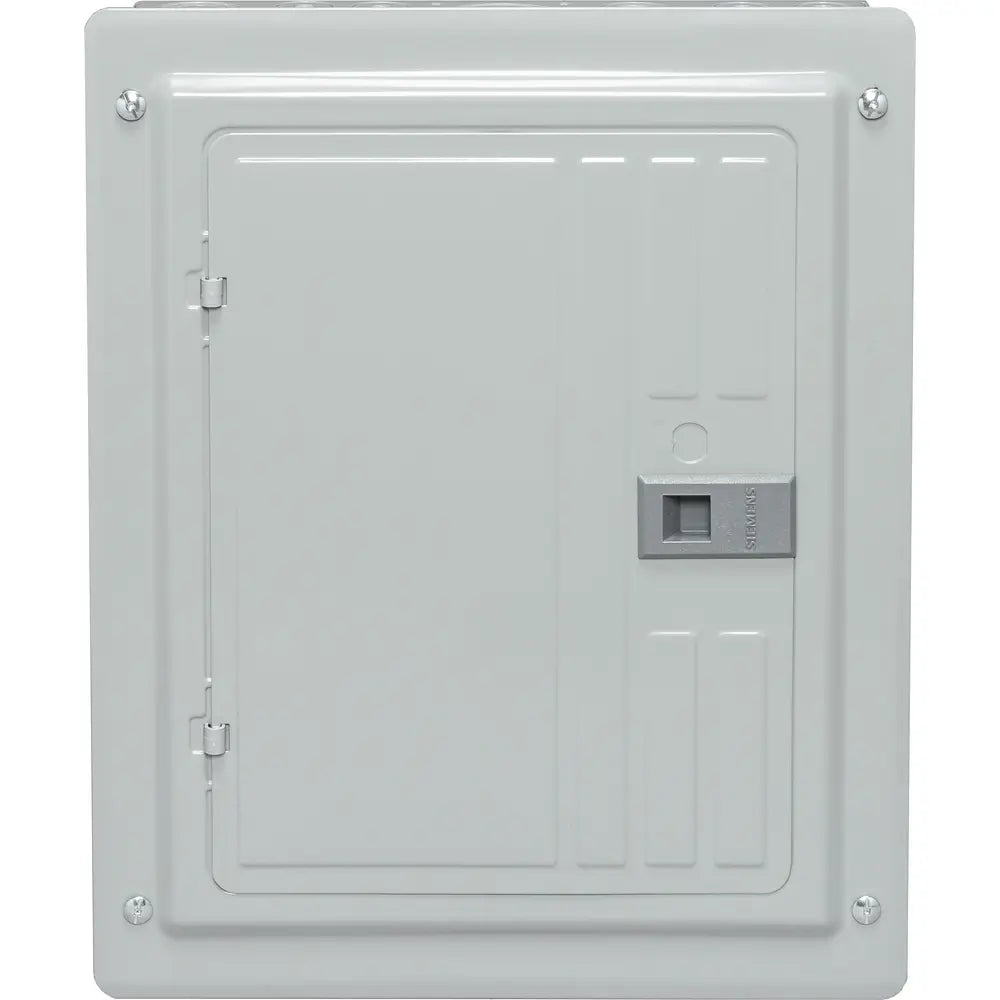

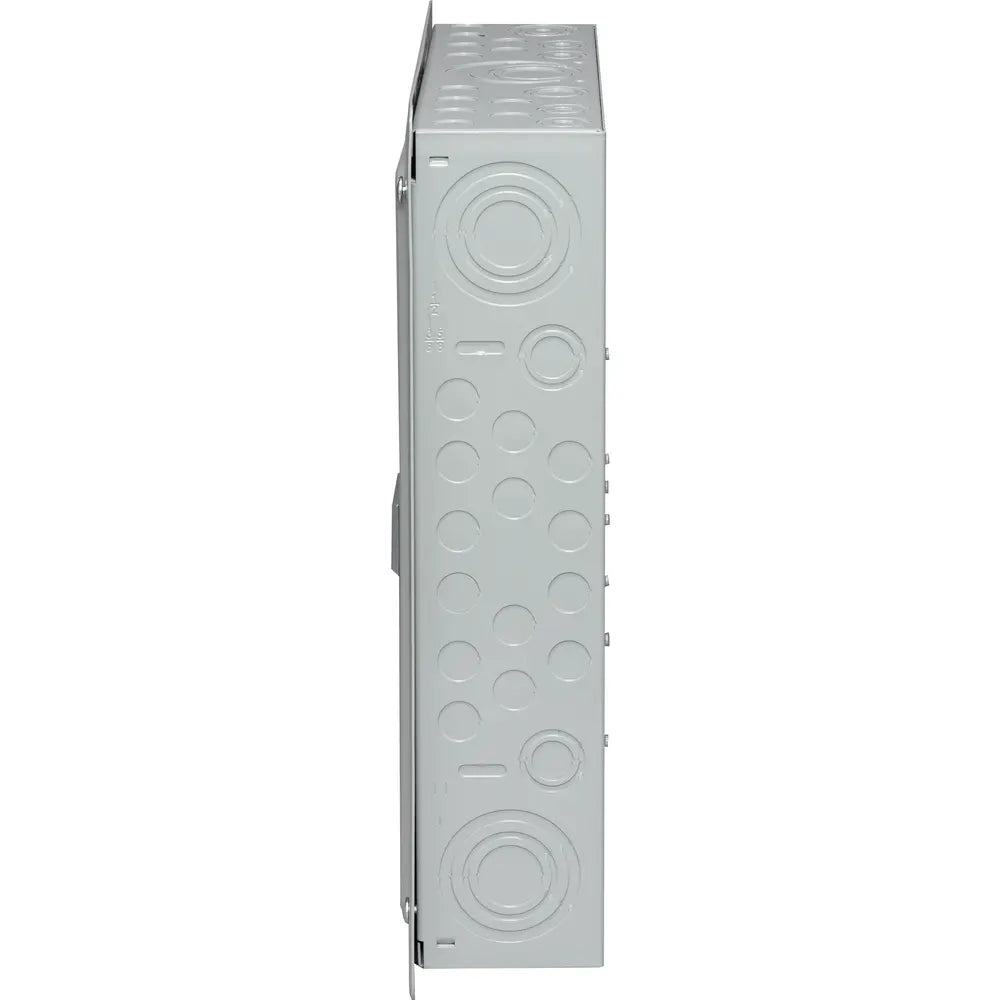

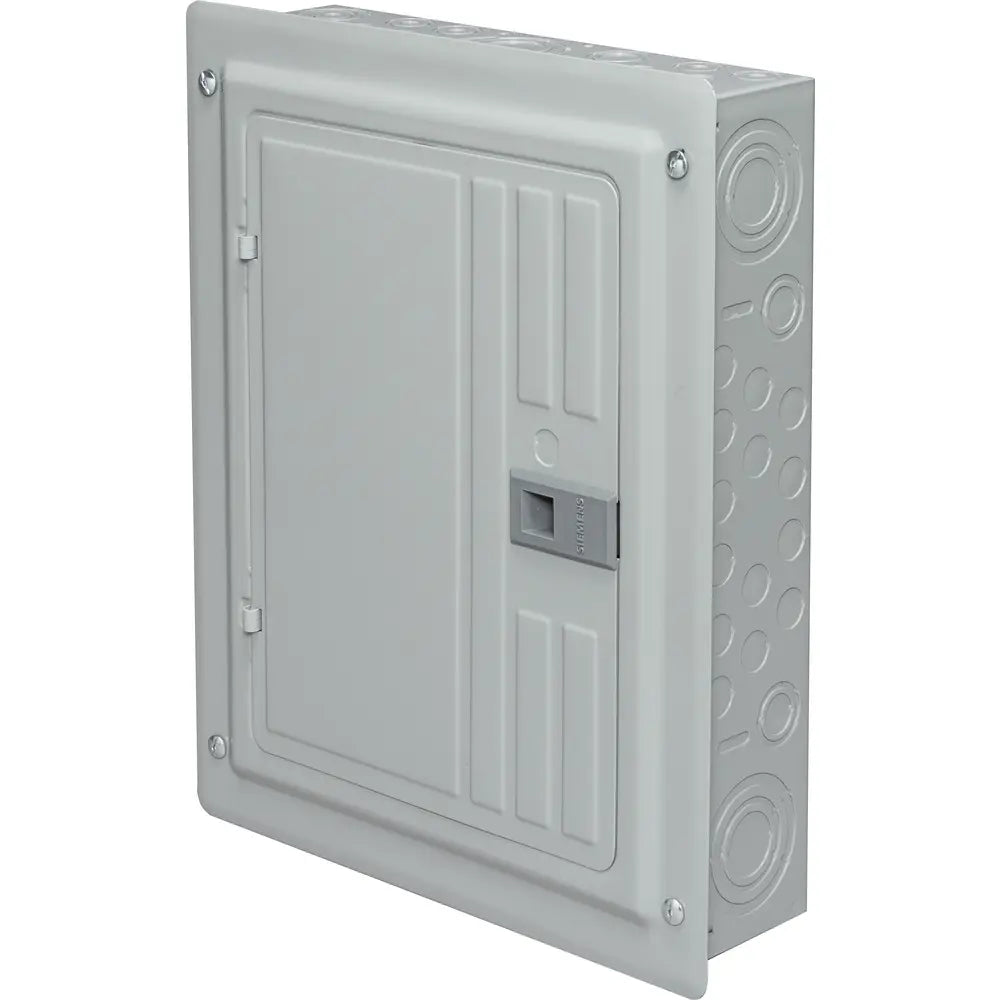

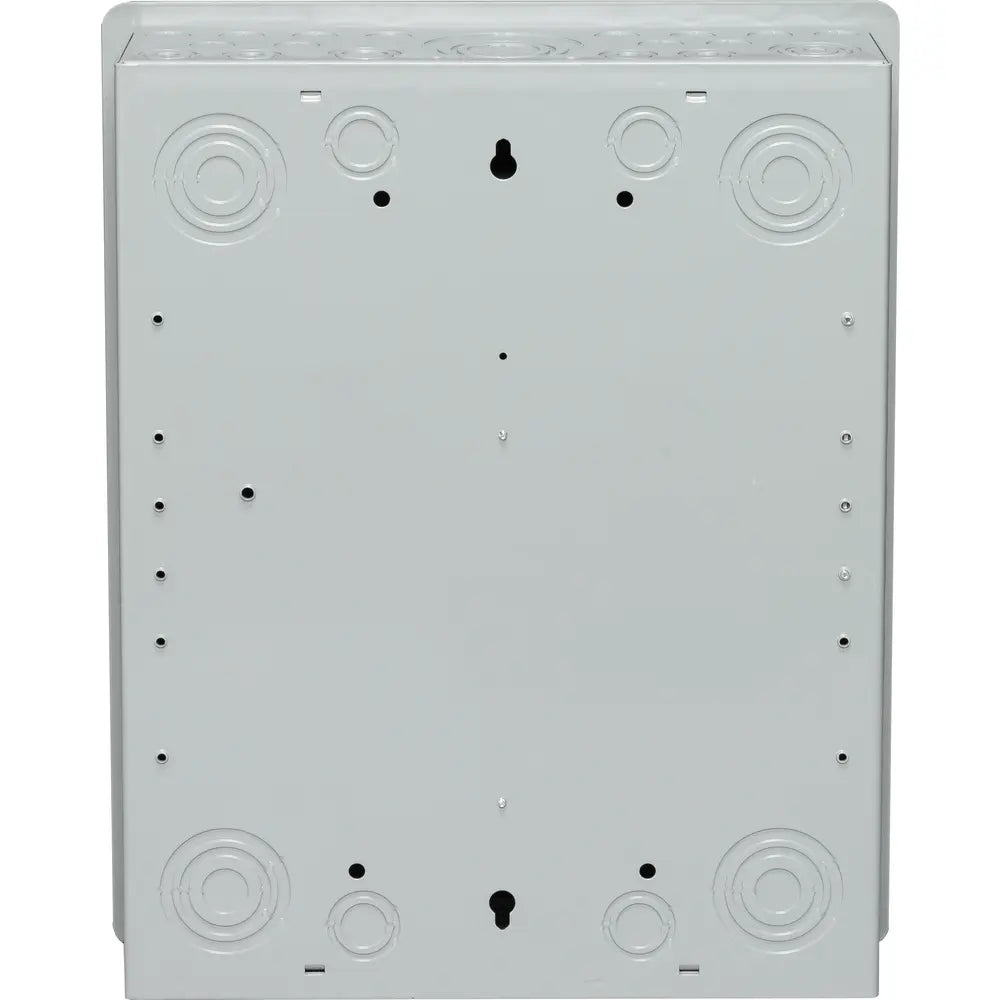

Siemens SN1224L1125 Single-Phase Low Voltage Plug-On Load Center 125A 12 Spaces/24 Circuits

Product Description

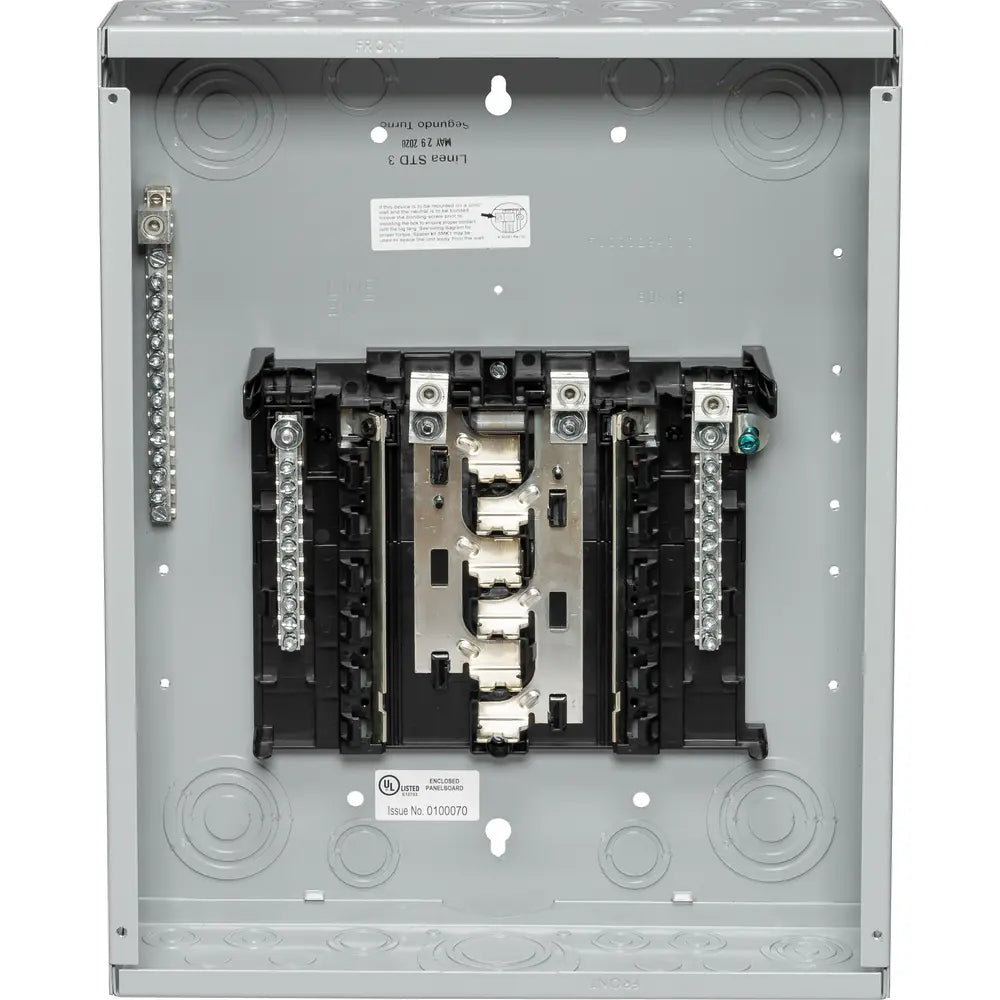

The Siemens Industry SN1224L1125 is a single-phase low voltage plug-on load center. It features a main lug and supports 12 one-inch spaces to allow a maximum of 24 circuits. This load center operates on a three-wire system rated for 120/240 VAC with a current of 125 Amperes. The unit has a 100 kAIC interrupt rating, making it a reliable choice for various applications.

• Single-phase, 3-wire system
• Rated for 120/240 VAC and 125 Amperes
• NEMA Type 1 enclosure for indoor use

Product Highlights

This load center is designed for efficient power distribution and simple installation. With aluminum bus and a grey trim, it fits well in any indoor setting, ensuring safety and reliability.

Product Information

Standard Information

• Brand: Siemens Industry
• Manufacturer: Siemens Industry

Technical Specifications

• Type: Load Centers
• Phase: Single-Phase
• Voltage Rating: 120/240 VAC
• Amperage Rating: 125 Amperes
• Interrupt Rating: 100 kAIC
• Number Of Spaces: 12
• NEMA Rating: NEMA 1
• Depth: 4.33 Inches
• Width: 15.74 Inches
• Height: 19.68 Inches
• Weight: 20.57 Pounds
• Mounting: Surface
• Wiring Configuration: 3-Wire
• Country of Origin: MX
• Stock Code: 0546-5712
