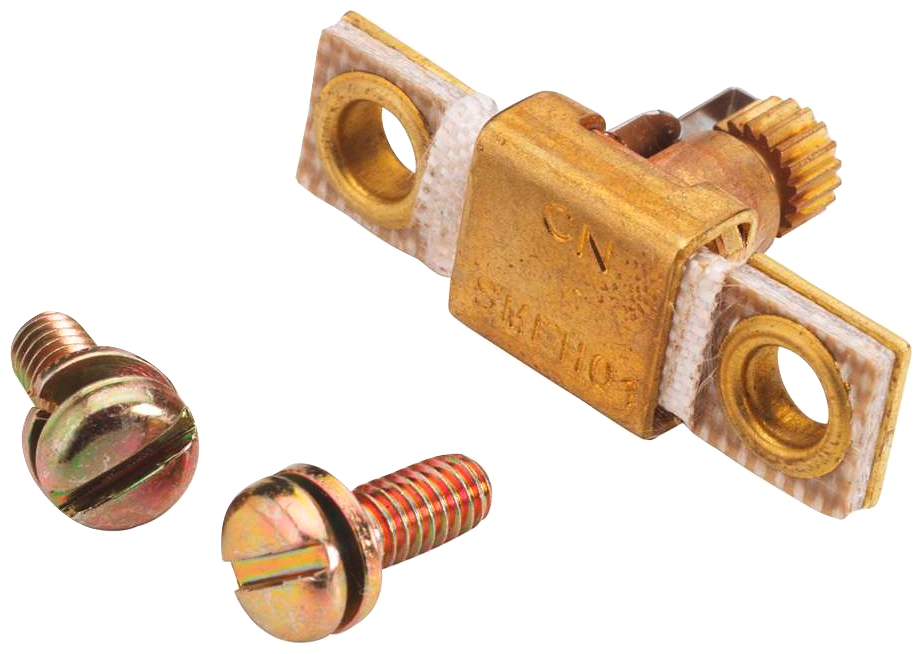

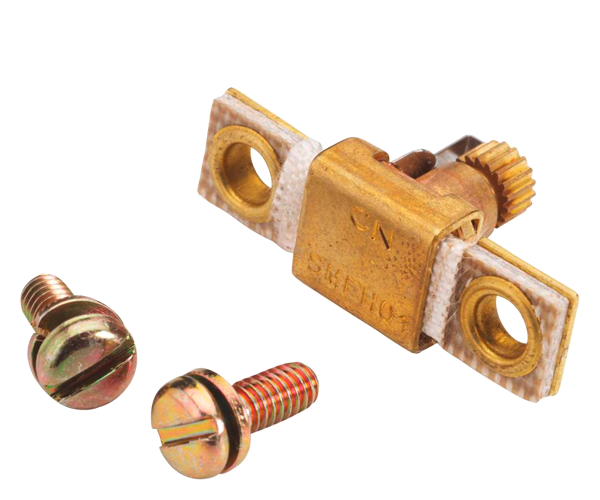

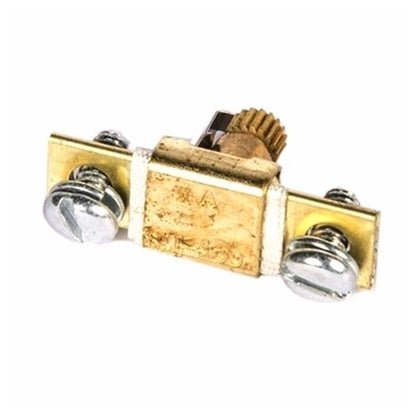

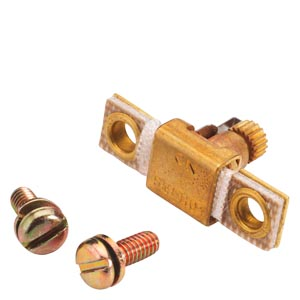

Siemens SMFH41 heater element 6.42 to 6.79 amp

Product Description

The Siemens SMFH41 heater element is designed for manual starters. This standard trip overload relay heater element is suitable for single-phase and polyphase motors. It supports motor full load amps from 6.42 to 6.79A and provides thermal overload protection with Trip Class 20, and is rated for use in ambient temperatures up to 40 degrees C.

• For use with manual starters and overload relays
• Suitable for single phase and polyphase motors
• Full load amps: 6.42 to 6.79 Amp

Product Highlights

The Siemens SMFH41 heater element provides reliable overload protection for motors in various applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: SMFH41
• Country of Origin: Mexico

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: SMFH41
• Type: Heater Element
• Applications: Single phase and polyphase motors
• Frequency: 60 Hz
• Voltage: 600 Volt
• Sub Brand: Heaters
• Width: 1.100 in
• Height: 0.8 Inch
• Length: 2.4 Inch
• Product UPC: 75455425960
• 12-Digit UPC: 754554259604
• Country of Origin: Mexico
• Full Load Amps: 6.42 to 6.79
• Heater Element: Heater Element
• For Use With: Manual Motor
• Product Type: Heater Element
• Model: SMFH41
• Features: Heater Element, Trip Class 20, Overload Protection Type Thermal, Full Load Current 6.42 to 6.79 A
