Siemens SMFH39 5.36 to 5.85 Amp Standard Trip Overload Relay Heater Element

Product Description

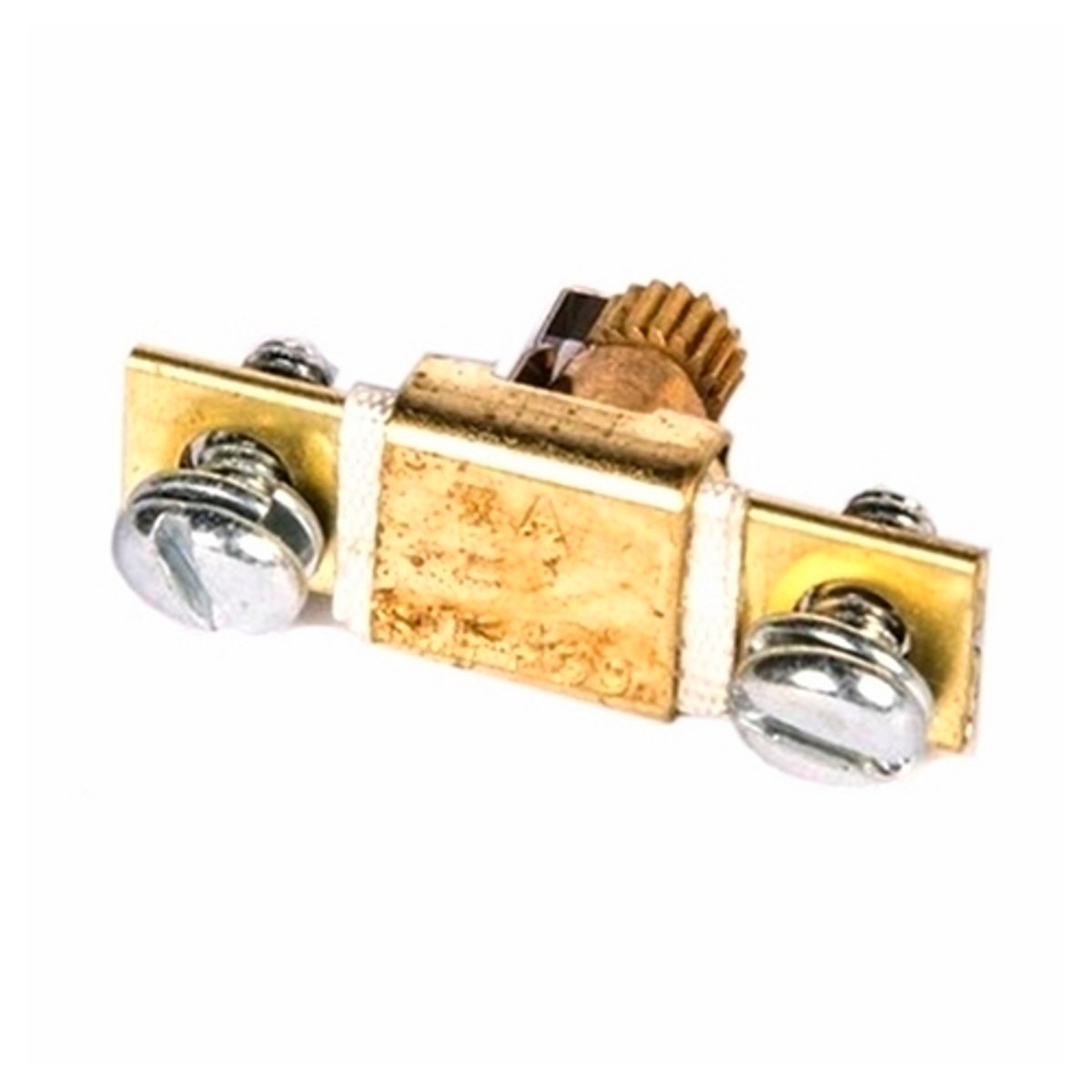

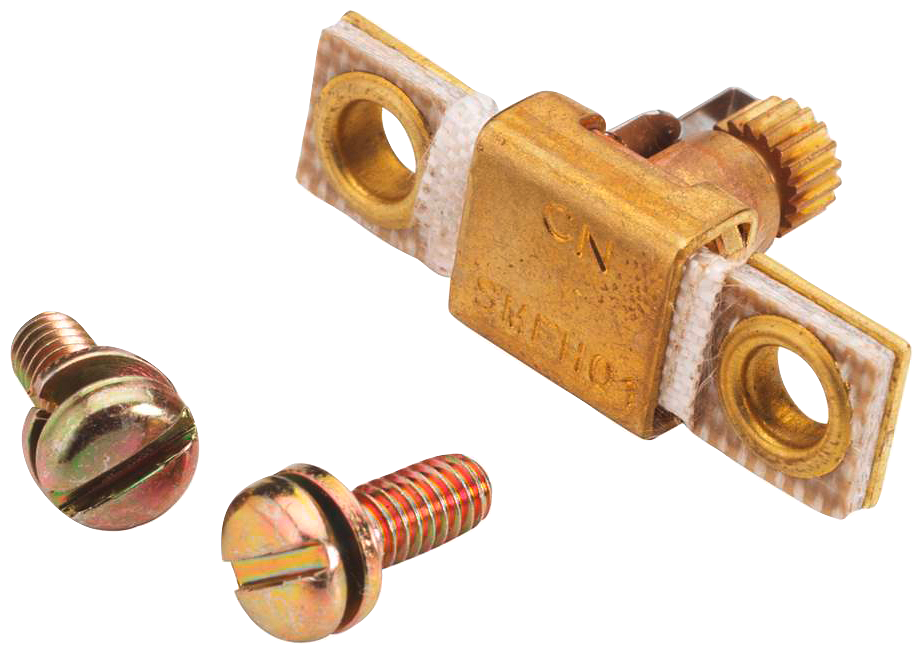

The Siemens SMFH39 is a heater element for manual starters, designed for single-phase and polyphase motors. It functions as a standard trip overload relay heater element. The heater is suitable for use with manual starters.

• Suitable for single phase and polyphase motors
• Voltage rating of 600V
• Frequency of 60 Hz

Product Highlights

The Siemens SMFH39 heater element is designed for overload relay and manual starter applications, ensuring reliable motor protection.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: SMFH39
• Country of Origin: Mexico

Technical Specifications

• Type: Class SMF
• Brand: Siemens
• Width: 1.100 in
• Height: 0.8 Inch
• Length: 2.4 Inch
• Voltage: 600 Volt
• Standard: CSA,CUL
• Frequency: 60 Hz
• Sub Brand: Heaters
• Applications: Single phase and polyphase motors
• Catalog Number: SMFH39
• Manufacturer: Siemens
• Country of Origin: Mexico
• Made in USA: No
• Application: Single phase and polyphase motors
• Frequency Rating: 60 HZ
• Voltage Rating: 600 V
• Full Load Amps: 5.36-5.85
• Alternate Catalog Number: US2:SMFH39
• Full Load Current: 5.36 to 5.85 A
• Temperature Rating: 104 °F
• For Use With: Siemens Overload Relays
• Product Type: Manual Motor Control
