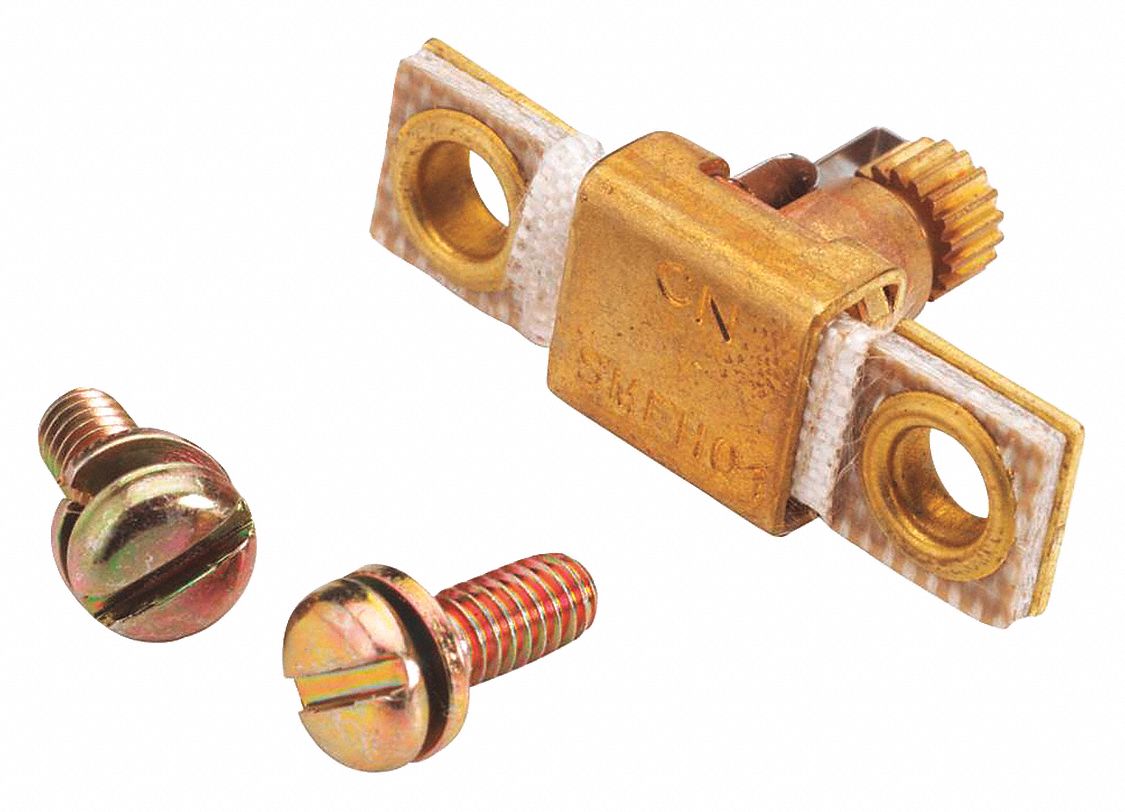

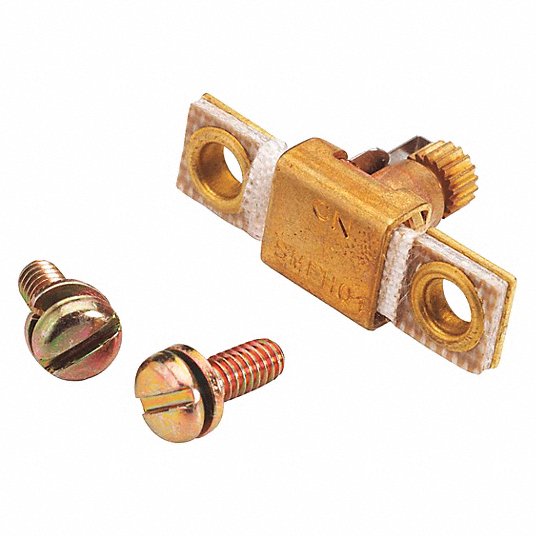

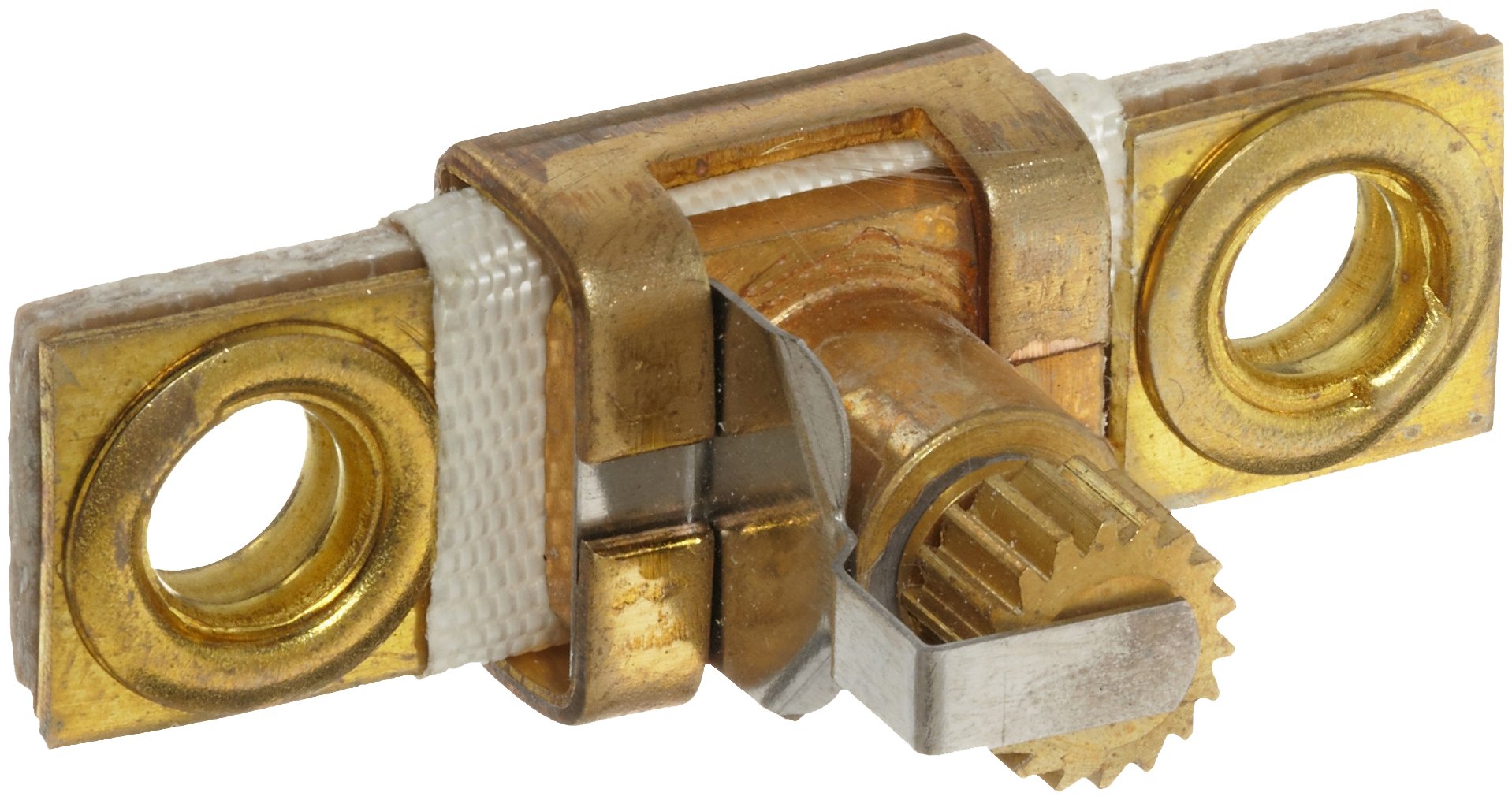

Siemens SMFH17 Standard Trip Overload Relay Heater Element 0.79-0.85 Amp (Pack 1)

Product Description

Siemens SMFH17 is a Class SMF heater element for overload relays, providing a standard trip range of 0.79 to 0.85 A for full-load motor protection. It is intended for manual motor control and manual starter applications and functions as a thermal unit that opens contacts when current-induced heating reaches the trip threshold, interrupting power to downstream equipment.

• Class SMF standard-trip heater element rated 0.79 to 0.85 A full-load current
• Designed for use with overload relays, manual motor control and manual starters
• Ambient temperature rating 40 °C; functions as a thermal unit to interrupt power at trip conditions

Product Highlights

Class SMF heater element for overload relays; 0.79–0.85 A trip range; for manual motor control and manual starters

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: SMFH17
• Country of Origin: Mexico

Technical Specifications

• Brand: Siemens
• Manufacturer: Siemens
• Manufacturer Part Number: SMFH17
• Type: Class SMF heater element
• Full Load Current Range: 0.79 to 0.85 A
• Trip Class: 20
• Application: Overload relay; full-load motor; manual motor control; manual starter
• Ambient Temperature Rating: 40 °C
• Maximum Operating Temperature: 104 °F
• Country of Origin: United States
• Package Quantity: 1
• Package Dimensions (inches): 4.10 L x 0.40 W x 1.90 H
• Package Dimensions (cm): 10.414 L x 1.016 W x 4.826 H
• Package Weight (g): 23.0
• UPC: 754554259352
• GTIN: 00754554259352
• Product Type: Heater element / electronic component
• Used With: Overload relay, full-load motor
