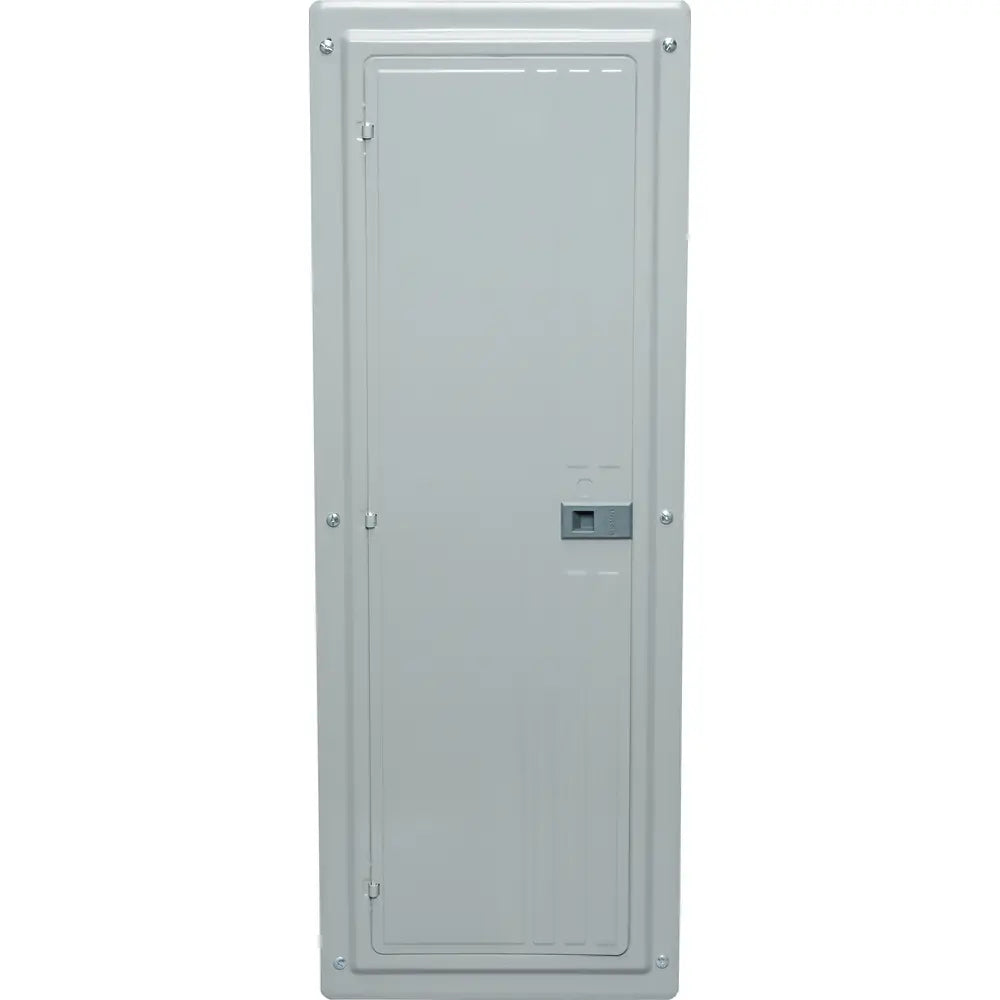

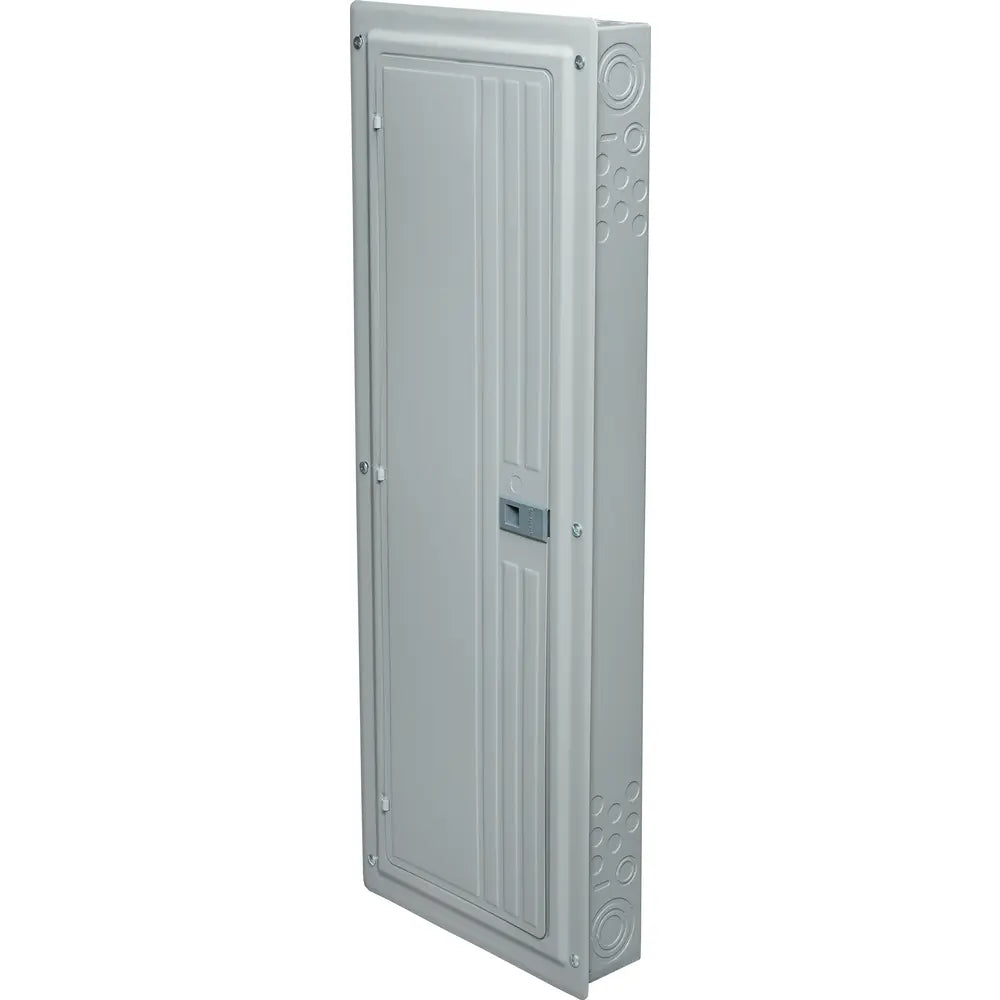

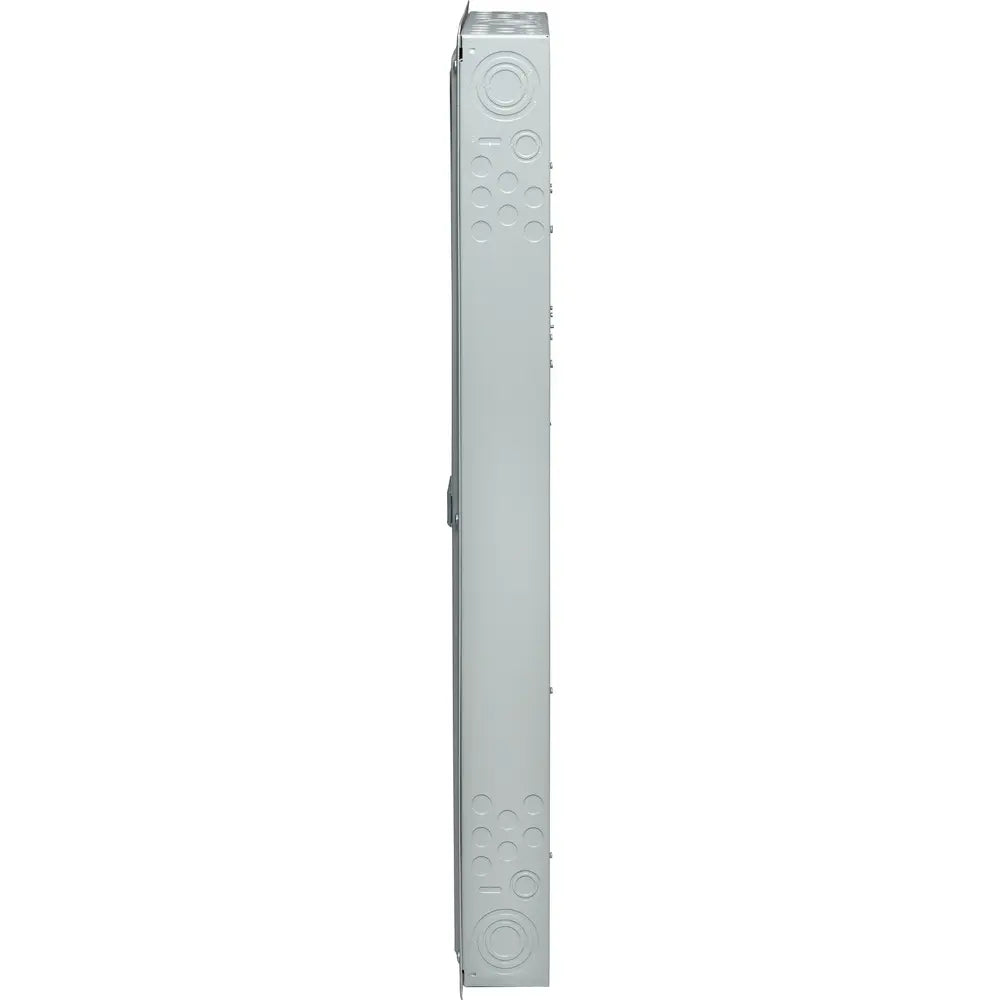

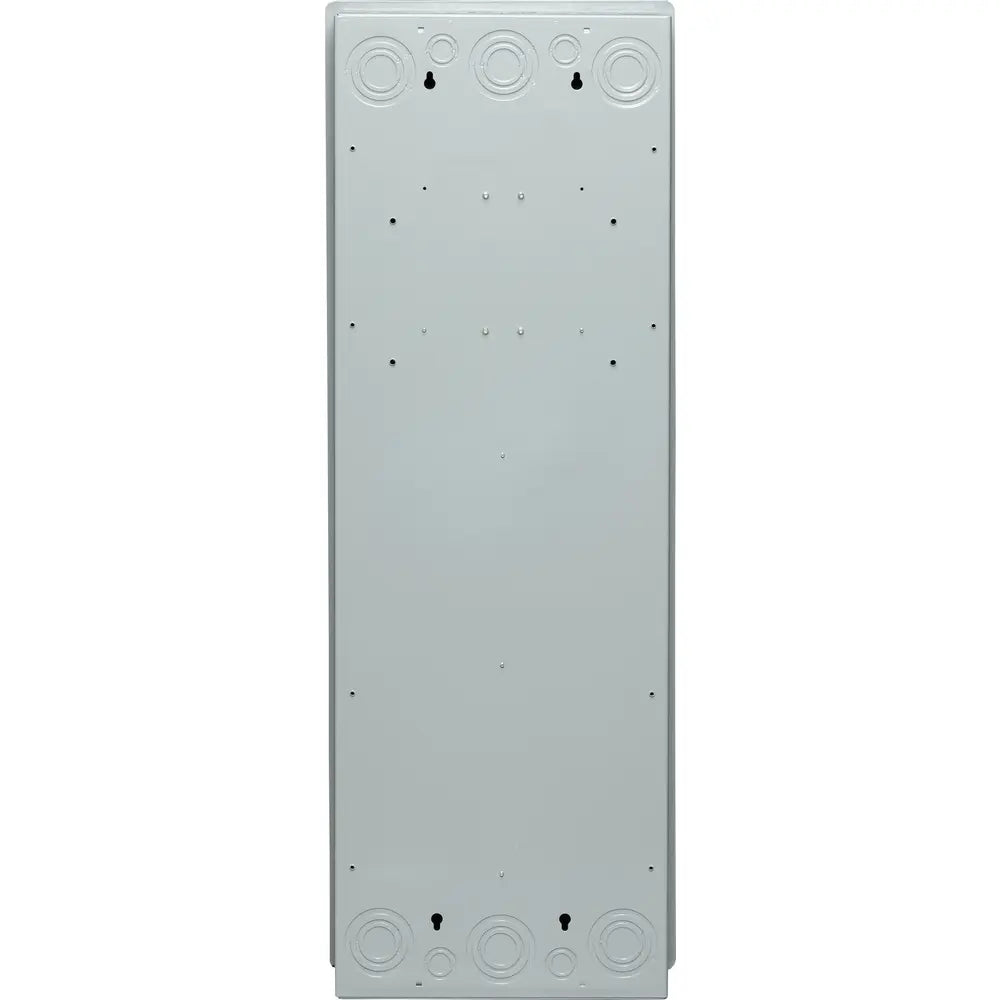

Siemens S4260B3200 Three-Phase Low Voltage ES Series Load Center, Main Breaker, 200A, 42 Spaces/60 Circuits, NEMA 1

Product Description

Siemens Industry offers the S4260B3200, a three-phase low voltage ES Series load center. This unit features a main breaker rated for two hundred amperes and accommodates up to sixty circuits with forty-two one-inch spaces. It is suitable for use in three-phase four-wire systems with voltage ratings of one hundred twenty/240 volts or one hundred twenty/208 volts.

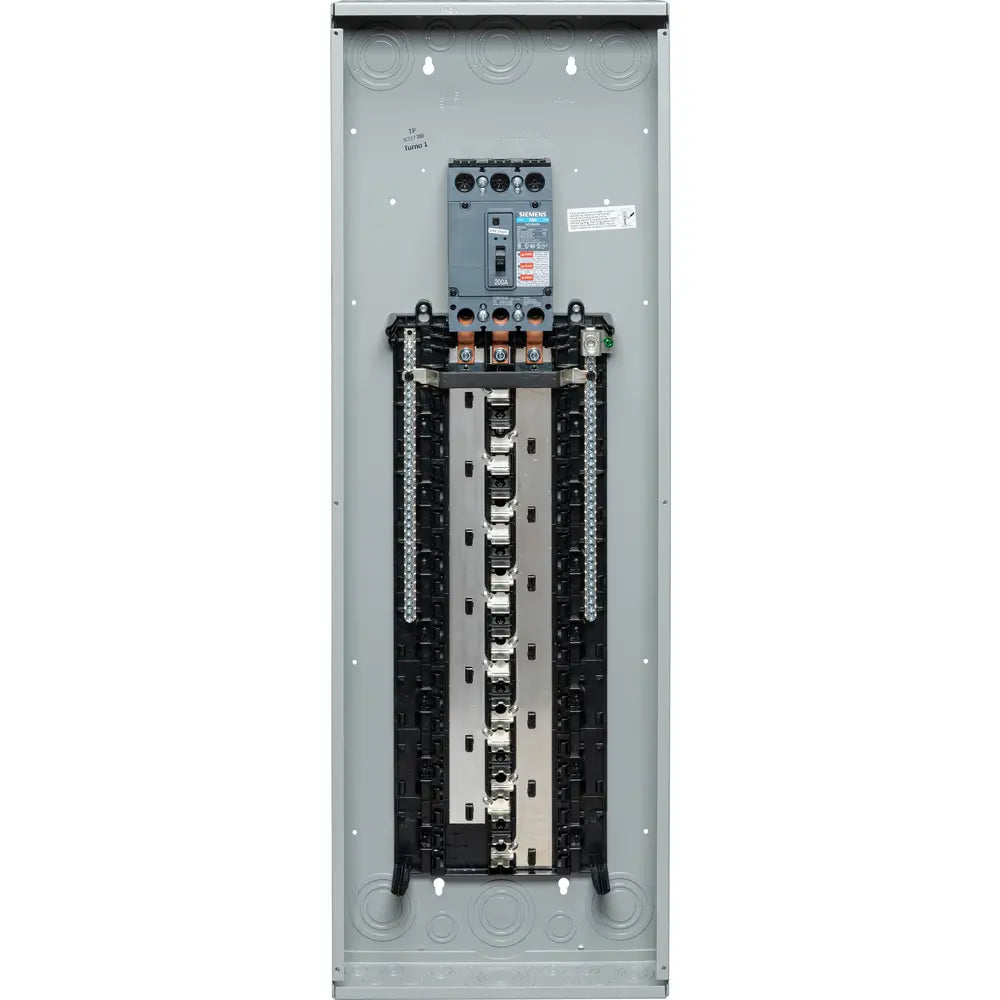

• Factory installed main breaker
• Aluminum bus construction
• NEMA 1 enclosure for indoor use

Product Highlights

This load center is designed for reliability in electrical distribution, featuring an interrupt rating of 10 kA and is UL listed.

Product Information

Standard Information

• Brand: Siemens Industry
• MPN: S4260B3200

Technical Specifications

• Type: Load Center
• Phase: 3-Phase
• Amperage Rating: 200 Amperes
• Voltage Rating: 120/240 VAC, 120/208 VAC
• Interrupt Rating: 10 kAIC
• Number Of Spaces: 42
• Wiring Configuration: 4-Wire
• NEMA Rating: NEMA 1
