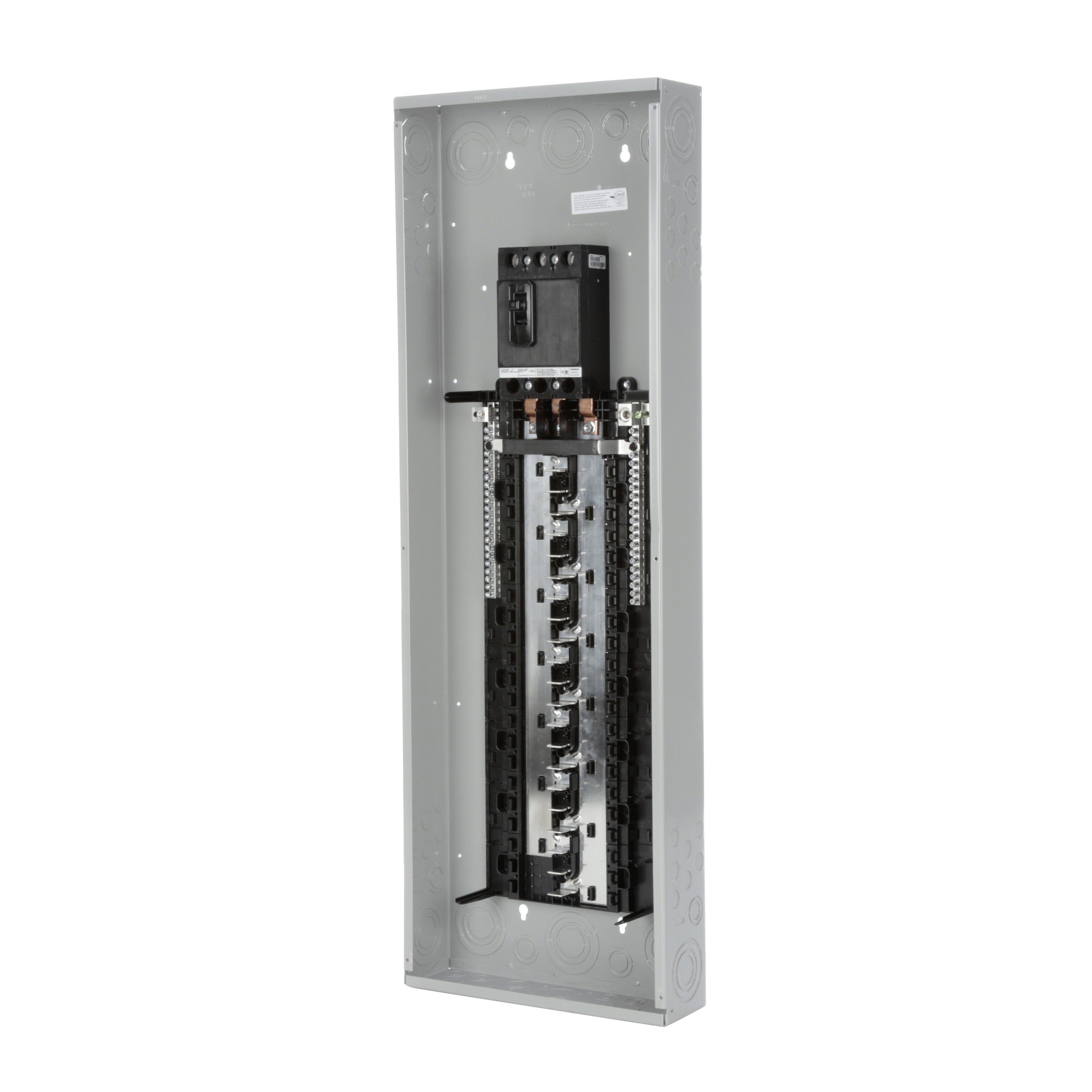

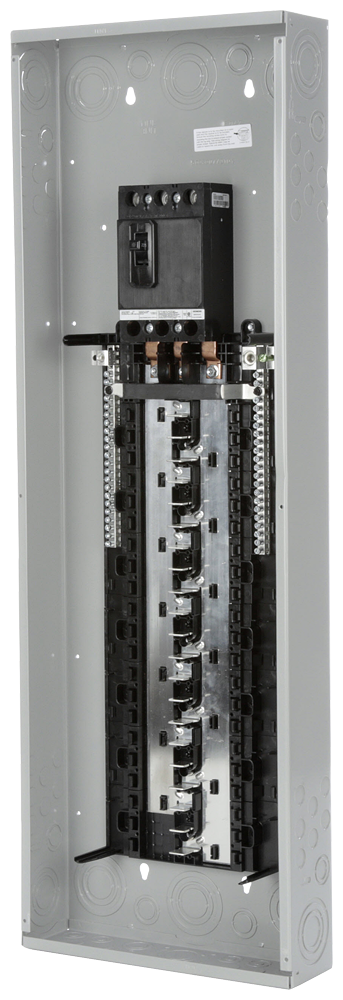

Siemens S4242B3225 ES Series Three Phase Main Breaker Load Center 120/240 VAC 225 A 22 kA Interrupt

Product Description

The Siemens S4242B3225 is a load center designed for a three-phase, four-wire electrical system, allowing for a reliable power distribution solution. It operates at a voltage of 120/240 VAC and supports an amperage rating of 225 A. This model includes a factory-installed main breaker and has a total of forty-two one-inch spaces, supporting up to forty-two circuits.

• Designed for three-phase, four-wire systems.
• Built-in main breaker rated for 225 A.
• 42 spaces for circuit connections.

Product Highlights

This load center is suitable for indoor use with a NEMA Type 1 enclosure, making it ideal for residential and light commercial electrical distribution.

Product Information

Standard Information

• Brand: Siemens
• Catalog Number: S4242B3225

Technical Specifications

• Voltage Rating: 120/240 Volt
• Amperage Rating: 225 Amp
• Enclosure Type: NEMA Type 1
• Interrupt Rating: 22 kA
• Number of Circuits: 42
• Country of Origin: Mexico
• Mounting Type: Flush / Surface
• Bus Rating: Aluminum
