Siemens S4040B1200 ES Series Load Center 200A REPLACED BY SN4040B1200

Product Description

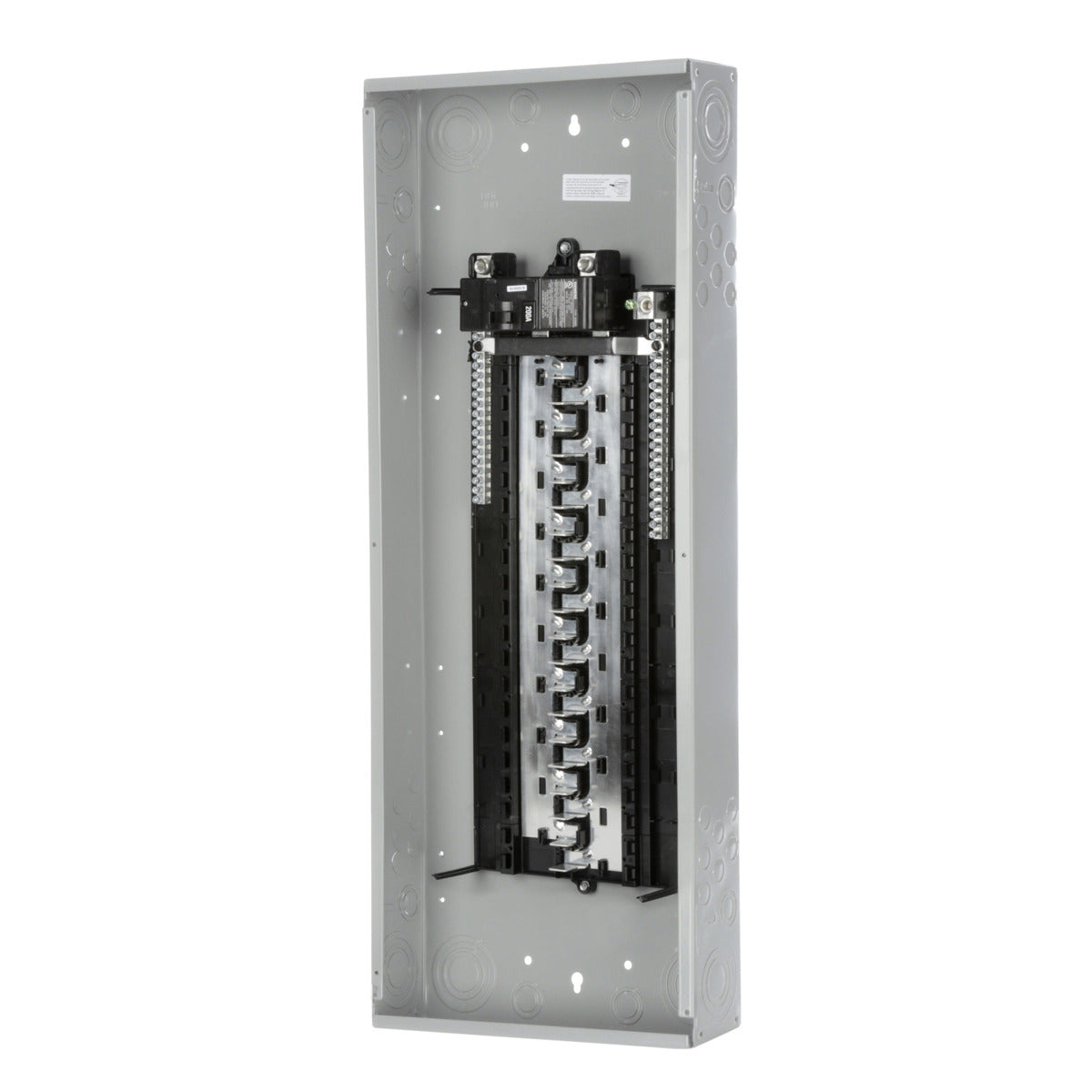

The SIEMENS S4040B1200 is a low voltage ES Series Load Center with a factory-installed main breaker. It features 40 1-inch spaces, allowing a maximum of 40 circuits. This load center is a 1-phase, 3-wire system rated at 120/240V and 200A with a 22kA interrupt rating and a NEMA Type 1 enclosure for indoor use.

• Factory Installed Mainbreaker
• 40 1-Inch Spaces Allowing Max 40 Circuits
• 1-Phase 3-Wire System
• Aluminum Bus
• Gray Trim
• NEMA Type 1 Enclosure For Indoor Use

Product Highlights

This Siemens load center is designed for residential and light commercial electrical distribution. It offers a convertible main breaker and a combination head screw for easy installation.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: S4040B1200
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: S4040B1200
• Manufacturer: Siemens
• Brand: Siemens
• Sub Brand: UL
• Country of Origin: MX
• Made in USA: No
• Amperage Rating: 200
• Application: RESIDENTIALANDLIGHTCOMMERCIALELECTRICDISTRIBUTION
• Enclosure: TYPE1
• Interrupt Rating: 22000 AMPS
• Mounting: Surface
• Phase: 1
• Special Features: GREYTRIM
• UPC: 040892651300
• GTIN: 00040892651300
• Item Type: ESSERIESASSEMBLEDLOADCENTER
• Voltage Rating: 120
• Bus Material: Aluminum
• Circuit Configuration: 1-Phase 3-Wire
• Cover Type: Flush/Surface
• Enclosure Type: NEMA 1, Indoor
• Feed Location: Bottom
• Main Wire Size: 3/0 AWG (Copper), 250 KCMIL (Aluminum) (Main Breaker)
• Maximum Number Of Circuits: 40
• Maximum Number Of Spaces: (40) 1 Inch
• Neutral Type: Bonded, Groundable
• Product UPC: 040892651300
• Type: Main Breaker, Convertible
• Bus_Rating: 200
• Circuit_Breaker_Type: MBK200A
• Standard: UL Listed
• Wiring_Configuration: 3-Wire
• Maximum Amperage (A): 200 A
• Size: 14-1/2 IN Width X 3-7/8 IN Depth X 36 IN Height
