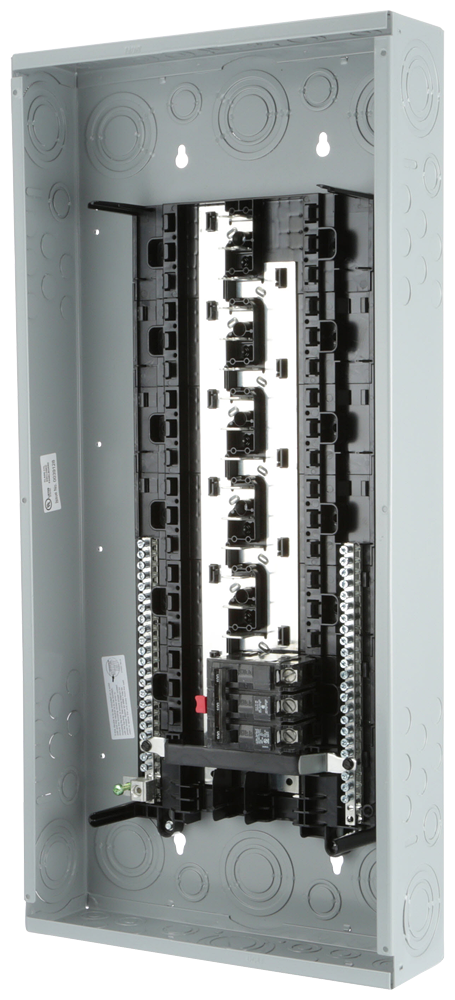

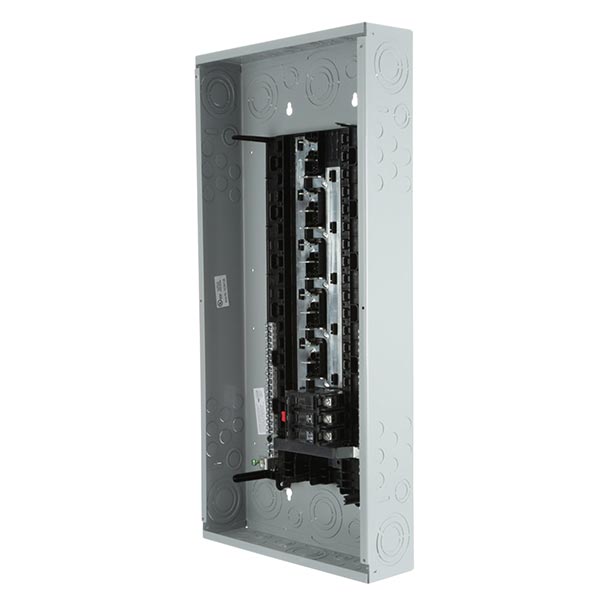

Siemens S3042B3100 120/240/208 VAC 100 Amp 3-Phase 3/4-Wire NEMA 1 Main Breaker Convertible Load Center

Product Description

The Siemens S3042B3100 is a load center designed for power distribution. It features a main breaker factory installed with thirty one-inch spaces, allowing for a maximum of forty-two circuits. This unit supports a three-phase four-wire system, rated at one hundred amperes with voltage options of one hundred twenty/240 volts or one hundred twenty/208 volts. The S3042B3100 is built for durability and reliability in various applications.

• Input voltage: 120/240 or 120/208 VAC
• 30 spaces for circuits
• Enclosure rated NEMA Type 1 for indoor use

Product Highlights

This load center is ideal for residential and light commercial applications. With an interrupt rating of 22 kA and constructed with aluminum bus, it provides both safety and efficiency. The enclosure ensures protection from environmental elements.

Product Information

Standard Information

• Catalog Number: S3042B3100
• Manufacturer: Siemens

Technical Specifications

• Voltage Rating: 120/240 Volt
• Amperage Rating: 100 Amp
• Enclosure Type: NEMA Type 1
• Bus Rating: Aluminum Bus
• Number of Circuits: 42
• Country of Origin: Mexico
• Dimensions: 34.5 inches high x 15.875 inches wide x 5 inches deep
• Number of Phases: 3 Phase
