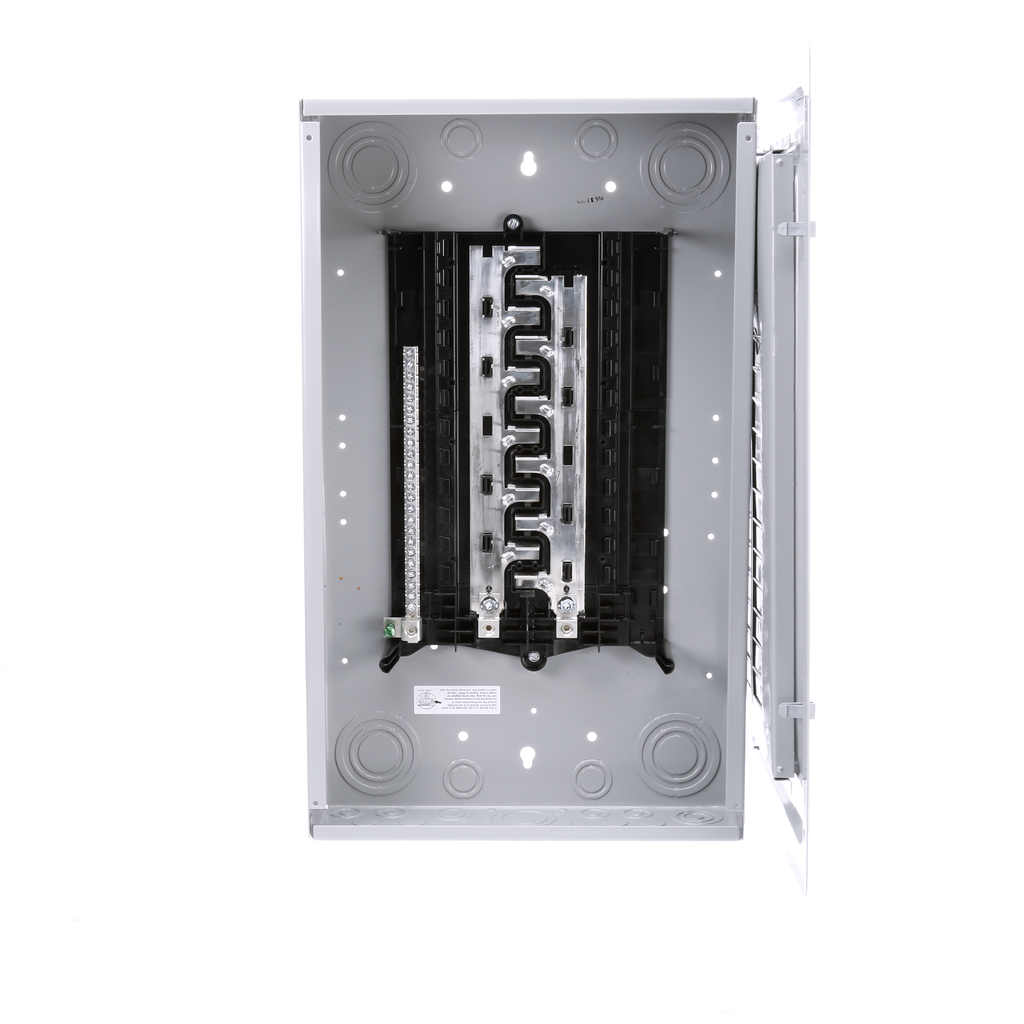

Siemens S2424L1125 120/240 VAC 125 Amp 1-Phase 3-Wire NEMA 1 Main Lug/Non-Convertible Load Center

Product Description

The Siemens S2424L1125 is a low voltage load center designed for residential and light commercial use. This main lug load center supports a three-wire system rated at 120/240 volts and has a total amperage of 125 amps. It allows for up to twenty-four 1-inch spaces for circuit installation. The Siemens load center features an aluminum bus for optimal conductivity and is housed in a Type 1 enclosure suitable for indoor applications.

• 1-phase, 3-wire system with a voltage rating of 120/240 volts
• Supports up to twenty-four circuits
• Features aluminum bus and Type 1 enclosure for indoor use

Product Highlights

This load center is ideal for ensuring safe and reliable power distribution. It is built to handle a maximum interrupt rating of 100 kA, making it a robust choice for various applications.

Product Information

Standard Information

• Catalog Number: S2424L1125
• Brand: Siemens

Technical Specifications

• Voltage Rating: 120/240 volts
• Amperage Rating: 125 amps
• Enclosure Type: Type 1
• Interrupt Rating: 100 kAIC
• Number of Spaces: 24
• Mounting Type: Surface
• Applications: Residential and light commercial electric distribution
• Bus Material: Aluminum
