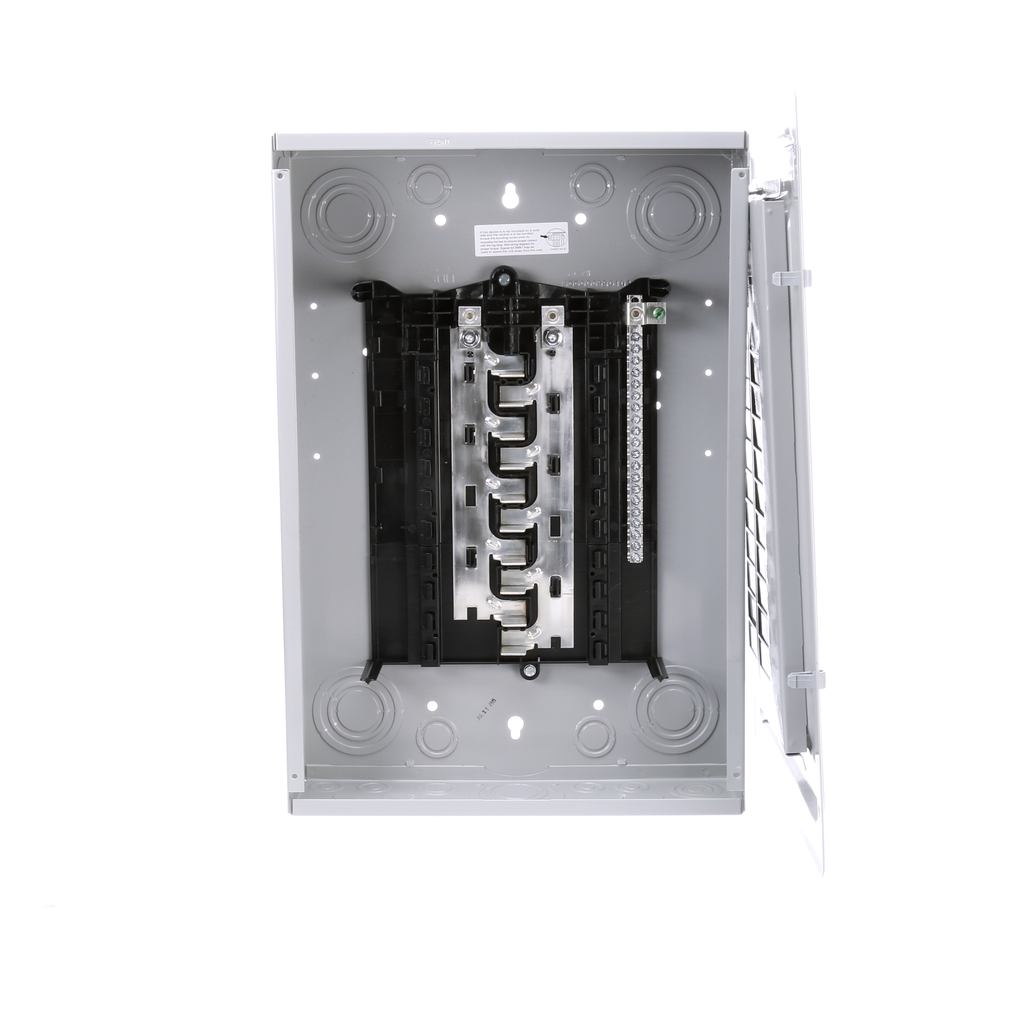

Siemens S2020L1125 120/240 VAC 125 Amp 1-Phase 3-Wire NEMA 1 Main Lug/Non-Convertible Load Center

Product Description

The Siemens S2020L1125 is a low voltage ES series load center with a main lug design. This unit supports twenty one-inch spaces for circuits, allowing for an effective power distribution setup in residential or light commercial applications. The load center operates on a one-phase, three-wire system and is rated for one hundred twenty to two hundred forty volts at one hundred twenty-five amps. This model features an aluminum bus and a NEMA type one enclosure, suitable for indoor use.

• Supports up to 20 circuits with one-inch spaces
• Rated for 120/240 volts and 125 amps
• Aluminum bus for improved conductivity

Product Highlights

The Siemens S2020L1125 load center is designed for both flush and surface mounting options. It has a high interrupt rating of one hundred thousand amps, allowing for optimal performance in various electrical situations.

Product Information

Standard Information

• Brand: Siemens
• MPN: S2020L1125

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 125 Amps
• Number of Circuits: 20
• Type: ES Series
• Enclosure: NEMA Type 1
• Bus Rating: Aluminum
• Interrupt Rating: 100 kA
• Mounting: Flush / Surface
