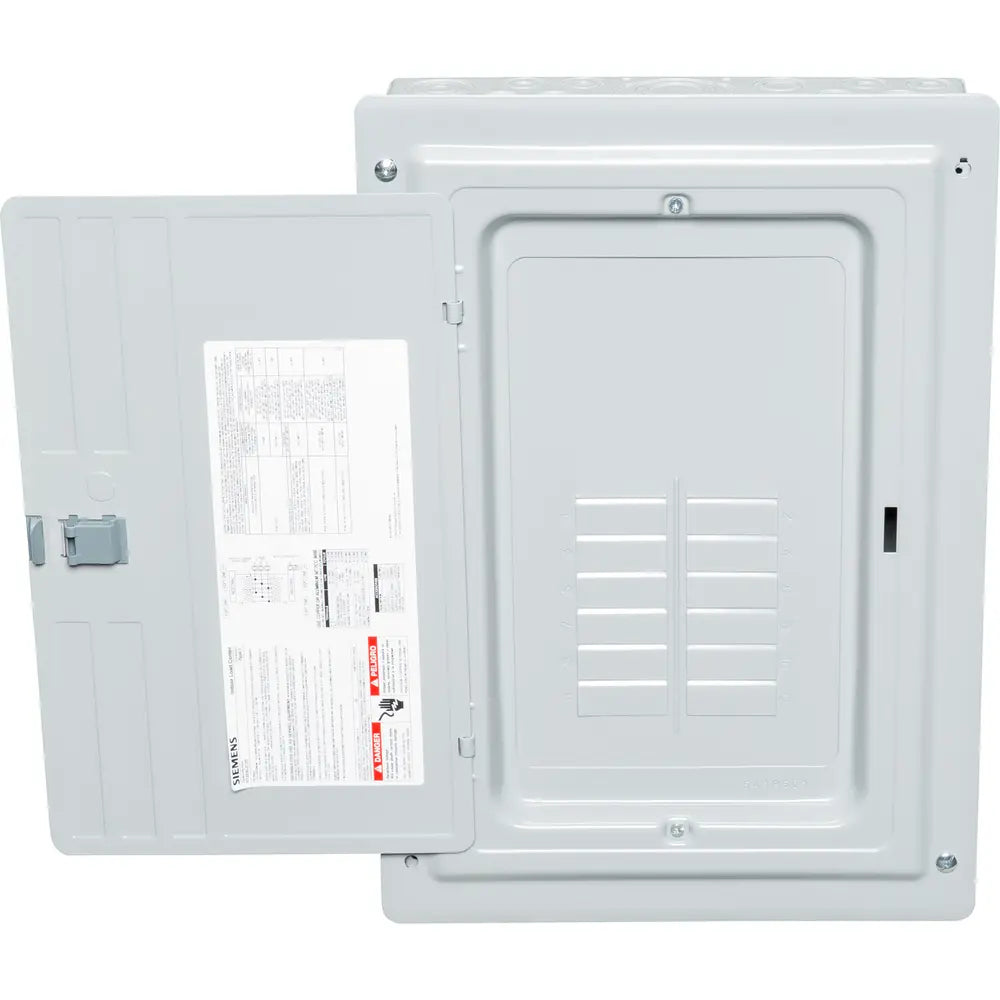

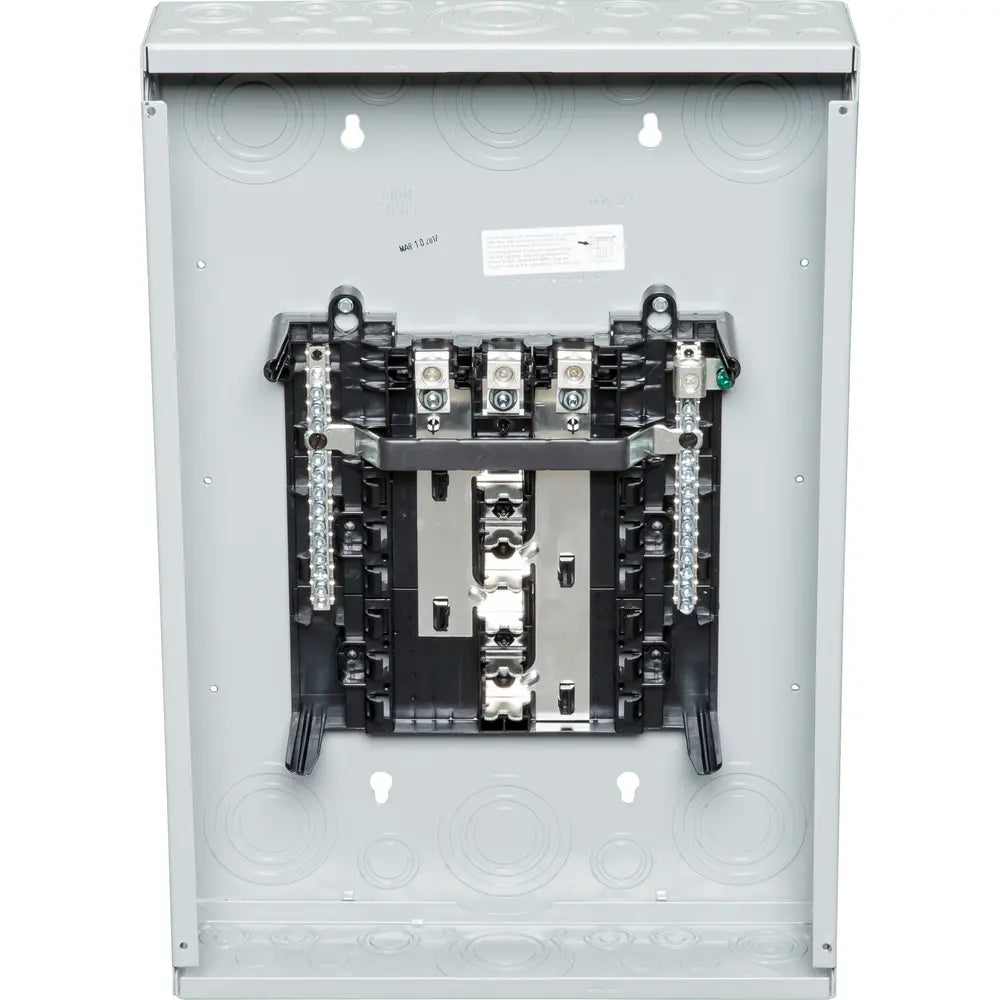

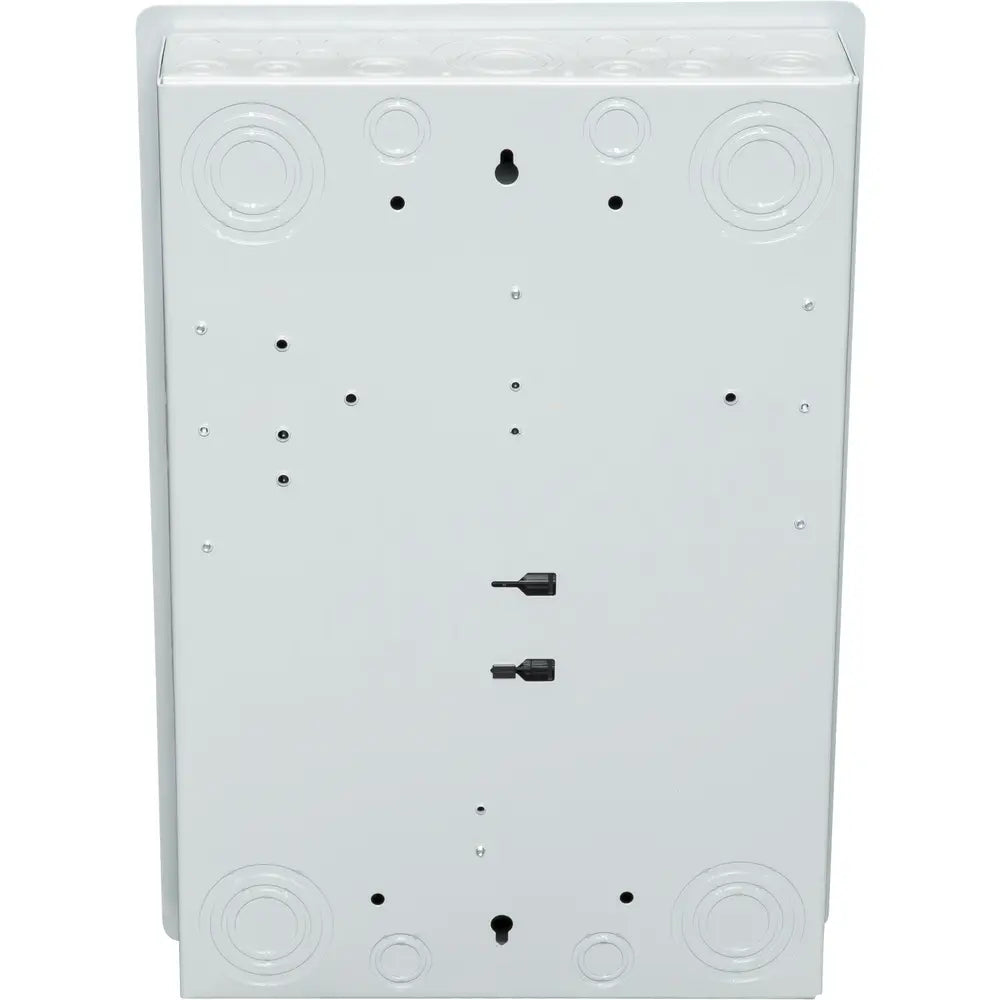

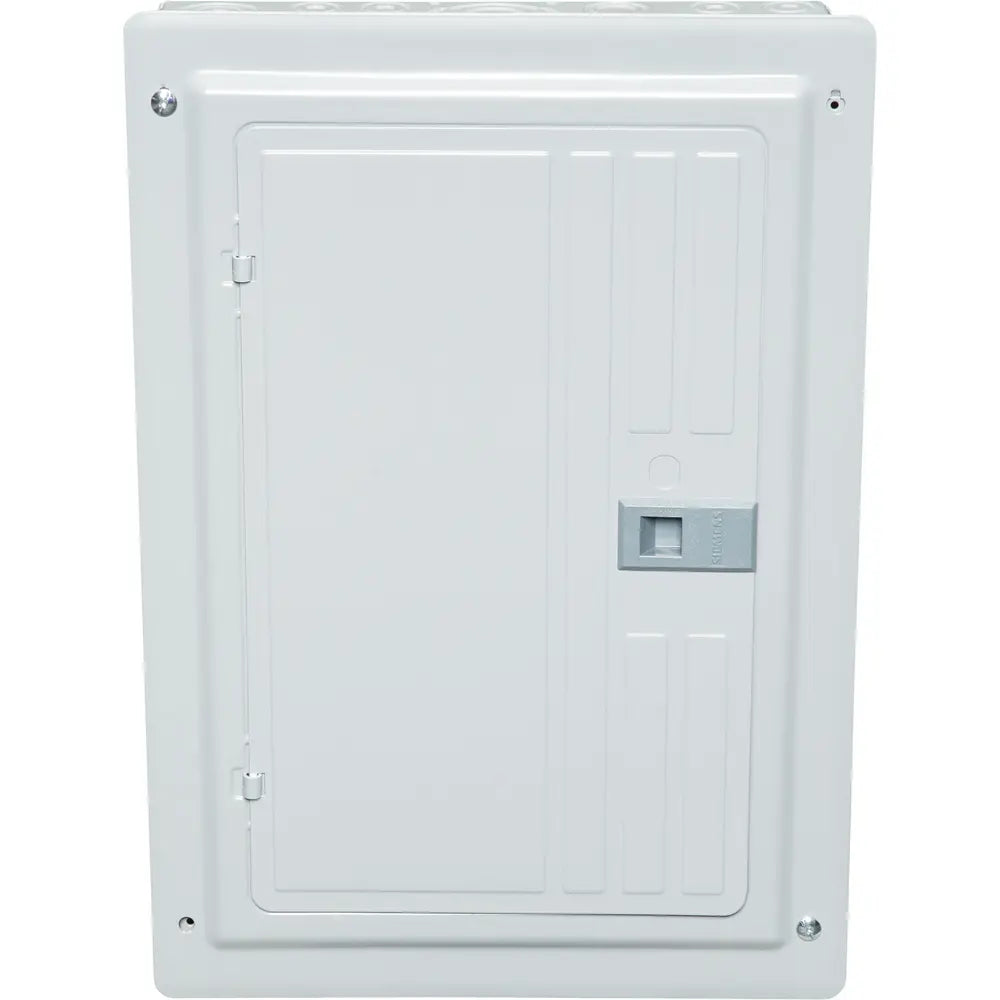

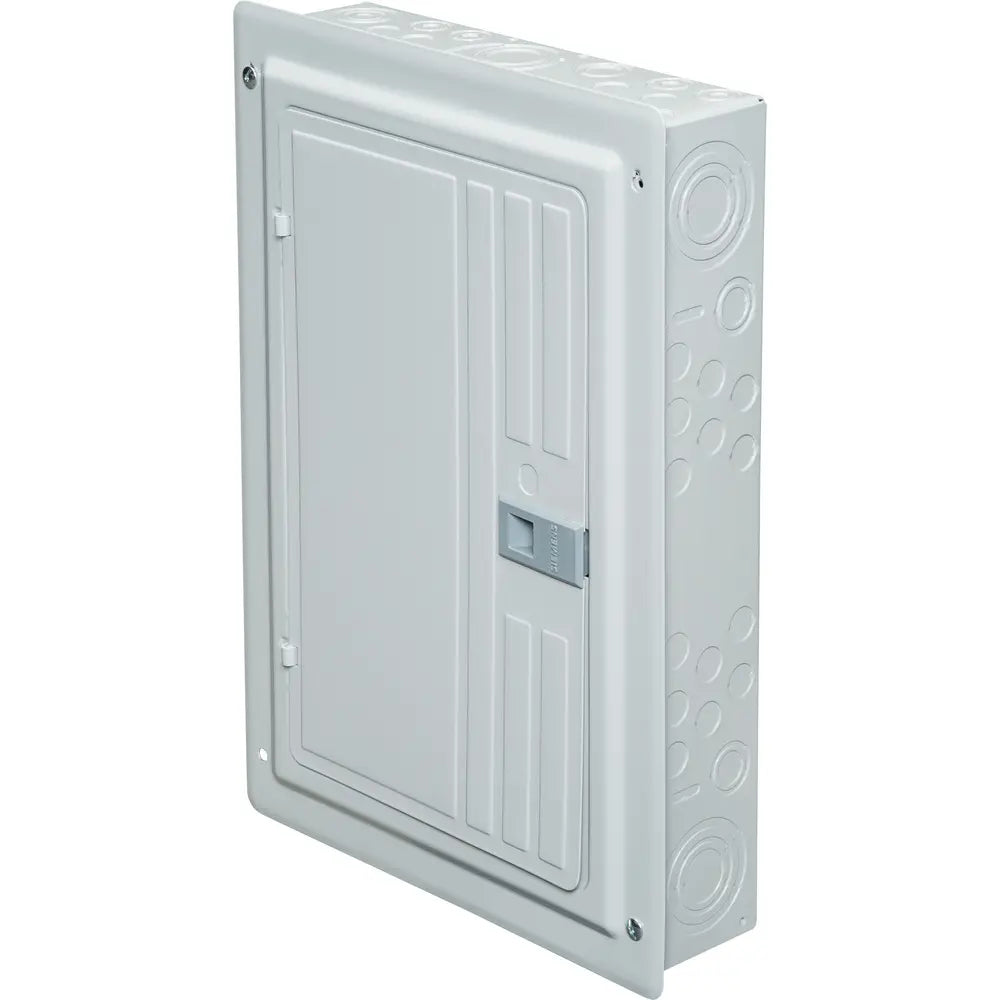

Siemens S1224L3125 Three-Phase Low Voltage ES Series Load Center Main Lug 125A 12 Spaces/24 Circuits Aluminum Bus NEMA 1

Product Description

The Siemens Industry S1224L3125 is a three-phase low voltage load center designed for reliable electrical distribution. This load center features a main lug connection with twelve spaces, allowing installation of up to twenty-four circuits. It operates on a three-phase four-wire system with voltage ratings of one hundred twenty over two hundred forty VAC and one hundred twenty over two hundred eight VAC at one hundred twenty-five amperes. The interrupted rating is one hundred kA.

• Aluminum bus construction
• NEMA Type 1 enclosure for indoor use
• Compact dimensions for efficient installation

Product Highlights

This load center is suitable for residential and commercial applications, providing essential power distribution solutions in a safe and effective manner.

Product Information

Standard Information

• Brand: Siemens Industry
• Manufacturer: Siemens Industry

Technical Specifications

• UPC: 662643925463
• Type: Load Centers
• Amperage Rating: 125 Amperes
• Voltage Rating: 120/240 VAC, 120/208 VAC
• Interrupt Rating: 100 kAIC
• Phase: 3-Phase
• Wiring Configuration: 4-Wire
• NEMA Rating: NEMA 1
• Width: 14.3 Inches
• Depth: 3.88 Inches
• Height: 25.3 Inches
• Weight: 21.1 Pounds
• Mounting: Surface
• Country of Origin: MX
