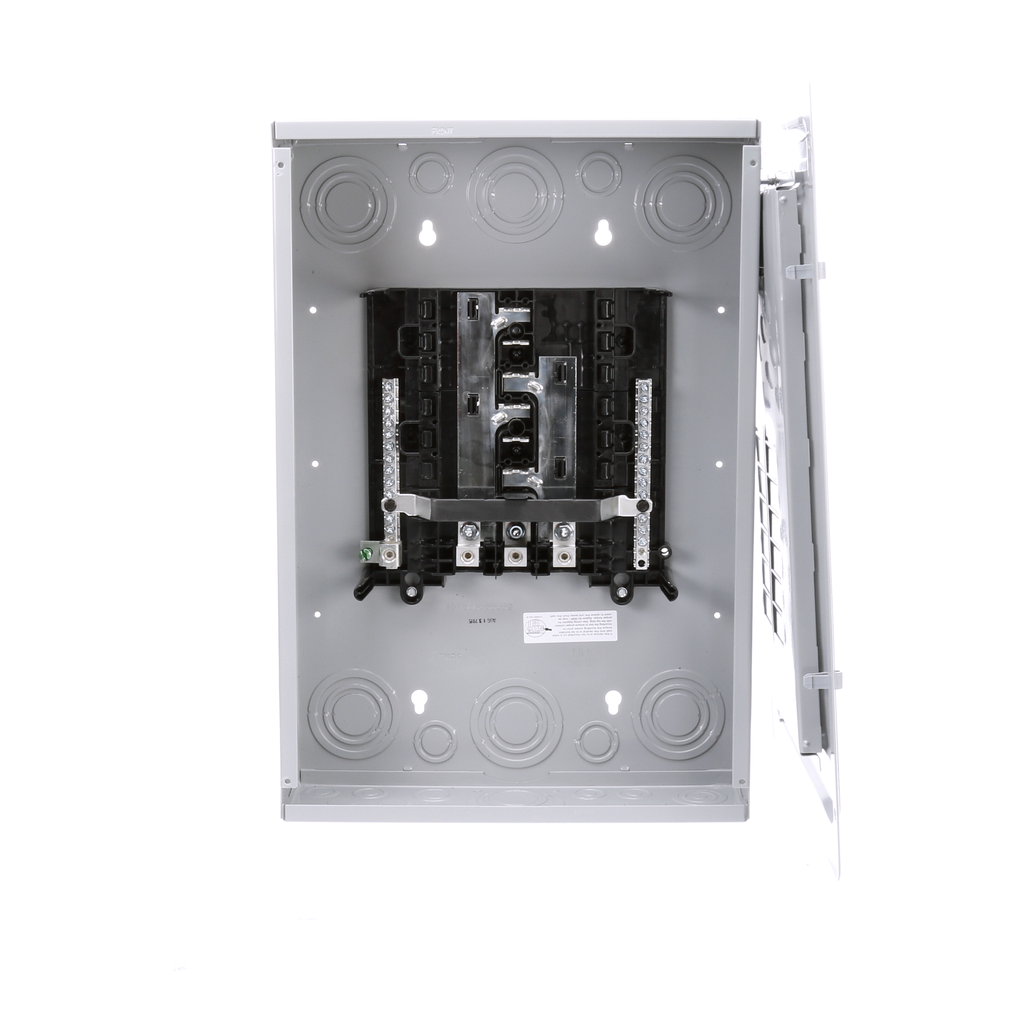

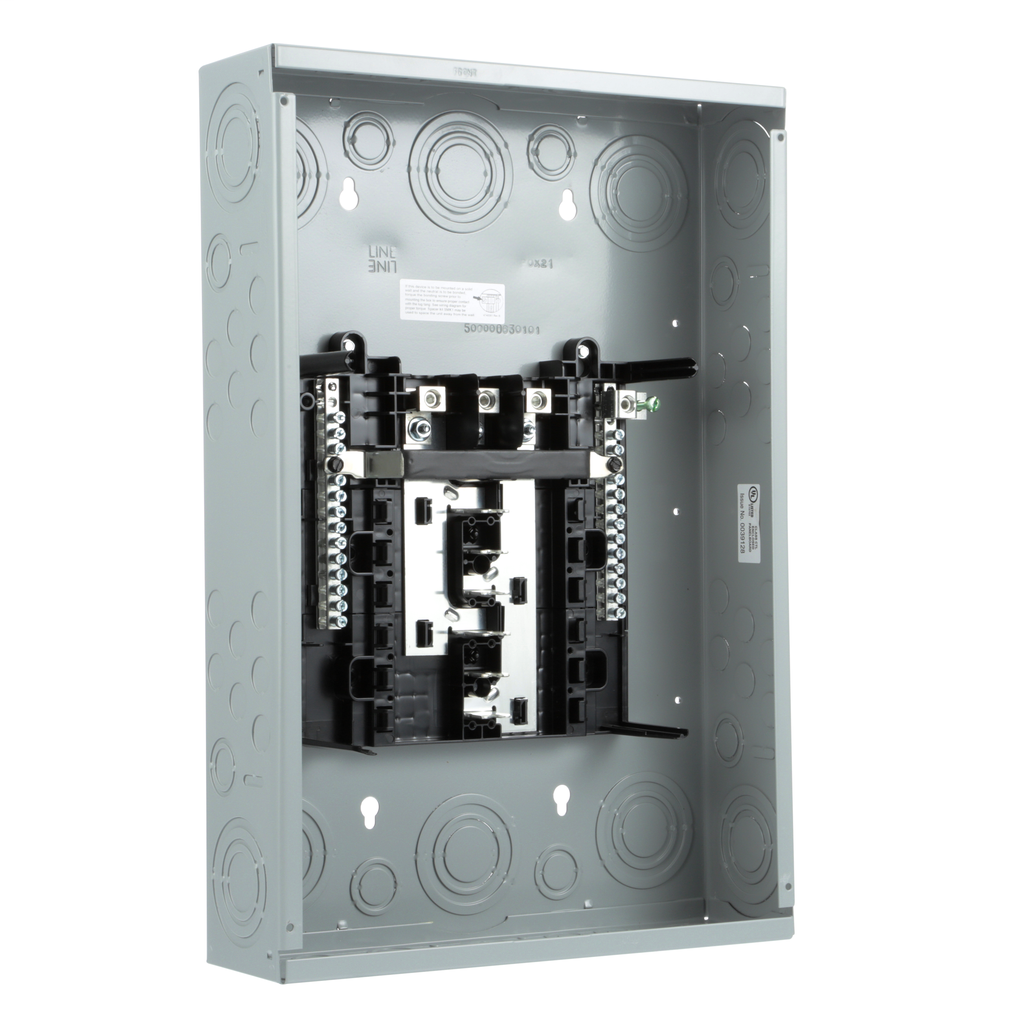

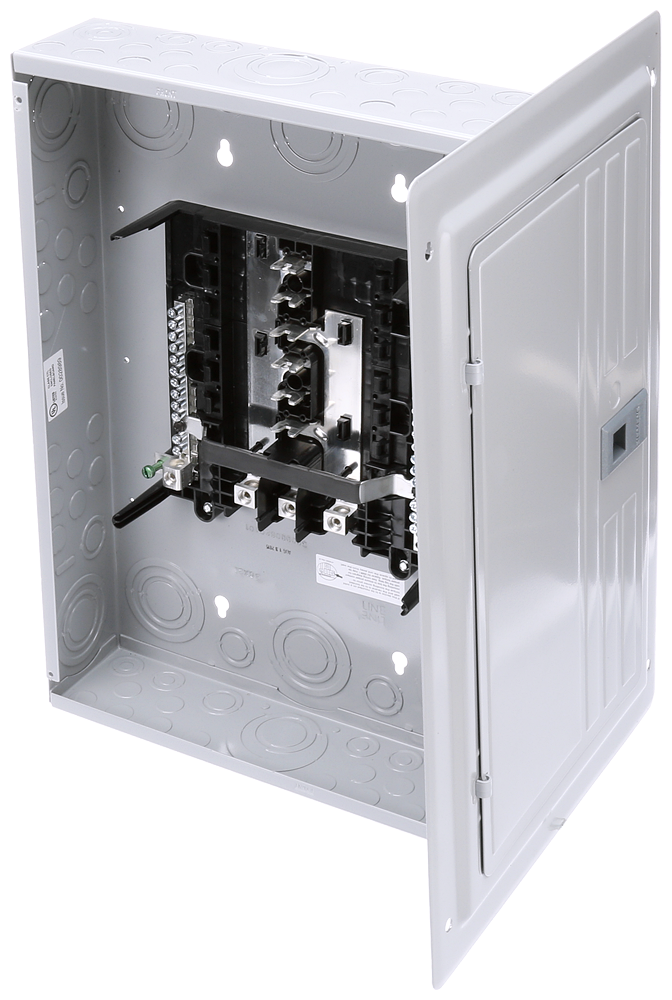

Siemens S1224L3125 Main Lug Load Center 125 Amp 3-Phase 3/4-Wire NEMA 1

Product Description

Siemens S1224L3125 is a main lug load center designed for three-phase electrical systems. Rated at one hundred twenty-five amps, it supports 120/240 and 120/208 volt configurations. This load center is built for efficiency with twelve one-inch spaces allowing for a maximum of twenty-four circuits.

• Three-phase, four-wire system
• Aluminum bus for durability
• NEMA type 1 enclosure suited for indoor applications

Product Highlights

Ideal for residential and light commercial electric distribution. Its design includes a robust aluminum bus and is equipped with a special interrupt rating of one hundred kAIC.

Product Information

Standard Information

• Brand: Siemens
• MPN: S1224L3125

Technical Specifications

• Voltage Rating: 120/240 Volt
• Amperage Rating: 125 Amp
• Enclosure Type: NEMA Type 1
• Bus Material: Aluminum
• Interrupt Rating: 100 kAIC
• Number of Spaces: 12
• Number of Circuits: 24
• Country of Origin: Mexico
