Siemens RDS120-B smart thermostat RDS120.B

Product Description

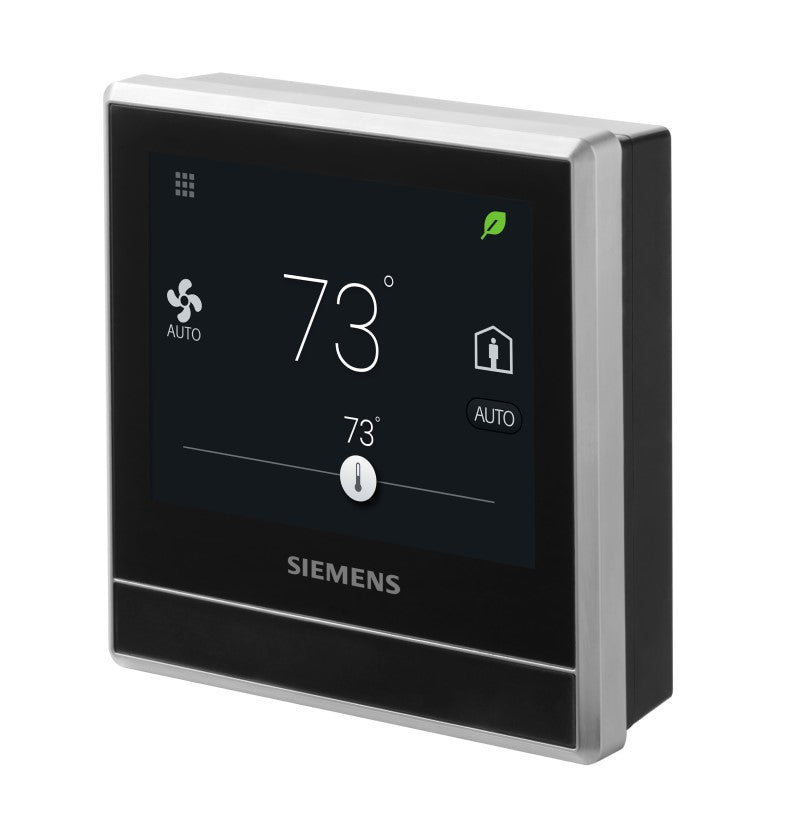

Siemens RDS120-B is a smart thermostat with an integrated temperature sensor designed for temperature control applications. The device supports BACnet communications and provides remote operation and monitoring via the Siemens Comfort Cloud and mobile apps. It includes a 3.5 inch color touch LCD with backlight, built-in environmental sensors, programmable daily schedules, and manual Home/Away/OFF modes for residential and light commercial HVAC control.

• BACnet-enabled connectivity with Siemens Comfort Cloud and iOS/Android app support for remote monitoring
• Built-in temperature, VOC, humidity, and occupancy sensors; supports window/door contact inputs
• 3.5" color touch LCD, programmable individual day schedules, and controls for conventional HVAC and heat pump systems

Product Highlights

BACnet smart thermostat with integrated sensors, 3.5" touch display, cloud and mobile connectivity

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: RDS120-B
• Country of Origin: US

Technical Specifications

• Brand: Siemens
• Model / MPN: RDS120-B
• Product Type: Smart thermostat
• Product Group: Thermostats (temperature controller with sensor)
• Protocol: BACnet
• Display: 3.5" color LCD touch, backlit, auto-dimming
• Sensors: Built-in temperature, VOC, humidity, and occupancy sensors; supports window/door contacts
• Controls: Conventional HVAC up to 3H/2C; heat pumps up to 4H/2C
• Connectivity: BACnet enabled; remote operation and monitoring via Siemens Comfort Cloud
• Mobile Apps: iOS and Android
• Timer / Programs: Individual time program for each day of the week
• Manual Modes: Manual switchover between Home, Away and OFF
• Energy Feature: One-touch green leaf button to maximize energy efficiency
• Weight: 1.00 lb
• Country of Origin: US
• Datasheet Document No: A6V10807603
• Datasheet Date: 2021-11-23
