Siemens R1632L1125CU Riser Lc Ml 16S/32 125A

Product Description

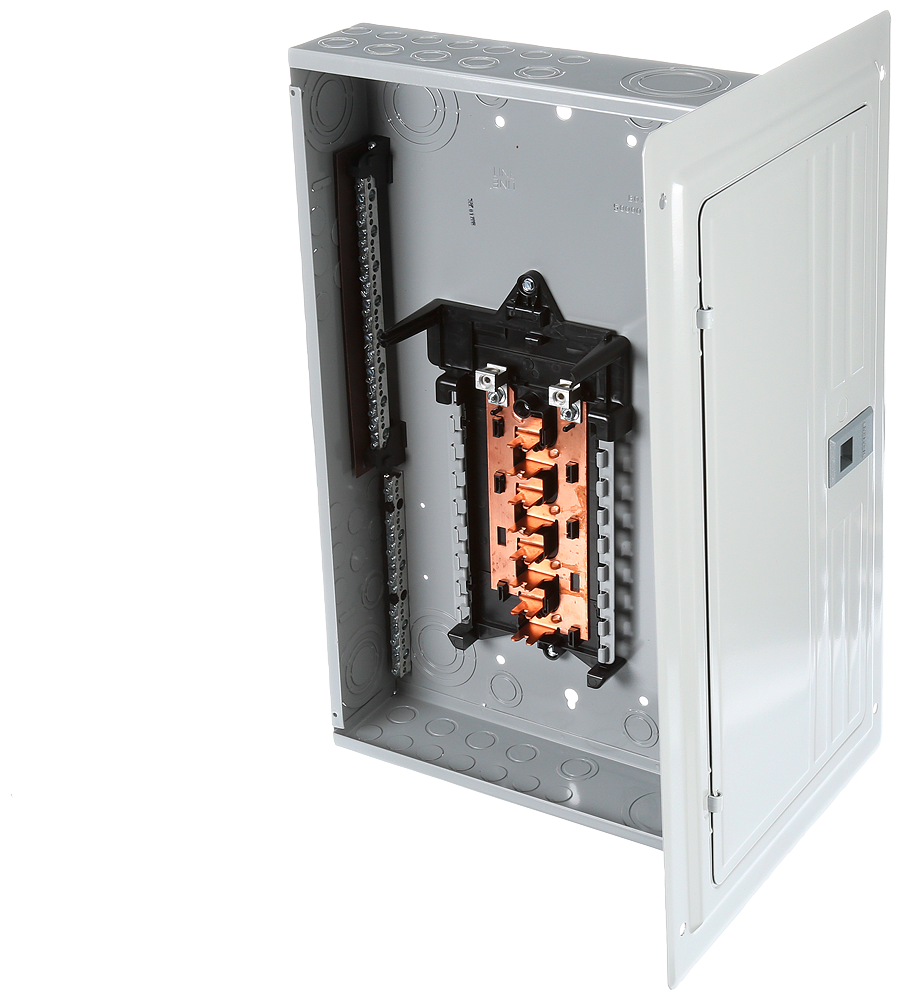

The Siemens R1632L1125CU is a low voltage riser load center. This main lug load center has 16 1-inch spaces allowing a maximum of 32 circuits. It is a 1-phase 3-wire system rated at 120/240V with a 125A and 100kA interrupt rating. Ideal for residential and light commercial electrical distribution.

• Copper bus
• Interchangeable main
• Gray trim

Product Highlights

Low voltage riser load center with 16 spaces, accommodating up to 32 circuits. Features a copper bus and a 125A current rating.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: R1632L1125CU
• Country of Origin: Mexico

Technical Specifications

• GTiN: 00783087908208
• Type: RISERPANELASSEMBLEDLOADCENTER
• Brand: Siemens
• Width: 16.000 in
• Height: 5 Inch
• Length: 19 Inch
• Voltage: 120 Volt
• Amperage: 125 Amp
• Enclosure: TYPE1
• Sub Brand: UL
• Bus Rating: COPPERBUS
• Applications: RESIDENTIALANDLIGHTCOMMERCIALELECTRICDISTRIBUTION
• Mounting Type: FLUSH / SURFACE
• Interrupt Rating: 100 kAIC
• Number of Phases: 1 Phase
• Number of Spaces: 16
• Country of Origin: Mexico
• Manufacturer: SIEMENS
• Current Rating: 125 A
• Manufacturer Part Number: R1632L1125CU
• Series: R Series
• UPC Code: 783087908208
• Overview: LC 16S/32C 125A CU RISER
• Primary brand: Siemens
• Order code / Manufacturer SKU: US2ːR1632L1125CU
• Manufacturer product status: Commercialized
• Equivalent to: US2ːR1632L1125CU
• Manufacturer description: RISER LC ML 16S/32C 1PH 125A CU
