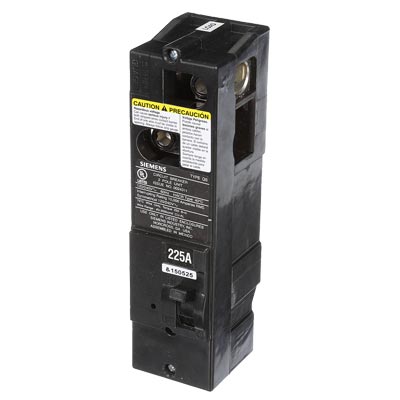

Siemens QS2225 BREAKER 225A 2P 120/240V

Product Description

The Siemens QS2225 is a circuit breaker that operates at a voltage rating of one hundred twenty to two hundred forty volts and has a current rating of two hundred twenty-five amps. This device is designed to provide circuit protection for load centers, feeders, and smaller breakers. The Type QS is made per UL 489 standards, ensuring reliable performance in electrical distribution applications.

• Voltage rating: 120/240V
• Two-pole design
• Thermal magnetic trip type

Product Highlights

This circuit breaker is suitable for residential and commercial applications in electrical distribution systems.

Product Information

Standard Information

• Catalog Number: QS2225
• Brand: Siemens

Technical Specifications

• Amperage Rating: 225 A
• Voltage Rating: 120/240 VAC
• Interrupt Rating: 10 kA
• Number of Poles: 2
• Trip Type: Thermal Magnetic
• Country of Origin: Mexico
• Dimensions: 9 in (length) x 4.1 in (width) x 2.7 in (height)
• Weight: 2.2 lb
• Connection Type: Plug-In
