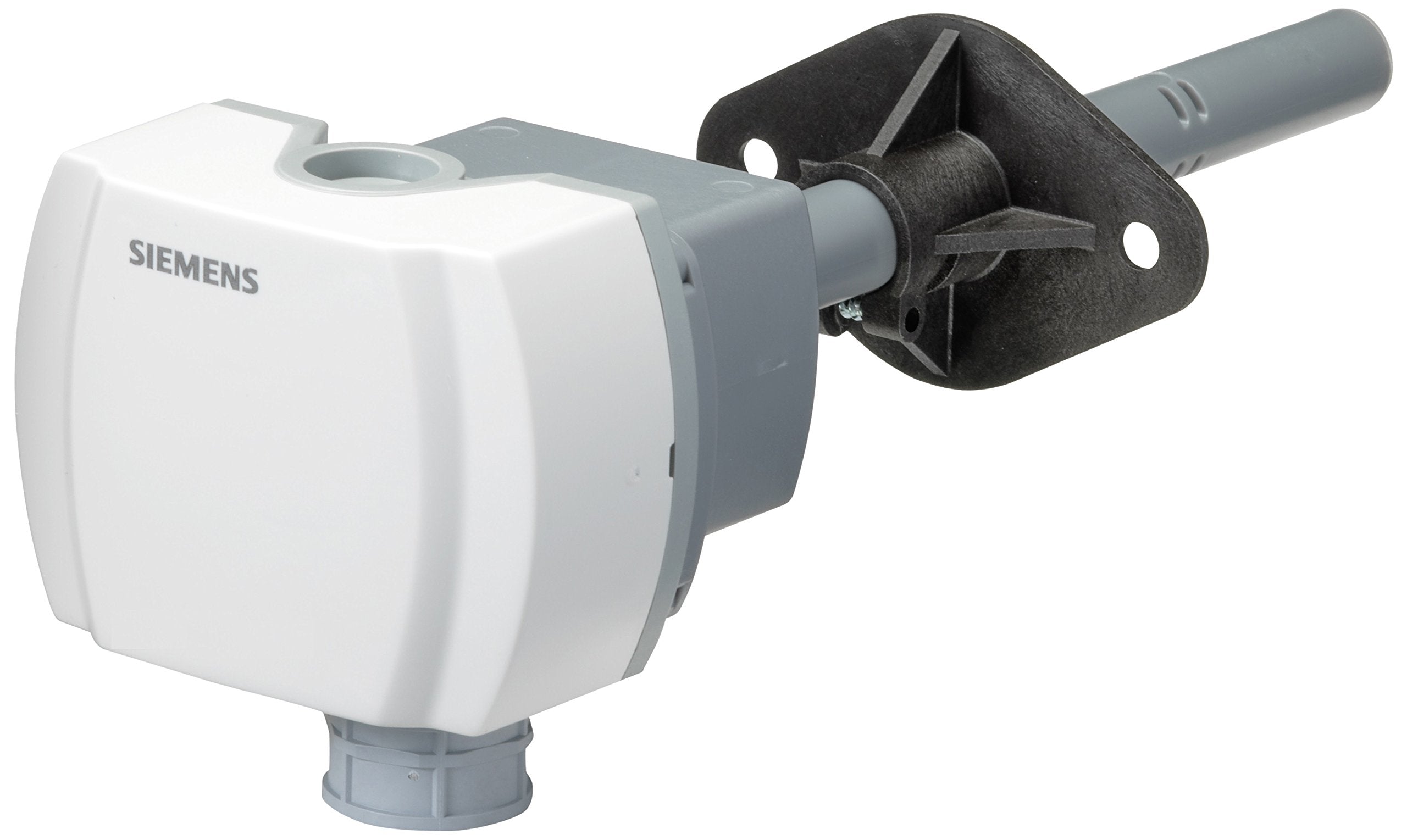

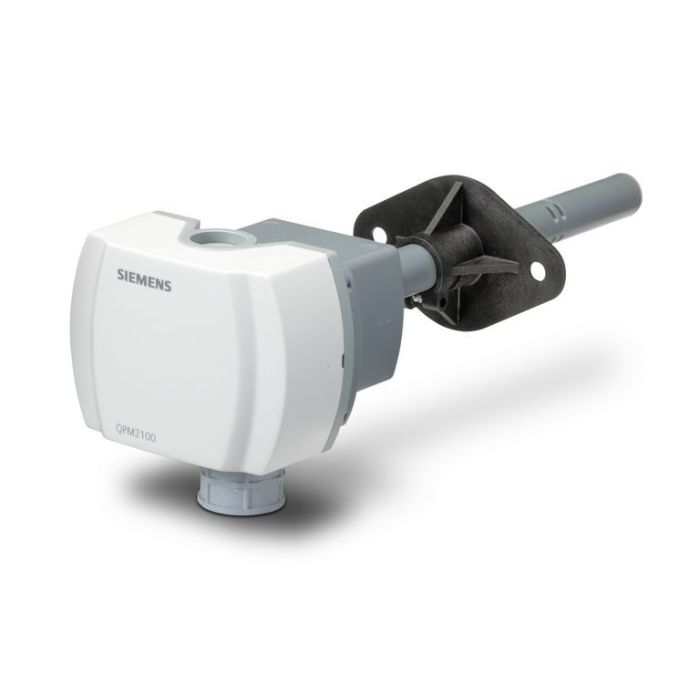

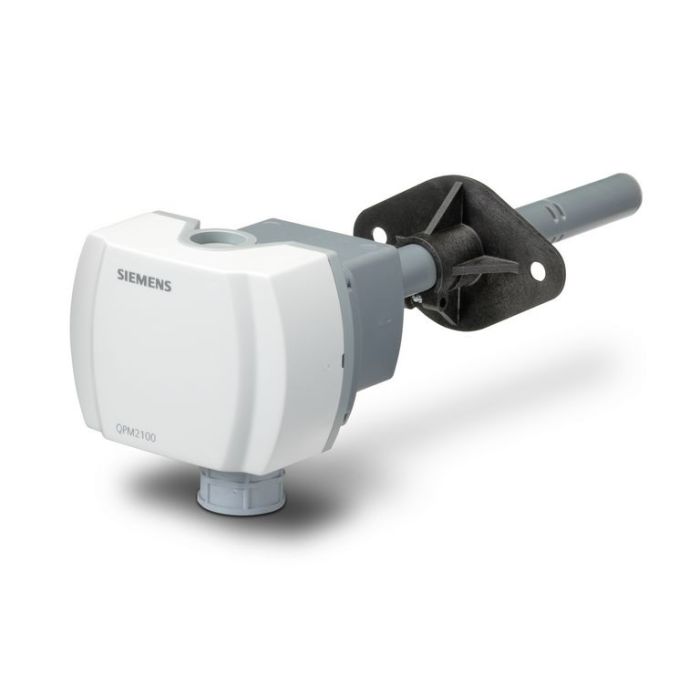

Siemens QPM2102 Duct CO2 and VOC Sensor 24 VAC/15-35 VDC (70-135 mm)

Product Description

Siemens QPM2102 is a duct-mounted CO2 and VOC sensor that measures CO2 by NDIR and reports VOC levels for duct air-quality monitoring. It provides selectable analog outputs (0-5 V, 0-10 V, or 4-20 mA), operates from 24 VAC or 15-35 VDC, and includes a tubular immersion length adjustable from 70 to 135 mm for duct installation. Typical applications include HVAC demand control ventilation and indoor air-quality monitoring.

• NDIR CO2 measurement range 0 to 2000 ppm; VOC measurement up to 0 to 100%
• Selectable outputs: 0-5 VDC, 0-10 VDC, or 4-20 mA; output switches to reflect higher measured value
• Operates on 24 VAC or 15-35 VDC; immersion length 70-135 mm; terminal-strip electrical connection

Product Highlights

Duct-mounted CO2 and VOC sensor with NDIR CO2, selectable analog outputs, and adjustable immersion length.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: QPM2102

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: QPM2102
• Model: QPM2102
• Sensor Type: Duct CO2 and VOC sensor
• Measurement Method: NDIR (CO2)
• Measuring Range (CO2): 0 to 2000 ppm
• Measuring Range (VOC): 0 to 100% (VOC index/relative level - see note)
• VOC Time Constants: Slow (R1), Normal (R2), Fast (R3)
• Input Voltage: 24 VAC or 15-35 VDC
• Power Consumption: 2 VA
• Output Signal Options: 0-5 VDC, 0-10 VDC, or 4-20 mA (selectable/adjustable)
• Output Voltage Signal Range: 0 to 10 V
• Output Current Range: 4 to 20 mA
• Mounting Type: Duct mount
• Immersion Length: 70-135 mm
• Enclosure Material: Plastic
• Connections: Terminal strip
• Dimensions (W x H x D): 80 x 88 x 243 mm (3.15 x 3.46 x 9.57 inches)
• Weight: 272 g (0.6 lb)
• Permissible Air Velocity: Up to 10 m/s
• Operating Temperature: -5 to 45 °C
• Safety Note: Not suited for safety-related applications
• Product Code (GTIN/EAN): 7612914093301
